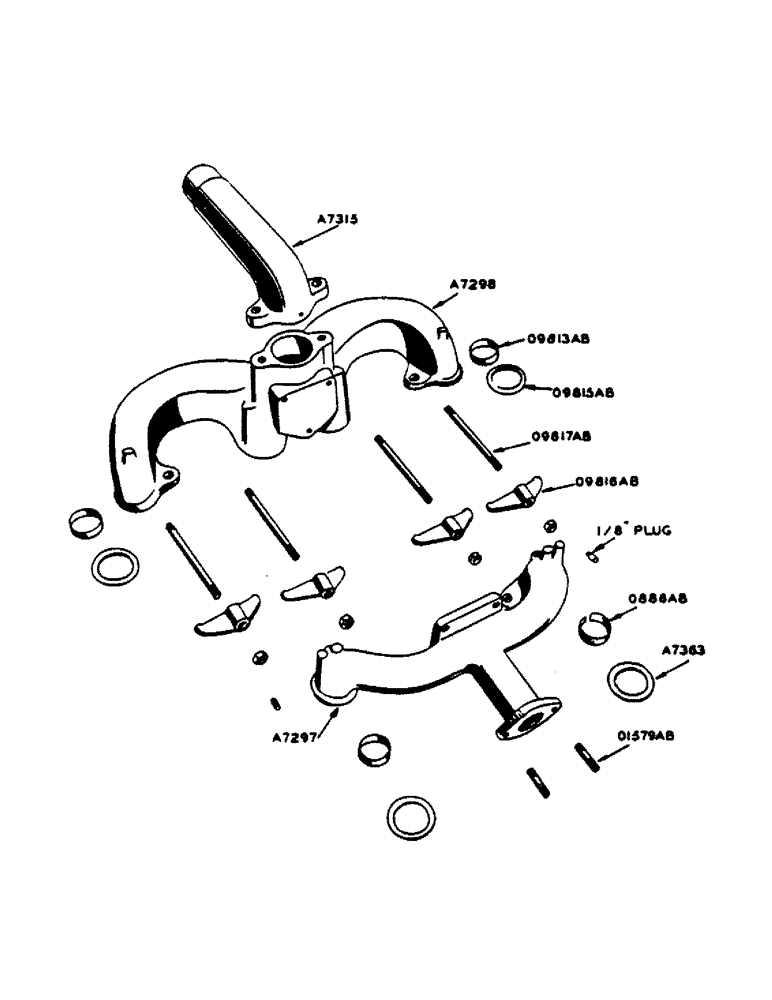

Запчасти Case IH 400-SERIES (017) - POWRDYNE GAS ENGINE, GASOLENE AND LP GAS MANIFOLDS (02) - ENGINE

A7297

MANIFOLD - intake, gasoline (See A8495)

1шт.

3/8" x 1" N.C. hex. hd. cap screw

3шт.

1/8" sq. hd. pipe plug

2шт.

A7298

MANIFOLD - exhaust, gasolene (See 6462A)

1шт.

A7315

ELBOW - exhaust

1шт.

1/2" x 1-1/4" N.C. hex. bolt

2шт.

A7363

MANIFOLD GASKET

- intake manifold

2шт.

A8495

MANIFOLD - intake (for LP-gas tractors) (See A7297)

1шт.

3/8" x 1-3/4" N.F. hex bolt with hex. nut and lockwasher

2шт.

1/8" sq. hd. pipe plug

2шт.

6462A

MANIFOLD - exhaust (for LP-gas tractors) (See A7298)

1шт.

O886AB

X

FERRULE - intake manifold

2шт.

O889AB1

X

GASKET - intake, Serial Range: manifold-carburetor

1шт.

O1579AB

STUD - carburetor

2шт.

3/8" N.F. hex. nut and lockwasher

2шт.

O9813AB

X

FERRULE - exhaust manifold

4шт.

O9815AB

X

GASKET - exhaust manifold

4шт.

O9816AB

CLAMP - intake and exhaust manifold

4шт.

O9817AB

X

STUD - intake and exhaust manifold

4шт.

7/16" hex. nut, light, N.F. thrd

4шт.
