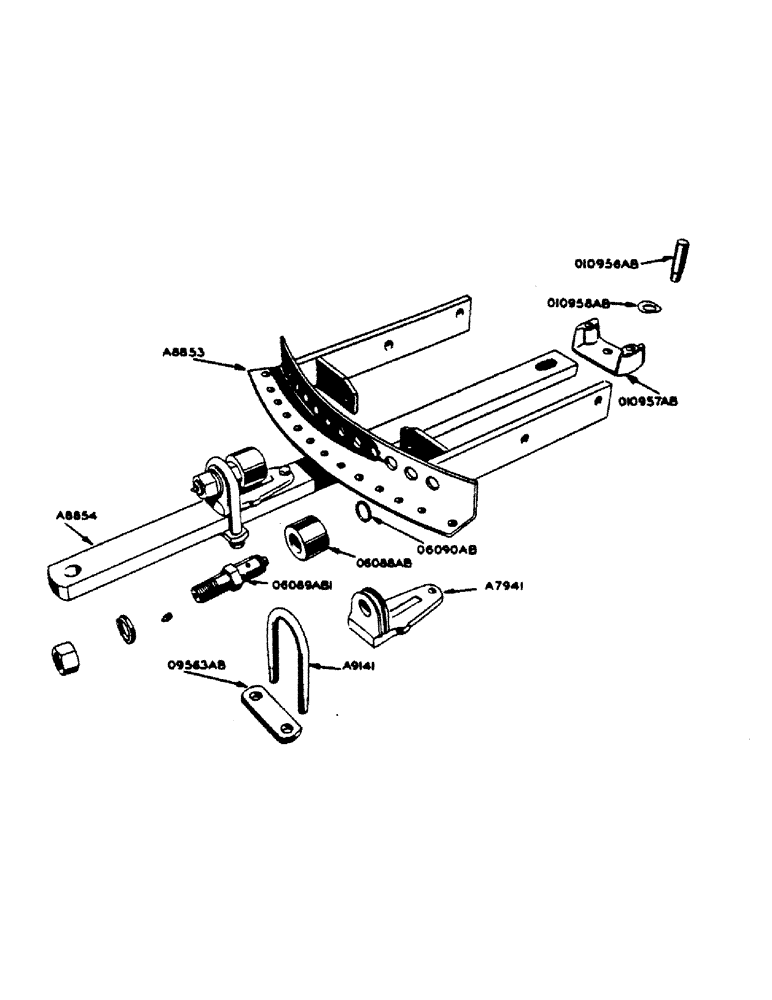

Запчасти Case IH 400-SERIES (194) - DRAW BAR FOR ORCHARD TRACTORS (09) - CHASSIS

A7941

BRACKET

- draw bar roller

1шт.

1/2" x 2-1/2" N.F. hex. bolt with hex. nut and lockwasher

1шт.

A8853

SUPPORT - draw bar

1шт.

3/4" x 2" N.C. hex. bolt with lockwasher

4шт.

A8854

DRAW BAR - complete (consists of draw bar with A7941 bracket, A9141 "U" bolt, 06088AB roller, 06089ABA bolt, 06090AB snap ring, and 09563AB strap)

1шт.

A9141

"U" BOLT - draw bar guide bracket

1шт.

5/8" N.F. hex. nut

2шт.

5/8" std. lockwasher

2шт.

O6088AB

X

ROLLER - draw bar

1шт.

O6089AB1

X

BOLT - draw bar roller

1шт.

1/8" straight Lincoln fitting no. 5000

1шт.

1-1/8" N.F. hex. nut

1шт.

1-1/8" std. lockwasher

1шт.

O6090AB

X

SNAP RING - roller bolt

1шт.

O9563AB

X

STRAP - draw bar guide brack "U" bolt

1шт.

O10956AB

X

PIN - draw bar pivot

1шт.

O10957AB

BRACKET - draw bar pivot pin

1шт.

3/4" x 3" N.C. hex. bolt with lockwasher

2шт.

O10958AB

WASHER - spring, draw bar

1шт.
