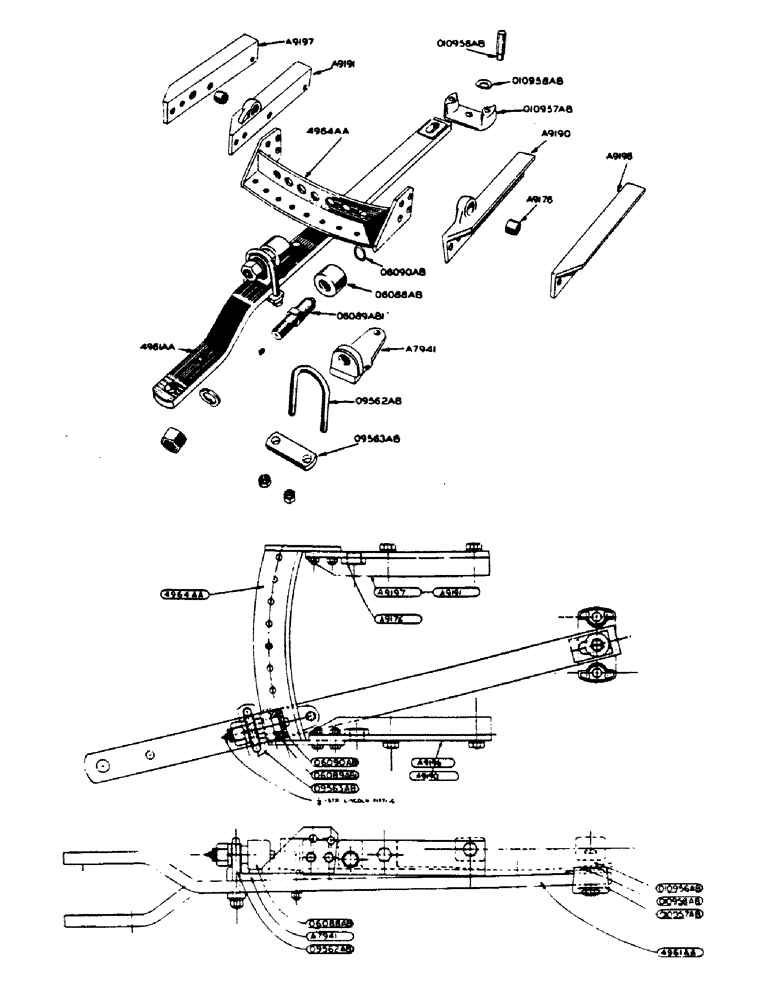

Запчасти Case IH 400-SERIES (192) - DRAW BAR FOR ALL BUT ORCHARD TRACTORS (09) - CHASSIS

A7324

SUPPORT (use A9196)

1шт.

A7325

SUPPORT (use A9197)

1шт.

A7941

BRACKET

- draw bar roller

1шт.

1/2" x 2-1/4" N.F. hex. bolt with hex. nut and lockwasher

1шт.

A9176

BUSHING

(1.361" O.D.) - draft arm pivot pin (used with A9174, A9175, A9186, A9187, A9192 and A9193 brackets) (see 09230AB)

4шт.

A9181

SPARE PART

SUPPORT - draw bar, with 2 - A9176 bushings (for high clearance models)

1шт.

A9190

SUPPORT - draw bar, R.H., with A9176 bushing (for general purpose tractors)

1шт.

3/4" x 2-1/2" N.C. hex. bolt with lockwasher

2шт.

A9191

SUPPORT - draw bar, L.H., with A9176 bushing (for general purpose tractors)

1шт.

3/4" x 2-1/2" N.C. hex., bolt with lockwasher

2шт.

A9196

SUPPORT - draw bar, R.H., with A9176 bushing (for std. 4-wheel tractors)

1шт.

3/4" x 1-3/4" N.C. hex. bolt with lockwasher

2шт.

A9197

SUPPORT - draw bar, L.H., with A9176 bushing (for std. 4-wheel tractors)

1шт.

3/4" x 1-3/4" N.C. hex. bolt with lockwasher

2шт.

O6088AB

X

ROLLER - draw bar

1шт.

O6089AB1

X

BOLT - draw bar roller

1шт.

1/8" straight Lincoln fitting no. 5000

1шт.

1-1/8" N.F. hex. nut

1шт.

1-1/8" std. lockwasher

1шт.

O6090AB

X

SNAP RING - roller bolt

1шт.

O9230AB

BUSHING (1-1/4" O.D.) - draft arm pivot pin (used with A7162, A7163, 6520A and 6521A brackets) (see A9176)

4шт.

O9562AB

"U" BOLT - guide bracket

1шт.

5/8" N.F. hex. nut

2шт.

5/8" std. lockwasher

2шт.

O9563AB

X

STRAP - guide bracket "U" bolt

1шт.

O10956AB

X

PIN - draw bar pivot

1шт.

O10957AB

BRACKET - draw bar pivot pin

1шт.

3/4" x 3" N.C. hex. bolt with lockwasher

2шт.

O10958AB

WASHER - spring, draw bar

1шт.

4961AA

DRAW BAR - complete (consists of draw bar with 1 - A7941, 1 - 0688AB, 1 - 06089AB1, 1 - 06090AB, 1 - 09562AB and 1 - 09563AB)

1шт.

4962AA

SUPPORT (use A9190)

1шт.

4963AA

SUPPORT (use A9191)

1шт.

4964AA

ANGLE - guide, draw bar

1шт.

5/8" x 1-3/4" N.F. hex. bolt with hex. nut and lockwasher

4шт.
