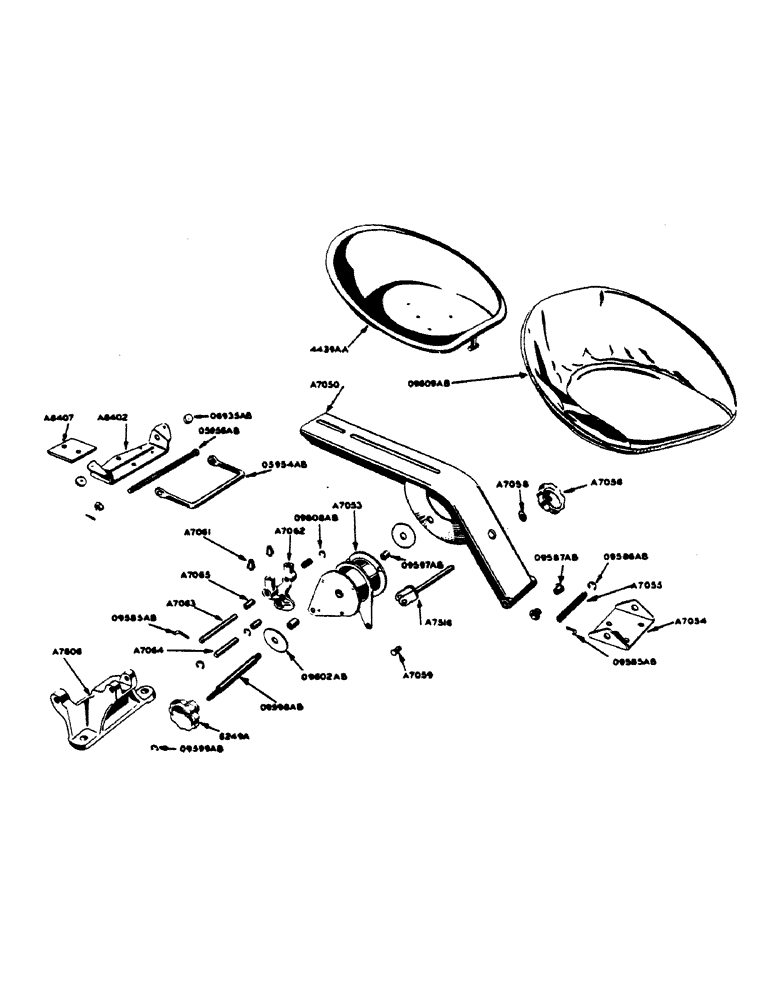

Запчасти Case IH 400-SERIES (190) - OPERATORS SEAT (09) - CHASSIS

A7050

CHANNEL - seat, with 09587AB bushings (for all but orchard models) (see A8428)

1шт.

A7053

SPRING

- rubber torsion, and side arm assembly

1шт.

A7054

SPARE PART

BRACKET - seat channel (for all but orchard models) (see A8424)

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

3шт.

A7055

PIN - pivot, seat channel (for all but orchard models) (see A8430)

1шт.

A7056

NUT

- hand wheel, to adjust seat spring

1шт.

A7058

BUSHING

WASHER - seat spring adjusting nut

1шт.

A7059

PIN - seat spring mounting adjusting rod

1шт.

3/32" x 3/4" cotter pin

1шт.

A7060

BRACKET

LINK (use A7062)

1шт.

A7061

BUMPER

- seat, on A7062 and A8434 links

2шт.

A7062

LINK - seat mounting support, with 3 - A7065 bushings and 2 - A7061 bumpers (For all but orchard models) (see A8434)

1шт.

A7063

PIN - seat mounting support link, upper

1шт.

A7064

FRAME

PIN - seat mounting support link, lower

1шт.

A7065

BUSHING

- for A7062 support link

3шт.

A7065

BUSHING

- upper, for A8434 support link (for orchard models)

2шт.

A7516

ROD AND YOKE END - seat spring adjusting (for all but orchard models) (see A8818)

1шт.

A7606

BRACKET - seat mounting (standard 4-wheel tractor)

1шт.

5/8" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

A8402

BRACKET - seat rear support

1шт.

A8407

PLATE - seat channel reinforcement (for all but orchard models) (see A8431)

1шт.

A8424

BRACKET - seat channel (for orchard models) (see A7054)

1шт.

5/8" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

A8428

CHANNEL - seat, with 0958AB bushings (for orchard models) (see A7050)

1шт.

A8430

PIN - pivot, seat channel (for orchard models) (see A7055)

1шт.

A8431

PLATE - seat channel reinforcement (for orchard models) (see A8407)

1шт.

A8432

LINK (use A8434)

1шт.

A8433

BUSHING - lower, for A8434 support link (for orchard models)

2шт.

A8434

LINK - seat mounting support, with 2 - A7061 bumpers, 2 - A7065 bushings and 2 - A8433 bushings (for orchard models) (see A7062)

1шт.

A8435

BRACKET - seat channel pivot, rear (for orchard models)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher

1шт.

A8818

ROD AND YOKE END - seat spring adjusting (for orchard models) (see A7516)

1шт.

A9829

BRACKET - seat mounting pivot (for orchard models using A9830 transmission case rear cover)

1шт.

1/2" x 1-1/4" N.C. hex. bolt with lockwasher

3шт.

A10298

BACK REST - for operator's seat (special)

1шт.

6249A

NUT - hand wheel, to adjust seat mounting

1шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

1/2" N.F. light castellated nut

1шт.

3/32" x 7/8" cotter pin

1шт.

O6935AB

X

BUMPER - seat rear, support

2шт.

No. 10 x 3/4" rhd. mach. screw w/hex. nut and lockwasher

2шт.

O9585AB

X

LOCK - for A7063 and A7055 or A8430 pins

2шт.

O9586AB

X

SNAP RING - retaining, seat channel pivot pin

1шт.

O9587AB

X

BUSHING - seat channel pivot pin

2шт.

O9597AB

BUSHING - for 09598AB pivot bolt

2шт.

O9598AB

X

BOLT - pivot, seat mounting

1шт.

1/2" N.F. hex. jam nut

1шт.

1/2" std. lockwasher

1шт.

O9599AB

X

"E" RING - retaining, for 09598AB pivot bolt

1шт.

O9602AB

X

DISC - friction, for torsion spring assembly

2шт.

O9608AB

X

RING - retaining, for A7063 and A7064 link pins

3шт.

O9609AB

CUSHION - seat

1шт.

4439AA

SEAT - opeator's

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut

2шт.

1/2" ex. - int. tooth Shakeproof lockwasher #4024-32-00

2шт.
