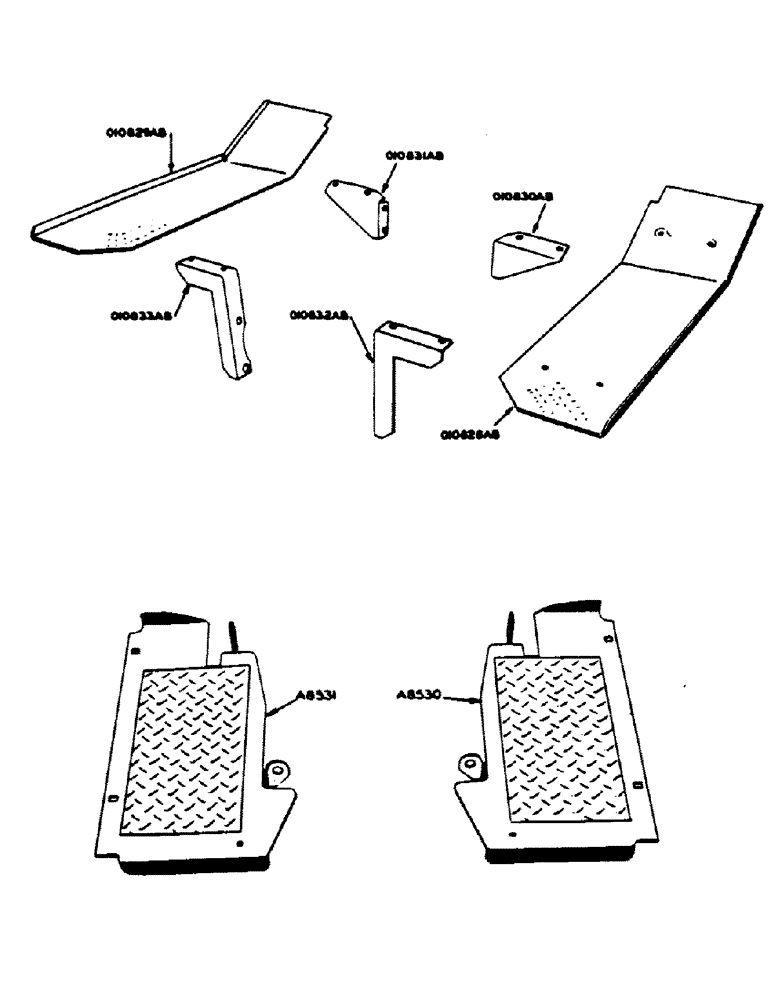

Запчасти Case IH 400-SERIES (189) - PLATFORM FOR ALL BUT ORCHARD TRACTORS (09) - CHASSIS

O10828AB

PLATFORM - R.H.

1шт.

3/8" x 1" N.C. truss hd. mach. screw with hex. nut and lockwasher

3шт.

5/8" x 2-1/4" N.C. hex. bolt with lockwasher

4шт.

O10829AB

PLATFORM - L.H.

1шт.

3/8" x 1" N.C. truss hd. mach. screw with hex. nut and lockwasher

3шт.

5/8" x 2-1/4" N.C. hex. bolt with lockwasher

4шт.

O10830AB

SUPPORT - platform front, R.H.

1шт.

1/2" x 1" N.C. hex. bolt with lockwasher

2шт.

O10831AB

SUPPORT - platform front, L.H.

1шт.

1/2" x 1" N.C. hex. bolt with lockwasher

2шт.

O10832AB

SUPPORT - platform rear, R.H.

1шт.

O10833AB

SUPPORT - platform rear, L.H.

1шт.

A8530

PLATE - platform, R.H., for Orchard tractors

1шт.

1/2" x 1-1/2" N.C. carr. bolt w/hex. nut and lockwasher, platform for Orchard tractors

1шт.

1/2" x 1-3/4" N.C. carr. bolt w/hex. nut and lockwasher, platform for Orchard tractors

1шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher, platform for Orchard tractors

3шт.

A8531

PLATE - platform, L.H., for Orchard tractors

1шт.

1/2" x 1-1/2" N.C. carr. bolt w/hex. nut and lockwasher, platform for Orchard tractors

1шт.

1/2" x 1-3/4" N.C. carr. bolt w/hex. nut and lockwasher, platform for Orchard tractors

1шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher, platform for Orchard tractors

3шт.
