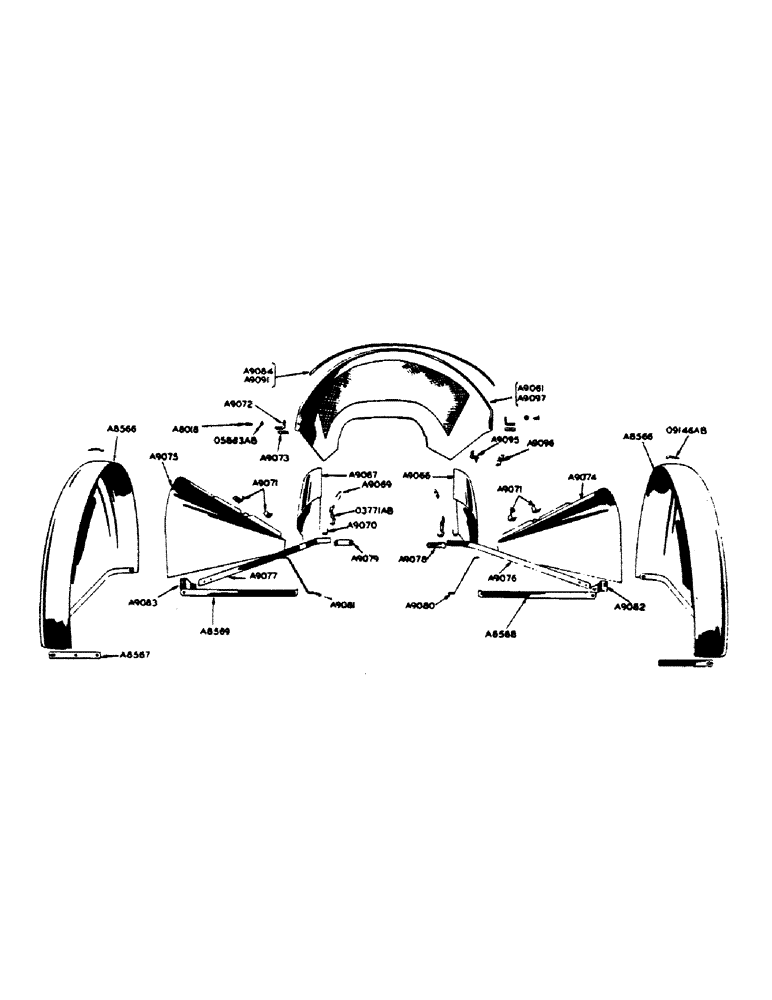

Запчасти Case IH 400-SERIES (147) - ORCHARD SHIELD AND COWL ATTACHMENT, FOR ORCHARD TRACTORS (09) - CHASSIS

A8018

STEP BOLT

STUD - orhard cowl hinge

2шт.

A8566

SHEET - side, fender extension

2шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 3/4" N.C. truss hd. mach. screw (zinc plated) w/lockwasher and nut

12шт.

A8567

BRACE - tie, fender extension, rear

2шт.

3/8" x 1-1/4" N.C. carr bolt

4шт.

A8568

BRACE - fender extension support, front R.H.

1шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" x 1-1/2" N.C. hex. bolt

1шт.

A8569

BRACE - fender extension support, front L.H.

1шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" x 1-1/2" N.C. hex. bolt

1шт.

A9061

COWL - orchard (for std. orchard tractors) (see A9097)

1шт.

A9066

SIDE - hood, with mounting clips, R.H. (for std. orchard tractors) (see A9088)

1шт.

#10 - 32 x 1/2" N.F. rhd. mach. screw w/nut and lockwasher

2шт.

A9067

SIDE - hood, with mounting clips, L.H. (for std. orchard tractors) (see A9089)

1шт.

#10 - 32 x 1/2" N.F. rhd. mach. screw w/nut and lockwasher

2шт.

A9069

REINFORCEMENT - hood side latch

2шт.

A9070

CLIP - hood side latch

2шт.

5/16" x 5/8" N.F. hex. bolt w/lockwasher

4шт.

A9071

CLIP - hood side hold down

4шт.

1/4" x 1/2" N.C. truss hd. mach. screw

4шт.

A9072

CLIP - orchard cowl hinge

2шт.

3/8" x 1" N.C. carr. bolt w/hex. nut and lockwasher

2шт.

A9073

REINFORCEMENT - orchard fender hinge

2шт.

A9074

SHEET - fender extension front, R.H.

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw

1шт.

5/16" x 3/4" N.C. truss hd. mach. screw w/hex. nut and lockwasher

1шт.

5/16" x 1" N.C. truss hd. mach. screw w/hex. nut and lockwasher

3шт.

1/4" - 20 Timmerman speed grip nut #C7988 - 1420

2шт.

A9075

SHEET - fender extension front, L.H.

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw

1шт.

5/16" x 3/4" N.C. truss hd. mach. screw w/hex. nut and lockwasher

1шт.

5/16" x 1" N.C. truss hd. mach. screw w/hex. nut and lockwasher

3шт.

1/4" - 20 Timmerman speed grip nut #C7988-1420

2шт.

A9076

REINFORCEMENT - hood side and fender extension front sheet, R.H.

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A9077

REINFORCMENT - hood side and fender extension front sheet, L.H.

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A9078

CLIP - for A9076 reinforcement, R.H.

1шт.

3/4" x 2-1/4" N.C. hex. bolt

1шт.

A9079

CLIP - for A9077 reinforcment, L.H.

1шт.

3/4" x 2-1/4" N.C. hex. bolt

1шт.

A9080

BRACE - for A9074 sheet, R.H.

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

A9081

BRACE - for A9075 sheet, L.H. (see A9421)

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

A9082

BRACKET - rear, for A9074 sheet, R.H.

1шт.

A9083

BRACKET - rear, for A9075 sheet, L.H.

1шт.

A9084

MOULDING - rubber, orchard cowl (for std. orchard tractors) (see A9091)

1шт.

A9088

SIDE - hood, with mounting clips, R.H. (for LP-gas tractors) (see A9066)

1шт.

#10 - 32 x 1/2" N.F. rhd. mach. screw w/nut and lockwasher

2шт.

A9089

SIDE - hood, with mounting clips, L.H. (for LP-gas tractors) (see A9067)

1шт.

#10 - 32 x 1/2" N.F. rhd. mach. screw w/nut and lockwasher

2шт.

A9091

MOULDING - rubber, orchard cowl (for LP-gas tractors) (see A9084)

1шт.

A9095

FASTENER - orchard cowl hold down, with clip

2шт.

1/4" x 5/8" N.C carr. bolt. w/hex. nut, lockwasher and plain washer (zinc plated)

2шт.

A9096

SPRING - orchard cowl hold down fastener, with strap

2шт.

#10 - 32 x 1/2" N.F. rhd. mach. screw w/nut, lockwasher and plain washer

4шт.

A9097

COWL - orchard (for LP-gas tractors) (see A9061)

1шт.

A9421

BRACE - for A9075 sheet, L.H. (for tractors with Power Steering) (see A9081)

1шт.

3/8" x 1-1/4" N.F. hex bolt w/hex. nut and lockwasher

1шт.

O3771AB

X

LATCH - hood side

2шт.

O5883AB

WASHER - tension, orchard cowl hinge

2шт.

3/8" N.F. hex. nut and lockwasher (zinc plated)

2шт.

O9146AB

CLAMP - fender extension

6шт.
