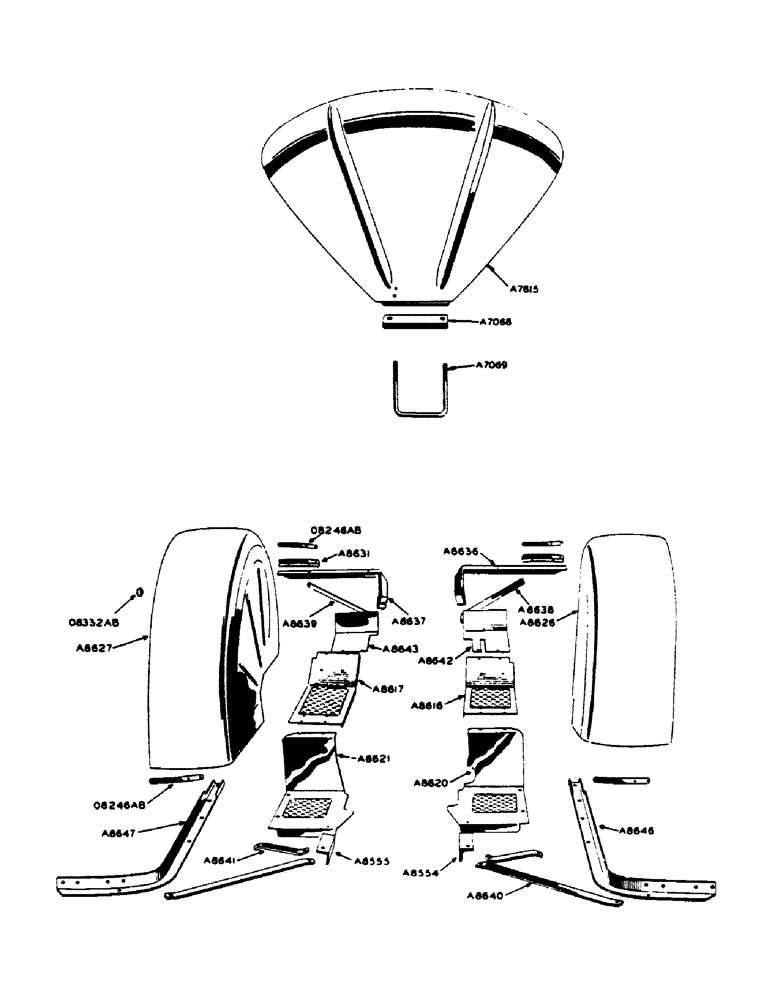

Запчасти Case IH 400-SERIES (144) - FENDERS, FOR ALL BUT ORCHARD MODELS (09) - CHASSIS

A7068

SPARE PART

SUPPORT - rear fender

2шт.

A7069

ARM

"U" BOLT - rear fender support

2шт.

5/8" N.F. hex. nut and lockwasher

4шт.

A7615

FENDER

2шт.

A8554

SUPPORT - fender rear brace, R.H., and platform, for model "400" special tractors

1шт.

5/8" x 2" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

2шт.

A8555

SUPPORT - fender rear brace, L.H., and platform, for model "400" special tractors

1шт.

5/8" x 2" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

2шт.

A8616

PLATE - upper platform, R.H., fenders, for "400" special tractors

1шт.

3/8" x 1" N.C. truss hd. mach. screw with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

5шт.

A8617

PLATE - upper plateform, L.H., and fenders, for model "400" special tractors

1шт.

3/8" x 1" N.C. truss hd. mach. screw with hex. nut and lock- washer, fenders and platform, for model "400" special tractors

5шт.

A8620

PLATE - lower platform, R.H., and fenders, for model "400" special tractors

1шт.

1/2" x 1-1/4" N.C. carr. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

1шт.

1/2" x 1-3/4" N.C. carr. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

1шт.

A8621

PLATE - lower platform, L.H., and fenders, for model "400" special tractors

1шт.

1/2" x 1-1/4" N.C. carr. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

1шт.

1/2" x 1-3/4" N.C. carr. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

1шт.

A8626

FENDER - rear wheel, R.H., and platform, for model "400" special tractors

1шт.

1/4" x 1/2" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

3шт.

5/16" x 3/4" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

7шт.

3/8" x 1" N.C. carr. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

3шт.

A8627

FENDERS - rear wheel, L.H., and platform, for model "400" special tractors

1шт.

1/4" x 1/2" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

3шт.

5/16" x 3/4" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

7шт.

3/8" x 1" N.C. carr. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

3шт.

A8631

SUPPORT - fender front, and platform, for model "400" special tractors

2шт.

3/8" x 1" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

4шт.

A8636

ANGLE - fender front support, R.H., and platform, for model "400" special tractors

1шт.

1/2" x 1-3/4" N.C. hex. bolt with lockwasher, fenders and platform, for model "400" special tractors

2шт.

A8637

ANGLE - fender front support, L.H., and platform, for model "400" special tractors

1шт.

1/2" x 1-3/4" N.C. hex. bolt with lockwasher, fenders and platform, for model "400" special tractors

2шт.

A8638

BRACE - fender front support, R.H., and platform, for model "400" special tractors

1шт.

1/2" x 1-1/2" N.F. hex. bolt with hex and nut and lockwasher, fenders and platform, for model "400" special tractors

1шт.

5/8" x 1-1/4" N.C. hex. bolt with lockwasher, fenders and platform, for model "400" special tractors

1шт.

A8639

BRACE - fender front support, L.H., and platform, for model "400" special tractors

1шт.

1/2" x 1-1/2" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

1шт.

5/8" x 1-1/4" N.C. hex. bolt with lockwasher, fenders and platform, for model "400" special tractors

1шт.

A8640

BRACE - fender long, and platform, for model "400" special tractors

2шт.

1/2" x 1-1/2" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

2шт.

5/8" x 2" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

2шт.

A8641

BRACE - fender, short, and platform, for model "400" special tractors

2шт.

A8642

SHEET - fender dust, R.H., and platform, for model "400" special tractors

1шт.

5/16" x 1" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

2шт.

5/16" x 5/8" N.C. truss hd. mach. screw with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

2шт.

A8643

SHEET - fender dust, L.H., and platform, for model "400" special tractors

1шт.

5/16" x 1" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

2шт.

5/16" x 5/8" N.C. truss hd. mach. screw with hex. nut lockwasher, fenders and platform, for model "400" special tractors

2шт.

A8646

ANGLE - fender rear support, R.H., and platform, for model "400" special tractors

1шт.

A8647

ANGLE - fender rear support, L.H., and platform, for model "400" special tractors

1шт.

O8246AB

STRIP - fender reinforcment, and platform, for model "400" special tractors

4шт.

5/16" x 3/4" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

8шт.

5/16" x 1" N.F. hex. bolt with hex. nut and lockwasher, fenders and platform, for model "400" special tractors

8шт.

O8332AB

X

GROMMET - rubber, on L.H. fender, and platform, for model "400" special tractors

1шт.
