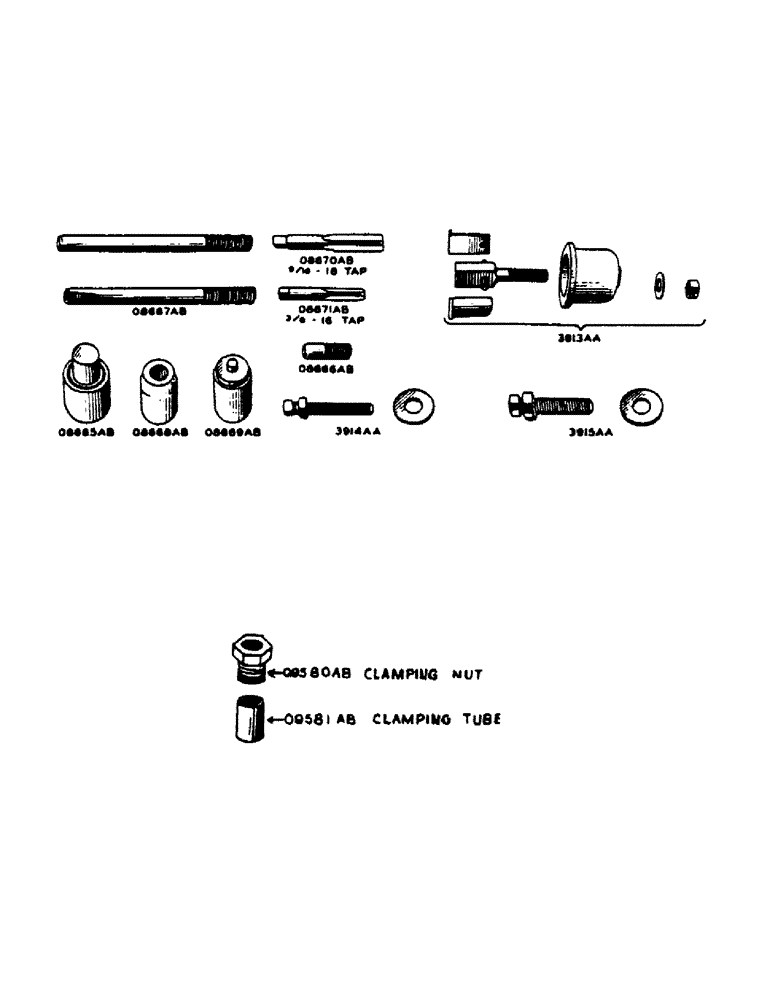

Запчасти Case IH 400-SERIES (222) - 3920AA SPECIAL TOOLS FOR SERVICING HYDRAULIC CONTROL UNIT (08) - HYDRAULICS

A8340

JAW - hydraulic pump drive shaft bearing puller. (to be used with 3913AA puller by removing 08662AB jaws)

2шт.

6083A

CUP - bearing puller (use 3913AA)

1шт.

O8662AB

JAW - for 3913AA puller

2шт.

O8665AB

TOOL - bearing pressing

1шт.

O8666AB

STUD - dowel, short

1шт.

O8667AB

STUD - dowel, long

2шт.

O8668AB

THIMBLE - to assemble oil seal on piston rod

1шт.

O8669AB

TOOL - valve seat pressing (relief valve)

1шт.

O8670AB

TAP - hand, 9/16" - 18 standard plug

1шт.

O8671AB

TAP - hand, 3/8" - 16 standard plug

1шт.

3913AA

PULLER - pump shaft bearing

1шт.

3914AA

PULLER - relief valve seat (consists of 1 - 08685AB washer with 3/8" x 3" N.C. C.P. set screw and hex. nut)

1шт.

3915AA

PULLER - ball check seat (consists of 9/16" x 2-1/2" N.F. hex. bolt - min. thrd. lgth. 2-1/4" - with hex. nut and 1/2" plain washer)

1шт.

3920AA

KIT - service, consists of above listed items. This is a set of special tools required for servicing the hydraulic control unit.

1шт.

O9580AB

NUT - clamping, relief valve, special tools to install 4443AA service kit

1шт.

O9581AB

TUBE - relief clamping nut, special tools to install 4443AA valve servie kit

1шт.
