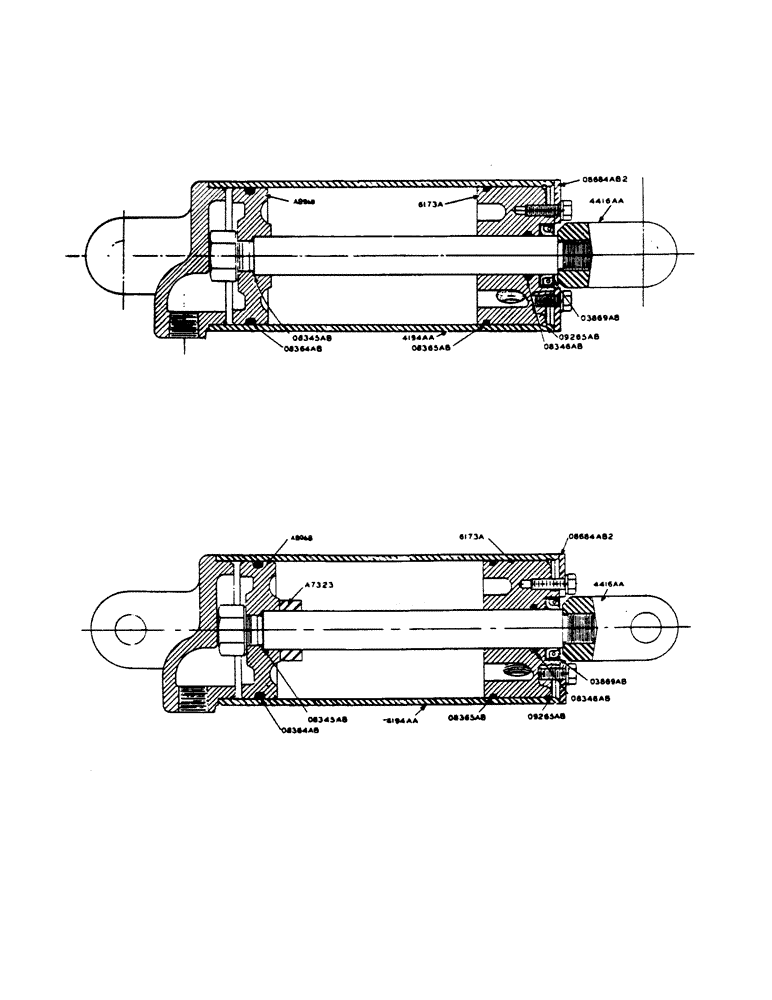

Запчасти Case IH 400-SERIES (212) - A4195AA MOUNTED CYLINDER ASSEMBLY, 4" X 6", A7322 MOUNTED CYLINDER ASSEMBLY, 4" X 6" (08) - HYDRAULICS

A7322

CYLINDER - 4" x 6" hydraulic mounted, complete (for standard 4-wheel tractors) (consists of items marked #) (use A4195AA and 1 - A7323 spacer)

1шт.

A7323

SPACER - piston rod, for A7322 cylinder

1шт.

A7529

HOSE ASSY.

HOSE - hydraulic, mounted cylinder to lower valve R.H. (29-1/2" long)

1шт.

A7531

CLIP - hydraulic hose

1шт.

A7785

HOSE - hydraulic, mounted cylinder to lower valve L.H. (9-1/2" long)

1шт.

A8733

HEAD (use 6173A)

1шт.

A8968

PISTON

- cylinder

1шт.

Part of 4" x 6" hydraulic mounted cylinder P/N A4195AA

1шт.

A9173

BRACKET - cylinder anchor (for high clearance models only)

1шт.

5/8" x 1-1/2" N.C. hex. bolt with lockwasher

1шт.

5/8" x 1-3/4" N.C. hex. bolt with lockwasher

2шт.

6159A

CAP (use 4194AA)

1шт.

6173A

HEAD - cylinder

1шт.

Part of 4" x 6" hydraulic mounted cylinder P/N A4195AA

1шт.

6244A

X

PISTON - cylinder (use A8968)

1шт.

Part of 4" x 6" hydraulic mounted cylinder P/N A4195AA

1шт.

6522A

BRACKET - hydraulic mounted cylinder anchor

1шт.

5/8" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

5/8" x 2-3/4" N.C. hex. bolt w/lockwasher

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

O8345AB

X

GASKET - piston rod

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

O8350AB

PIN - hydraulic cylinder yoke

2шт.

1/4" x 1-1/2" cotter pin

2шт.

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston

1шт.

O8365AB

X

"O" RING - cylinder head

1шт.

O8387AB

X

PLUG - male adapter, connectors break-away coulping plug to mounted cylinder.

2шт.

O8684AB2

CLAMP - cylinder head

1шт.

Part of 4" x 6" hydraulic mounted cylinder P/N A4195AA

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

4шт.

O9223AB

HOSE - cylinder to sump (13" long) (for high clearance models without Eagle Hitch)

1шт.

O9265AB

X

SNAP RING - cylinder head

1шт.

4194AA

CYLINDER - and cap

1шт.

1/2" - 90 deg. street elbow

1шт.

A4195AA

CYLINDER - 4" x 6" hydraulic mounted, complete, consists of items marked

1шт.

4416AA

ROD AND YOKE - piston

1шт.

7/8" N.F. hex. light out

1шт.

7/8" Shakeprook lockwasher, type 12, #1234

1шт.
