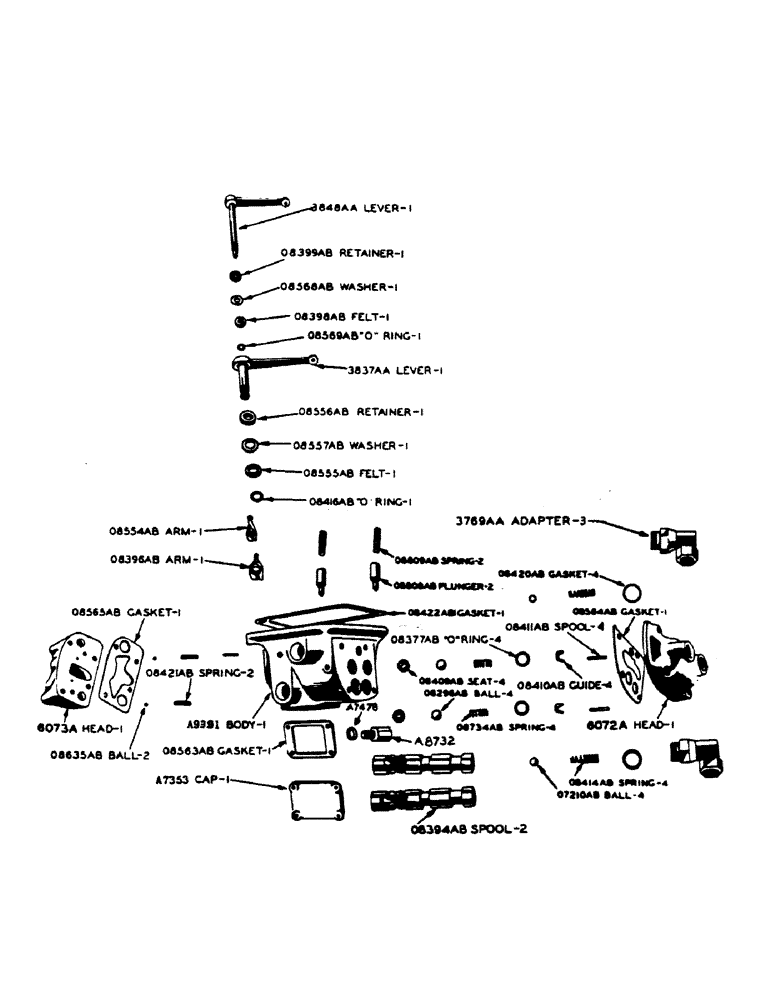

Запчасти Case IH 400-SERIES (206) - HYDRAULIC DUAL VALVE AND PUMP ASSEBMLY, FOR TRACTORS WITHOUT EAGLE HITCH (08) - HYDRAULICS

A7353

CAP

- hydraulic valve body

1шт.

1/4" x 3/4" N.C. flat hd. mach. screw with lockwasher

1шт.

1/4" x 3/4" N.C. rhd. mach. screw with lockwasher

3шт.

A7475

X

CAP - hydraulic float valve opening (use A8732)

1шт.

A7478

GASKET

- float valve opening cap

1шт.

A8732

CAP

- hydraulic float valve opening

1шт.

A9391

BODY - hydraulic valve (consists of 1 - 6506A, 4 - 08409AB seats, 1 - 09572AB sleeve and 5 - 1/8" hex. socket head pipe plugs) (does not include relief valve)

1шт.

6072A

X

HEAD - hydraulic valve, R.H

1шт.

3/8" x 1-1/4" N.C. hex. bolt with lockwasher

1шт.

3/8" x 1-3/4" N.C. hex. bolt with lockwasher

3шт.

6073A

HEAD - hydraulic valve, L.H.

1шт.

3/8" x 2-3/4" N.C. hex. bolt with lockwasher

4шт.

6506A

WHEEL (STEERING)

BODY (use A9391)

1шт.

O7210AB

X

BALL - hydraulic valve return (1/2" dia.)

4шт.

O8296AB

X

BALL - valve outlet (5/8" dia.)

4шт.

O8377AB

X

"O" RING - valve outlet ball check

4шт.

O8394AB

X

SPOOL - hydraulic valve

2шт.

O8396AB

X

ARM - spool shifter, small (see 08554AB)

1шт.

1/4" x 3/4" N.F. fillister hd. mach. screw with lockwasher

1шт.

O8398AB

X

WASHER - felt, spool shifter shaft, upper (see 08555AB)

1шт.

O8399AB

X

RETAINER - spool shifter shaft upper felt washer (see 08556AB)

1шт.

O8409AB

X

SEAT - outlet ball check

4шт.

O8410AB

X

GUIDE - outlet ball check spring

4шт.

O8411AB

X

SPOOL - auxiliary

4шт.

O8414AB

X

SPRING - return ball check

4шт.

O8416AB

X

"O" RING - spool shifter shaft, lower

1шт.

O8420AB

X

GASKET - swivel angle adapter

4шт.

O8421AB

SPRING

- relief valve ball

2шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8554AB

X

ARM - spool shifter, large (see 08396AB)

1шт.

1/4" x 1" N.F. fillister hd. mach screw with lockwasher

1шт.

O8555AB

X

WASHER - felt, spool shifter shaft, lower (see 08398AB)

1шт.

O8556AB

X

RETAINER - spool shifter shaft lower felt washer (see 08399AB)

1шт.

O8557AB

X

WASHER - spool shifter shaft seal, for 08555AB felt

1шт.

O8563AB

GASKET - valve body cap

1шт.

O8564AB

X

GASKET - hydraulic valve head, R.H.

1шт.

O8565AB

X

GASKET - hydraulic valve head, L.H.

1шт.

O8568AB

X

WASHER - spool shifter seal, for 08398AB felt

1шт.

O8569AB

X

"O" RING - spool shifter shaft, upper

1шт.

O8635AB

X

BALL - relief valve (1/4" dia.)

2шт.

O8734AB

X

SPRING - outlet ball check

4шт.

O8808AB

PLUNGER - spool

2шт.

O8809AB

X

SPRING - spool plunger

2шт.

3769AA

X

ADAPTER - swivel angle

3шт.

3837AA

X

LEVER AND SHAFT - spool shifter, lower

1шт.

3848AA

LEVER

AND SHAFT - spool shifter, upper

1шт.

4930AA

HYDRAULIC DUAL VALVE AND 12 GAL. PER MINUTE PUMP ASSEMBLY, complete (for tractors without Eagle Hitch)

1шт.

4972AA

BODY - hydraulic dual valve (use A9391)

1шт.
