Запчасти Case IH 400-SERIES (203) - HYDRAULIC FLOAT VALVE AND PUMP ASSEMBLY, FOR TRACTORS WITH EAGLE HITCH (08) - HYDRAULICS

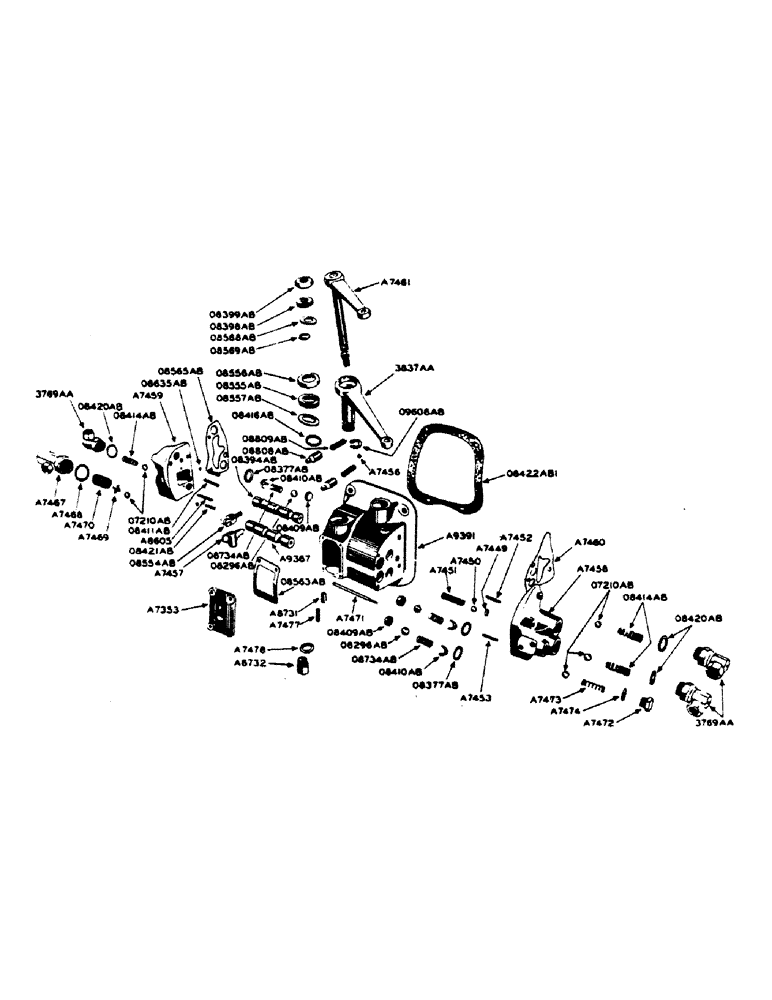

Схема запчастей Case IH 400-SERIES - (203) - HYDRAULIC FLOAT VALVE AND PUMP ASSEMBLY, FOR TRACTORS WITH EAGLE HITCH (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

A7353

CAP

- hydraulic valve body

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

3шт.

1/4" x 3/4" N.C. flat hd. mach. screw w/lockwasher

1шт.

A7449

SEAT - down pressure valve ball

1шт.

A7450

X

BALL - down pressure ball check (7/16" dia.)

1шт.

A7451

SPRING - down pressure valve

1шт.

A7452

SPOOL

- auxiliary, upper R.H.

1шт.

A7453

SPOOL

- auxiliary, lower R.H.

1шт.

A7454

SPOOL - auxiliaty, lower L.H. (use A8605)

1шт.

A7456

X

BALL - spool shifter inner shaft end thrust

1шт.

A7457

ARM

- lower, spool shifter (see 08554AB)

1шт.

1/4" x 1" N.F. fillister hd. mach. screw w/lockwasher

1шт.

A7458

HEAD - hydraulic valve, R.H.

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

3/8" x 2-1/4" N.C. hex. bolt w/lockwasher

3шт.

1/8" hex. socket hd. pipe plug

2шт.

A7459

HEAD - hydraulic valve, L.H.

1шт.

3/8" x 2-3/4" N.C. hex. bolt w/lockwasher

4шт.

A7460

GASKET

- valve head, R.H.

1шт.

A7461

X

LEVER AND SHAFT - spool shifter, upper

1шт.

A7468

GASKET

GASKET - cylinder speed regulator

1шт.

A7469

GUIDE - lower valve return ball check spring, L.H.

1шт.

A7470

SPRING - lower valve return ball check, L.H.

1шт.

A7471

ROD - float ball check

1шт.

A7472

PLUG - float ball check

1шт.

A7473

SPRING

- float ball check

1шт.

A7474

GASKET - float ball check plug

1шт.

A7475

X

CAP - float position retaining plunger (use A8731 and A8732)

1шт.

A7476

X

PLUNGER - float position retaining (use A8731 and A8732)

1шт.

A7477

SPRING

- float position retaining plunger

1шт.

A7478

GASKET

- float position retaining plunger cap

1шт.

A7480

HYDRAULIC FLOAT VALVE (can be used by installing A9354 kit) (now use A9350 and pump)

1шт.

A7780

BODY - hydraulic valve (can be used by installing A9354 kit) (now use A9391)

1шт.

A8605

SPOOL - auxiliary, lower L.H.

1шт.

A8731

PLUNGER

- hydraulic float position retaining

1шт.

A8732

CAP

- for A8731 plunger

1шт.

A9350

HYDRAULIC FLOAT VALVE AND 12 GAL. PER MINUTE PUMP ASSEMBLY, complete (for tractors with Eagle Hitch)

1шт.

A9367

SPOOL - hydraulic float valve, lower

1шт.

A9391

BODY - hydraulic valve (consists of 1 - 65606A body, 4 - 08409AB seats, 1 - 09571AB sleeve and 5 - 1/8" hex. socket hd. pipe plugs (does not include relief valve)

1шт.

6506A

WHEEL (STEERING)

BODY - (use A9391)

1шт.

O7210AB

X

BALL - hydraulic valve return (1/2" dia. )

4шт.

O7210AB

X

BALL - hydraulic float (1/2" dia.)

1шт.

O8296AB

X

BALL - valve outlet (5/8" dia.)

4шт.

O8377AB

X

"O" RING - outlet ball check

4шт.

O8394AB

X

SPOOL - hydraulic valve, upper

1шт.

O8398AB

X

WASHER - felt, spool shifter shaft, upper (see 08555AB)

1шт.

O8399AB

X

RETAINER - spool shifter shaft upper felt washer (see 08556AB)

1шт.

O8409AB

X

SEAT - outlet ball check

4шт.

O8410AB

X

GUIDE - outlet ball check spring

4шт.

O8411AB

X

SPOOL - auxiliary, upper L.H.

1шт.

O8414AB

X

SPRING - return ball check

3шт.

O8416AB

X

"O" RING - spool shifter shaft, lower

1шт.

O8420AB

X

GASKET - swivel angle adapter

3шт.

O8421AB

SPRING

- relief valve ball

2шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8554AB

X

ARM - upper, spool shifter (see A7457)

1шт.

1/4" x 1" N.F. fillister hd. mach. screw w/lockwasher

1шт.

O8555AB

X

WASHER - felt, spool shifter shaft, lower (see 08398AB)

1шт.

O8556AB

X

RETAINER - spool shifter shaft lower felt washer (see 08399AB)

1шт.

O8557AB

X

WASHER - spool shifter shaft seal, for 08555AB felt

1шт.

O8563AB

GASKET - body cap

1шт.

O8565AB

X

GASKET - valve head, L.H.

1шт.

O8568AB

X

WASHER - spool shifter seal, for 08398AB felt

1шт.

O8569AB

X

"O" RING - spool shifter shaft, upper

1шт.

O8635AB

X

BALL - relief valve (1/4" dia.)

2шт.

O8734AB

X

SPRING - outlet ball check

4шт.

O8808AB

PLUNGER - spool

2шт.

O8809AB

X

SPRING - spool plunger

2шт.

O9608AB

X

"E" RING - retaining, spool shifter innder shaft

1шт.

VT3476

STUD - hydraulic valve body (1/2" x 2")

2шт.

1/2" N.F. hex. nut

2шт.

1/2" std. lockwasher

2шт.

3769AA

X

ADAPTER - swivel angle

3шт.

3837AA

X

LEVER AND SHAFT - spool shifter, lower

1шт.

Выбрано товаров: 74
