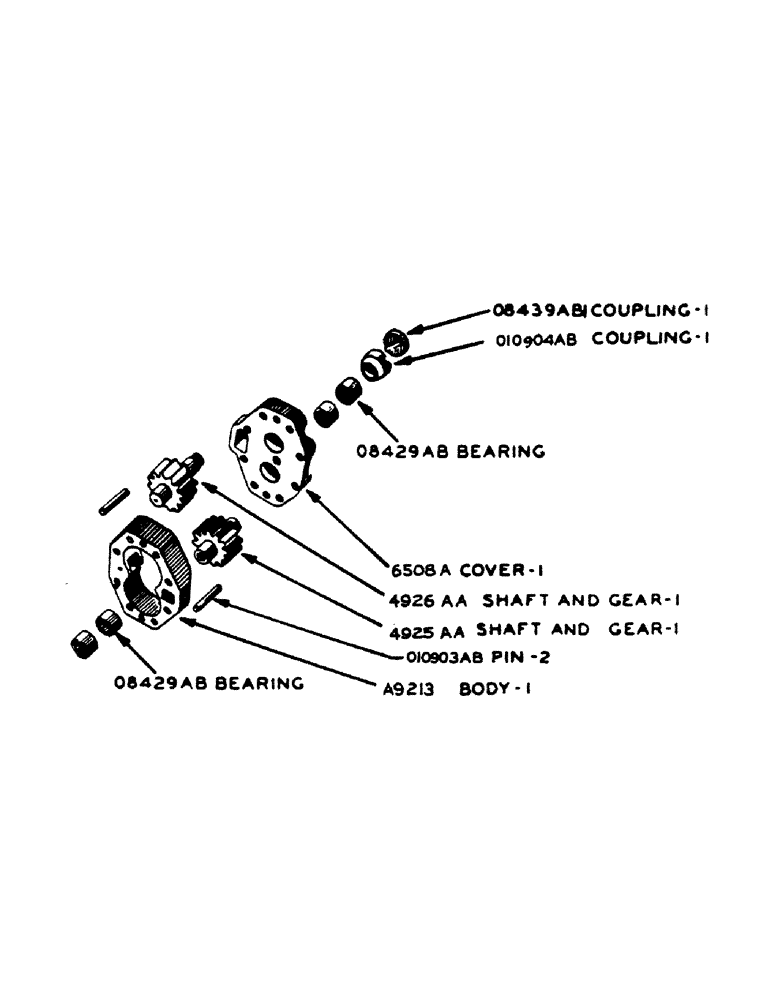

Запчасти Case IH 400-SERIES (201) - HYDRAULIC PUMP 12 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

A9213

BODY

- hydraulic pump

1шт.

6508A

COVER

- hydraulic pump body

1шт.

3/8" x 2-1/2" N.C. hex. bolt with lockwasher

3шт.

3/8" x 3-1/4" N.C. hex. bolt with lockwasher

5шт.

O8429AB

NEEDLE BEARING,0.875" ID x 1.125" OD x 0.75"

BEARING - hydraulic pump shaft (Torrington No. GB-1412X)

4шт.

O8439AB1

X

COUPLING - hydraulic pump drive

1шт.

O10903AB

PIN

- dowel, hydraulic pump body

2шт.

O10904AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O10905AB

X

SNAP RING - hydraulic pump drive coupling

1шт.

4926AA

SHAFT

DRIVE GEAR AND SHAFT - hydraulic pump

1шт.

4925AA

SHAFT

IDLER GEAR AND SHAFT - hydraulic pump

1шт.
