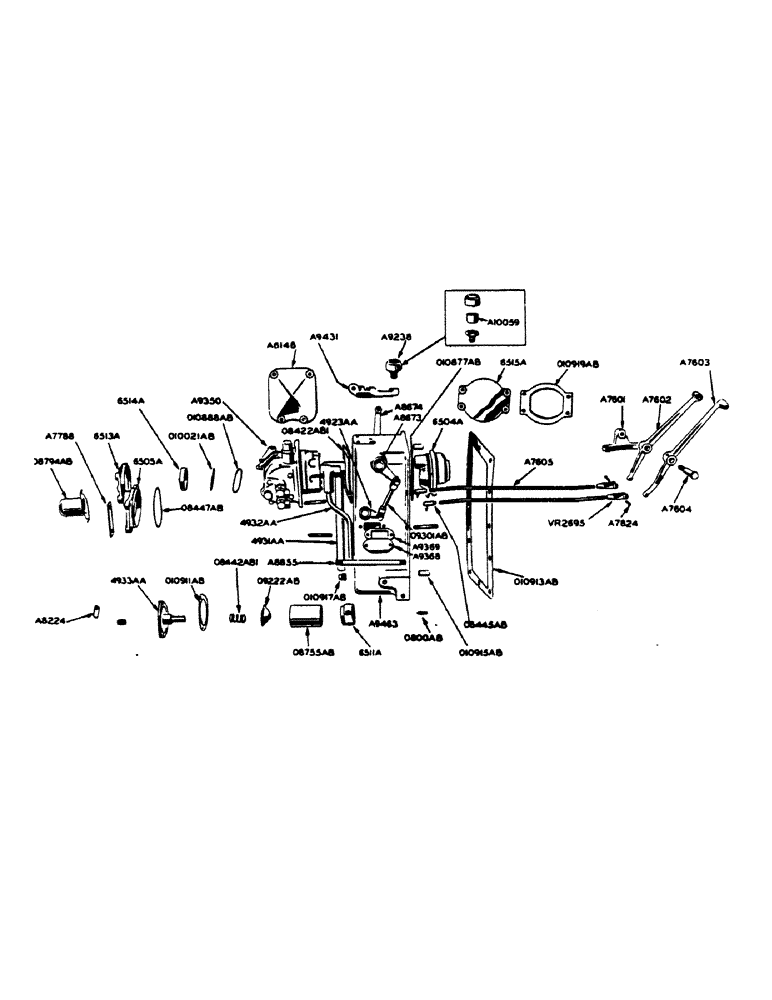

Запчасти Case IH 400-SERIES (196) - MAIN HOUSING FOR PTO AND HYDRAULIC PUMP (08) - HYDRAULICS

A7601

BRACKET - hydraulic valve control hand lever (for all tractors except orchard models)

1шт.

1/2" x 2" N.C. hex. bolt with lockwasher

2шт.

A7602

LEVER - hand, hydraulic valve control, inner (for all tractors except orchard models) (see A8444)

1шт.

1/8" straight Lincoln fitting no. 5000

1шт.

A7603

LEVER - hand, hydraulic valve control, outer (for all tractors except orchard models) (see A8445)

1шт.

1/8" straight Lincoln fitting no. 5000

1шт.

A7604

STUD - valve control hand lever (for all tractors except orchard models) (see 08578AB1)

1шт.

5/8" N.F. hex. jam nut and lockwasher

1шт.

A7605

ROD - hydraulic valve control (for all tractors except orchard models) (see A8446)

2шт.

5/16" N.F. hex. jam nut

4шт.

A7824

X

PIN - for VR2695 control rod yoke end

2шт.

3/32" x 3/4" cotter pin

2шт.

A8444

LEVER - hand, hydraulic valve control, inner (for orchard tractors only) (see A7602)

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A8445

LEVER - hand, hydraulic valve control, outer (for orchard tractors only) (see A7603)

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A8446

ROD - hydraulic valve hand lever control (for orchard tractors only) (See A7605)

2шт.

5/16" N.F. hex. jam nut

4шт.

A8855

STUD - hydraulic housing and draw bar support (5/8" x 9-7/8" long) (for orchard tractors)

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.

A8855

STUD - hydraulic housing and draw bar support (5/8" x 9-7/8" long) (for high clearance tractors with Eagle Hitch and hydraulic unit)

4шт.

5/8" N.F. hex. nut and lockwasher

4шт.

A8908

BREATHER - hydraulic housing, inner (for orchard models) (see

1шт.

1/8" - 45deg. std. pipe elbow and 1/8" x 1" pipe nipple

1шт.

A9238

BREATHER

- hydraulic housing, outer (for all but orchard models) (see A8908)

1шт.

3/4" std. pipe elbow (used with 6518A bracket only)

1шт.

3/4" x 3" std. pipe nipple (used with 6518A bracket only)

1шт.

3/4" std. pipe street tee (used with 6518A bracket only)

1шт.

A9368

CAP - PTO clutch adjusting hole, for hydraulic housing

1шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher

2шт.

A9369

GASKET

- PTO clutch adjusting hole cap (A9368)

1шт.

A9463

HOUSING - PTO and hydraulic pump (consists of housing with 1 - A9368 cap, 1 - A9369 gasket and 2 - 3/8" x 3/4" N.C. hex. bolts with lockwashers)

1шт.

5/8" x 1-1/2" N.C. hex. bolt with lockwasher

4шт.

5/8" x 8-1/2" N.C. hex. bolt with lockwasher

2шт.

1/2" x 1-1/2" N.C. hex. bolt with lockwasher

2шт.

3/4" std. pipe elbow

1шт.

3/4" sq. hd. pipe plug

1шт.

1/8" sq. hd. pipe plug

1шт.

1/2" sq. hd. pipe plug

1шт.

1-3/16" Welch plug

1шт.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

A6148A

COVER - hydraulic pump opening (standard 4-wheel tractor)

1шт.

1/2" x 1-1/2" N.C. hex. bolt with lockwasher

2шт.

6503A

HOUSING (use A9463)

1шт.

6505A

CARRIER - PTO shaft rear bearing

1шт.

6509A

ELBOW (use 4931AA)

1шт.

6510A

ELBOW (use 4932AA)

1шт.

6511A

ELBOW - hydraulic pump filter

1шт.

6512A

COVER (use 4933AA)

1шт.

6513A

COVER - PTO shaft opening

1шт.

6514A

COVER - PTO clutch shaft opening

1шт.

6515A

COVER - PTO and hydraulic pump drive shaft opening (standard 4-wheel tractor)

1шт.

1/2" x 1-1/4" N.C. hex. bolt with lockwasher

4шт.

O800AB

STUD - in housing, for hydraulic pump filter elbow

1шт.

3/8" N.F. hex. nut

1шт.

3/8" std. lockwasher

1шт.

O2983AB

STUD - PTO and hydraulic pump housing (short)

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.

O8422AB1

X

GASKET - hydraulic pump opening cover or hydraulic valve body

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8445AB

X

JOINT - ball, hydraulic valve control rod

2шт.

5/16" std. lockwasher

2шт.

O8447AB

X

"O" RING - PTO shaft opening cover

1шт.

O8578AB1

STUD - valve control hand lever mounting (for orchard tractors only) (see A7604)

1шт.

3/4" Shakeproof int. tooth lockwasher #1232-00

1шт.

O8755AB

X

FILTER - oil, hydraulic pump

1шт.

O9185AB

X

STUD - PTO shaft bearing carrier or hydraulic pump opening cover

2шт.

1/2" N.F. hex. nut

2шт.

1/2" internal tooth Shakeproof lockwasher #1224-00

2шт.

O9222AB

X

RETAINER - hydraulic pump filter

1шт.

O9223AB

HOSE - hydraulic, cylinder to pump and R.H. valve to filter cover (3/8" I.D. x 13" long) (for high clearance tractors without Eagle Hitch)

2шт.

O9639AB

X

SNAP RING - for 08578AB1 stud (orchard tractors only)

1шт.

O10021AB

X

"O" RING - PTO clutch shaft opening cover (6514A)

1шт.

O10888AB

X

SNAP RING - PTO clutch shaft opening cover

1шт.

O10898AB

STUD - PTO shaft opening cover or PTO shaft bearing carrier

2шт.

5/8" N.F. hex. nut

2шт.

5/8" internal tooth Shakeproof lockwasher #1228-00

2шт.

O10910AB

GASKET

- hydraulic pump, for 4931AA and 4932AA elbows

2шт.

O10911AB

X

GASKET - for 4933AA filter cover

1шт.

O10913AB

X

GASKET - A9463 housing to transmission case

1шт.

O10914AB

STUD - PTO and hydraulic pump housing (5/8" x 9-1/2" long)

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.

O10915AB

X

DOWEL PIN - A9463 housing to transmission case

2шт.

O10917AB

PLUG - pipe, 3/4" Lisle magnetic sq. hd., for PTO and hydraulic pump housing

1шт.

O10919AB

GASKET - for 6515A cover (standard 4-wheel tractor)

1шт.

V22152

CAP

PLUG - Welch, hydraulic pump housing (1-1/2" dia.)

2шт.

VR2695

X

YOKE END - hydraulic valve control rod

2шт.

VT3399

PLUG - Welch, hydraulic pump housing (1" dia.)

1шт.

VT3476

STUD - hydraulic valve body or hydraulic pump opening cover

2шт.

1/2" N.F. hex. nut

2шт.

1/2" std. lockwasher

2шт.

4931AA

ELBOW - hydraulic pump inlet, with tube and screen

1шт.

5/16" x 1" N.C. hex. bolt with lockwasher

2шт.

4932AA

ELBOW - hydraulic pump outlet, with tube

1шт.

5/16" x 2" N.C. hex. bolt with lockwasher

1шт.

4933AA

COVER - hydraulic pump filter, with tube

1шт.

3/8" x 1-1/8" N.C. hex. bolt with lockwasher

3шт.

3/32" x 1-1/8" cotter pin

1шт.

1/2" sq. hd. pipe plug

1шт.

A28264

GASKET

1шт.

Seals from the sump to the pump. rectangular shaped O-ring, Described as a HYD pump elbow gasket.

1шт.
