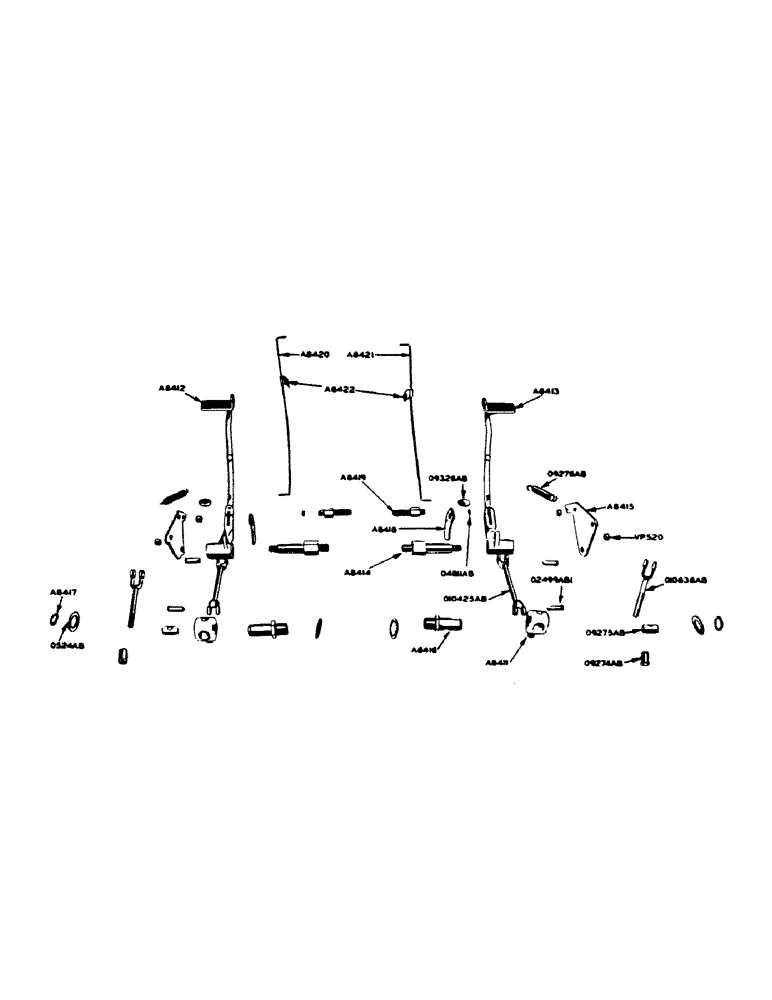

Запчасти Case IH 400-SERIES (127) - BRAKE PEDALS AND CROSS SHAFT, FOR ORCHARD MODELS (07) - BRAKES

A8411

LEVER - brake

2шт.

A8412

PEDAL - brake, R.H.

1шт.

1/8" str. Lincoln fitting No. 5000

1шт.

A8413

PEDAL - brake, L.H.

1шт.

1/8" str. Lincoln fitting No. 5000

1шт.

A8414

STUD - brake pedal mounting

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.

A8415

PLATE - brake pedal support

2шт.

1/2" x 4-1/2" N.C. hex. bolt with lockwasher

2шт.

1/2" x 5-1/2" N.C. hex. bolt with lockwasher

2шт.

A8416

STUD - brake lever

2шт.

1/8" - 45 degree Lincoln fitting No. 5200

2шт.

1/8" shakeproof int. tooth lockwasher #1238-00

2шт.

A8417

RING, SNAP

SNAP RING - brake trunnion lever stud

2шт.

A8418

RATCHET - brake pedal

2шт.

A8419

STUD - brake ratchet

2шт.

A8420

HANDLE - brake pedal ratchet, R.H.

1шт.

1/16" x 1/2" cotter pin

1шт.

A8421

HANDLE - brake pedal ratchet, L.H.

1шт.

1/16" x 1/2" cotter pin

1шт.

A8422

CLIP - brake ratchet handle, on axle housing

2шт.

O524AB

WASHER - brake lever stud (1-7/8" O.D. x 1-9/64" I.D. #10 ga.)

2шт.

O2499AB1

X

PIN - for 010425AB rod

4шт.

1/8" x 1" cotter pin

4шт.

O4811AB

X

SNAP RING - brake pedal ratchet stud

2шт.

O9276AB

X

SPRING - brake pedal return

2шт.

O9326AB

X

PAWL - brake ratchet

2шт.

1/8" x 3/4" N.C. hex. bolt with lockwasher

2шт.

O10425AB

ROD - brake control

2шт.

VP520

X

SPACER - brake pedal support plate

4шт.
