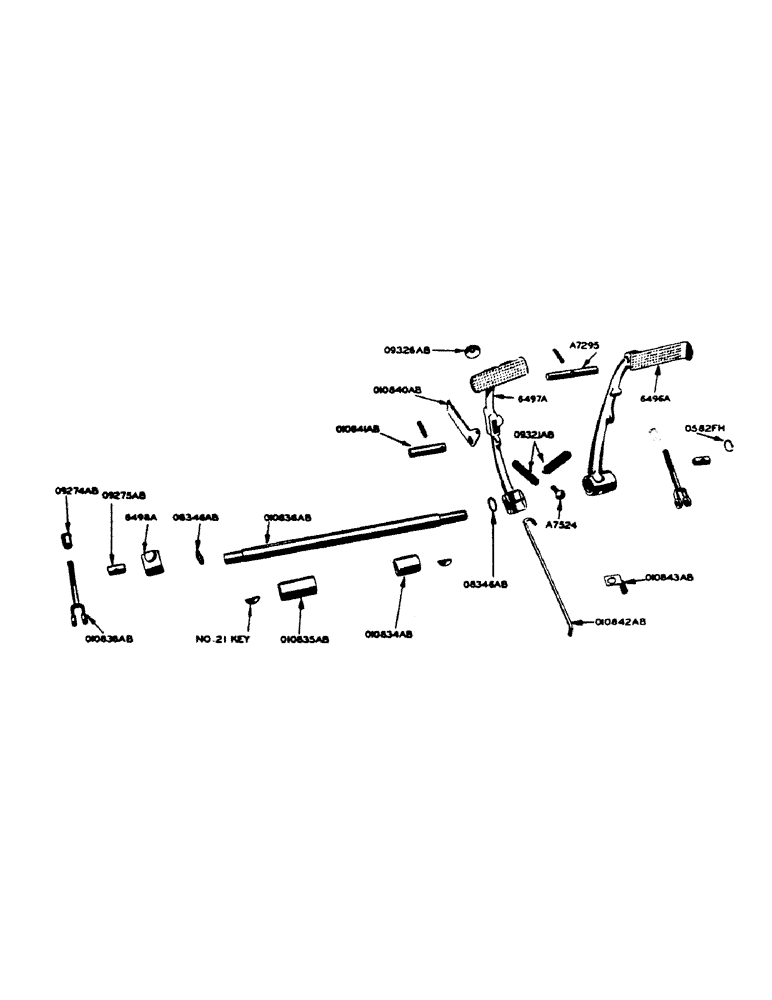

Запчасти Case IH 400-SERIES (126) - BRAKE PEDALS AND CROSS SHAFT, FOR ALL BUT ORCHARD MODELS (07) - BRAKES

A7295

PIN - brake pedal lock

1шт.

3/8" x 2" type 1 groove pin

1шт.

A7524

SCREW - brake pedal return spring (in platform)

1шт.

3/8" N.C. hex. nut and lockwasher

1шт.

6496A

PEDAL - brake, R.H.

1шт.

6497A

PEDAL - brake, L.H.

1шт.

1/2" x 2-1/2" N.F. hex. bolt with hex. nut and lockwasher

1шт.

6498A

LEVER - brake

1шт.

1/2" x 1-3/4" N.C. hex. bolt with lockwasher

1шт.

O8346AB

X

"O" RING - brake cross shaft

2шт.

O9321AB

X

SPRING - brake pedal return

2шт.

O9326AB

X

PAWL - brake ratchet

1шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher

1шт.

O10834AB

X

SLEEVE - brake cross shaft bearing, R.H.

1шт.

O10835AB

X

SLEEVE - brake cross shaft, L.H.

1шт.

O10836AB

SHAFT - cross, brake pedal

1шт.

1/8" str. Lincoln fitting No. 5000

1шт.

No. 21 Woodruff key

2шт.

O10840AB

RATCHET - brake pedal

1шт.

O10841AB

PIN - fulcrum, brake pedal ratchet

1шт.

3/8" x 1-3/4" N.C. sp. hd. flat point set screw with hex. jam nut

1шт.

O10842AB

HANDLE - brake pedal ratchet

1шт.

O10843AB

X

CLIP - brake ratchet handle

1шт.

O582FH

X

SNAP RING - brake pedal cross shaft

1шт.
