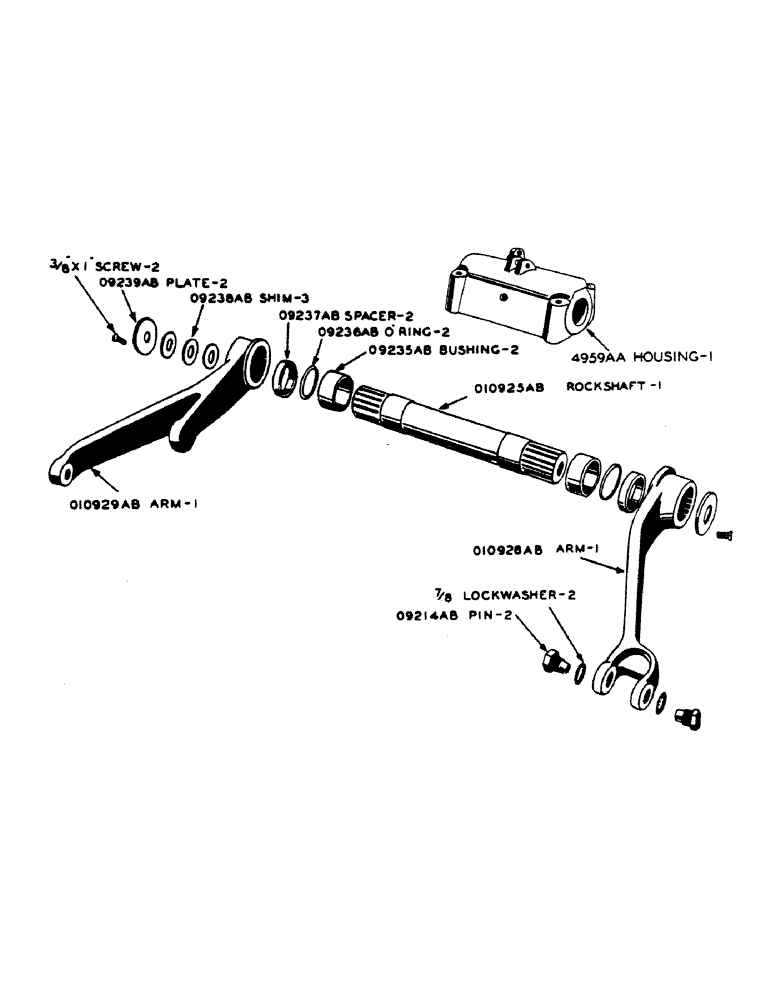

Запчасти Case IH 400-SERIES (217) - EAGLE PITCH ROCKSHAFT (06) - POWER TRAIN

6517A

HOUSING (use 4959AA)

1шт.

O9214AB

X

PIN - leveling screw mounting

2шт.

7/8" Shakeproof internal tooth lockwasher #1234

2шт.

O9235AB

X

BUSHING - rockshaft

2шт.

O9236AB

X

"O" RING - rockshaft

2шт.

O9237AB

X

SPACER - rockshaft "O"ring

2шт.

O9238AB

SHIM - rockshaft adjusting (#30 gauge)

3шт.

O9239AB

PLATE - lock, rockshaft lift arm

2шт.

3/8" x 1" N.C. flat hd. mach. screw

2шт.

O10925AB

ROCKSHAFT - eagle hitch

1шт.

O10928AB

ARM - rockshaft lift, R.H.

1шт.

O10929AB

ARM - rockshaft lift, L.H.

1шт.

4959AA

X

HOUSING - rockshaft, with 09234AB bushings

1шт.

5/8" x 4-1/4" N.C. hex. bolt with lockwasher

4шт.

1/2" sq. hd. pipe plug

1шт.
