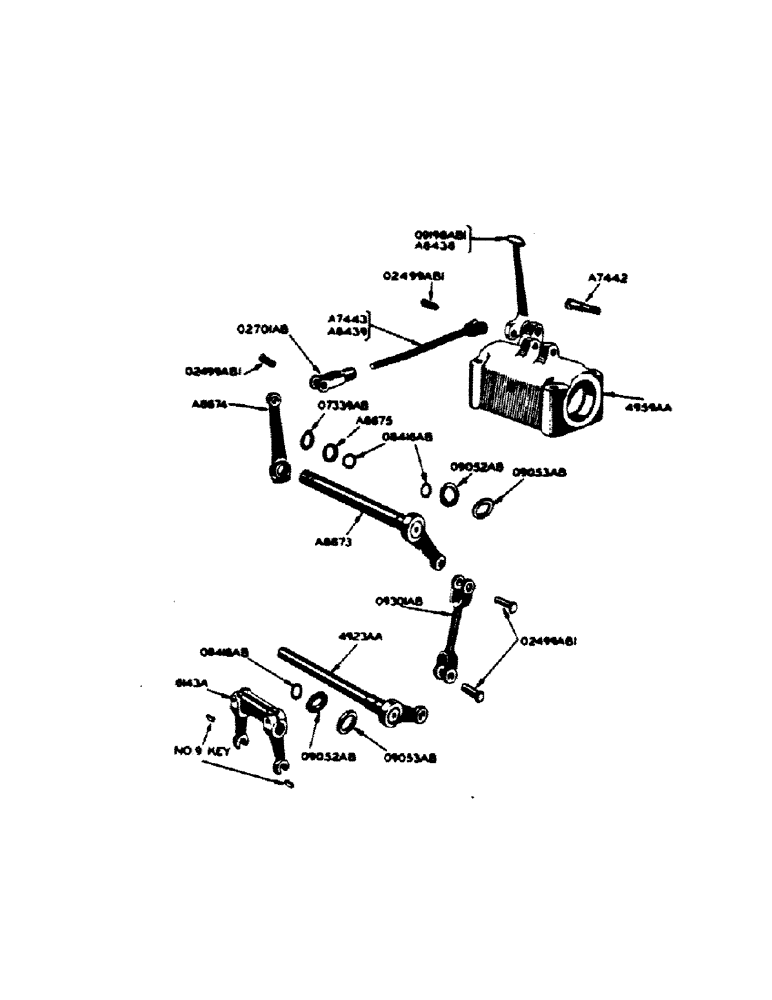

Запчасти Case IH 400-SERIES (200) - PTO CLUTCH THROWOUT (06) - POWER TRAIN

A7442

PIN - PTO clutch hand lever mounting

1шт.

5/8" N.F. hex. jam nut

1шт.

5/8" std. lockwasher

1шт.

A7443

ROD - PTO clutch hand control (for all tractors except orchard models) (see A8439)

1шт.

1/2" N.F. hex. jam nut

1шт.

A8438

LEVER - hand, PTO clutch (for orchard tractors only) (see 09198AB1)

1шт.

1/8" - 90deg. Lincoln fitting no. 5400

1шт.

A8439

ROD - PTO clutch hand control (for orchard tractors only) (see A7443)

1шт.

1/2" N.F. hex. jam nut

1шт.

A8673

SHAFT - cross, PTO clutch control

1шт.

A8674

LEVER - for A8673 cross shaft, long (see 010897AB)

1шт.

5/16" x 1-1/8" N.C. hex. bolt with lockwasher

1шт.

A8675

WASHER - felt, for A8673 cross shaft

1шт.

6143A

X

YOKE - PTO clutch throwout

1шт.

5/16" x 1-1/4" N.C. hex. bolt with lockwasher

2шт.

O2499AB1

X

PIN - yoke end, 2 for 09301AB rod and 2 for hand lever control

4шт.

1/8" x 1" cotter pin

4шт.

O2701AB

X

YOKE END - clutch throwout rod

1шт.

O7339AB

WASHER - felt retainer (used with A8673 and A8674)

1шт.

O8416AB

X

"O" RING - 1 for 4923AA and 2 for A8673 shafts

3шт.

O9052AB

X

WASHER - felt, for 4923AA and A8673 shafts

2шт.

O9053AB

X

RETAINER - for 09052AB felt washer

2шт.

O9198AB1

LEVER - hand, PTO clutch (for all tractors except orchard models) (see A8438)

1шт.

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

O9301AB

ROD - PTO clutch control

1шт.

O10896AB

SEAL - for 4924A cross shaft (prior to tractor no. 8065071)

1шт.

O10897AB

LEVER - for 4924AA cross shaft, long (prior to tractor no. 8065071) (see A8674)

1шт.

5/16" x 1-1/8" N.C. hex. bolt with lockwasher

1шт.

4923AA

SHAFT - clutch throwout

1шт.

NO. 9 Woodruff key

2шт.

4924AA

SHAFT - cross, PTO clutch control (prior to tractor no. 8065071) (use 1 - A8673, 1 - A8674, 1 - A8675 and 1 - 07339AB)

1шт.
