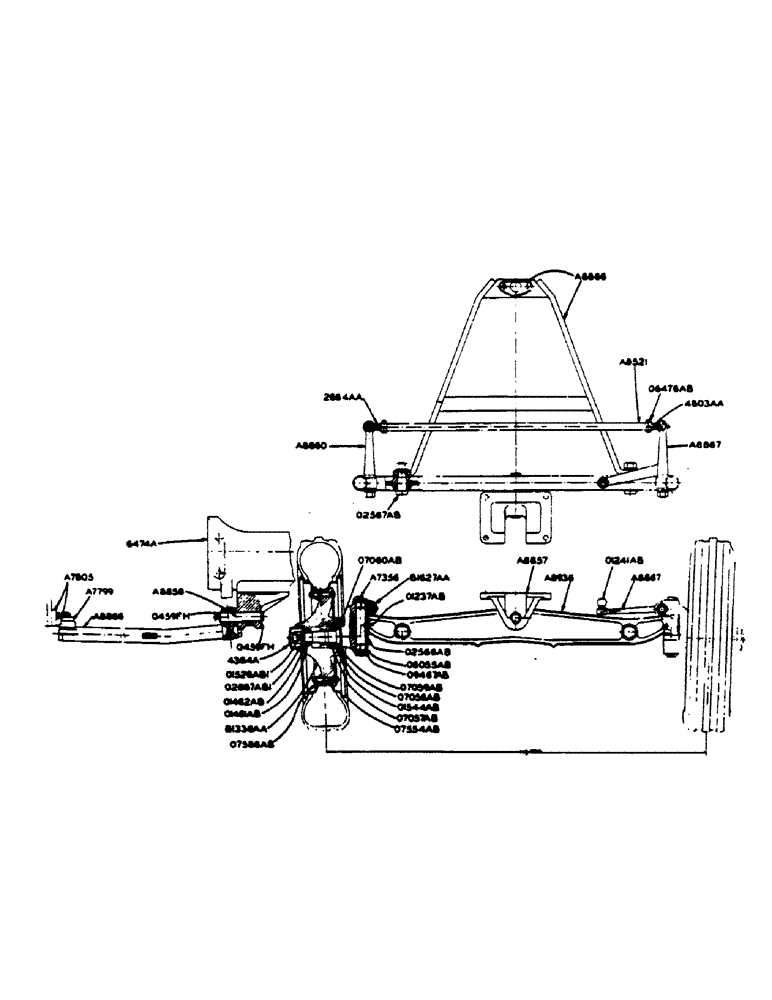

Запчасти Case IH 400-SERIES (185) - FRONT AXLE AND WHEEL ASSEMBLY, FOR ORCHARD TRACTORS (06) - POWER TRAIN

A7356

PLUG

- steering spindle

4шт.

A7799

X

CAP - radius rod ball socket

1шт.

1/2" x 3-3/4" N.F. hex. bolt w/hex nut and lockwasher

2шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A7805

BALL - radius rod pivot, with support

1шт.

1/2" x 2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A8857

PEDESTAL - front axle

1шт.

5/8" x 2" N.C. hex. bolt w/lockwasher

4шт.

A8858

PIN - front axle pivot

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

A8866

ROD

- radius, front axle

1шт.

A8936

AXLE - front

1шт.

6474A

BRACKET - radiator

1шт.

3/4" x 2" N.C. hex. bolt w/lockwasher

4шт.

O1237AB

X

LOCK - front axle king pin

2шт.

1/2" N.F. hex. nut

2шт.

1/2" std. lockwasher

2шт.

O2566AB

X

BEARING - thrust, front axle (Timken no. T-126)

2шт.

O2567AB

X

BOLT - radius rod front

2шт.

1" N.F. hex. nut

2шт.

1" shakeproof ext. tooth lockwasher no. 1136-00

2шт.

O6055AB

BUSHING - front wheel spindle

4шт.

O9467AB

PIN - king, front axle

2шт.

O459FH

X

SNAP RING - front axle pivot pin

2шт.

B1627AA

SPINDLE - front wheel steering, with 2-06055AB bushing, 01528AB1 lockwasher, 02887AB1 washer, 1" N.F. hex. jam nut and 1/8" str. Lincoln fitting

2шт.
