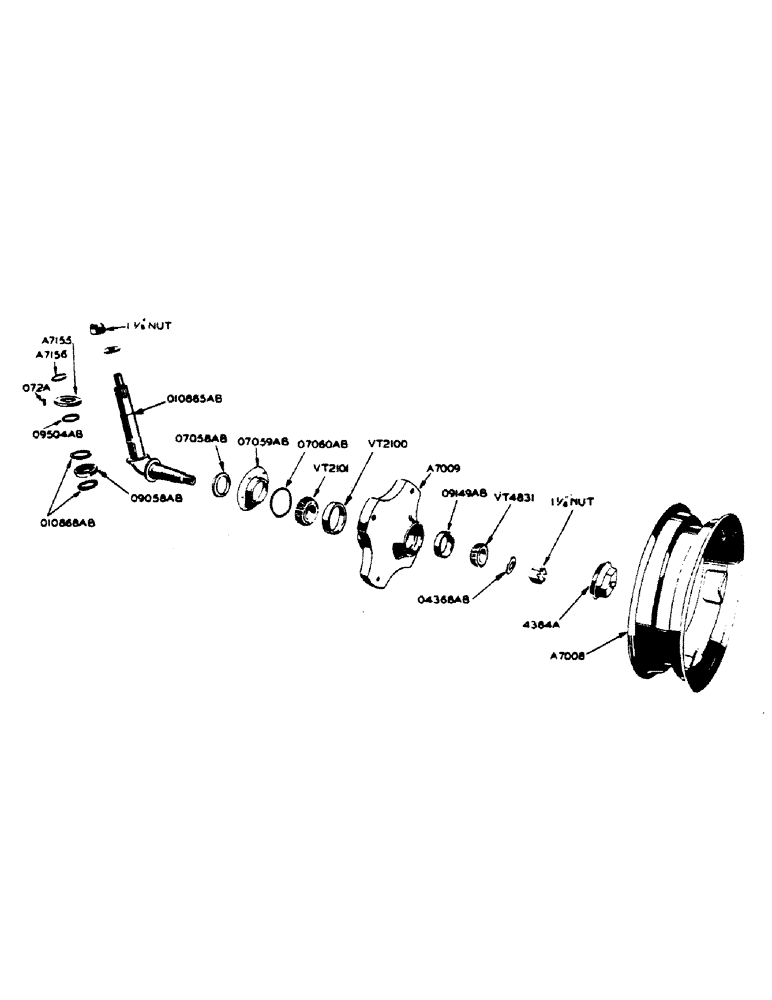

Запчасти Case IH 400-SERIES (183) - FRONT WHEEL AND SPINDLE FOR PNEUMATIC TIRES, FOR STANDARD FOUR WHEEL TRACTOR (06) - POWER TRAIN

A7008

RIM

- front wheel, with clamps (4.25KA-16) (for 6.00-16 4-ply tires)

2шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

A7009

SPARE PART

WHEEL - front, with 09149AB and VT2100 bearing cup

2шт.

A7155

SHIELD

- dust, front wheel spindle

2шт.

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - front wheel spindle dust shield

2шт.

A7395

RIM - front wheel, with clamps (5.50F-16) (for 7.50-16 4 or 6- ply tires)

2шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

A7929

WHEEL - (use A7931)

1шт.

A7930

RIM - front wheel, with clamps (5.50F-20 for A7931 wheel for 7.50-20 6-ply tires)

2шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasherr

8шт.

A7931

WHEEL

- front, with 09149AB and VT2100 bearing cups, for 7.50-20 6-ply tires

2шт.

4384A

X

CAP - front wheel hub

2шт.

6485A

WHEEL - front (use A7009)

1шт.

O72A

DOWEL PIN - front wheel spindle dust shield

2шт.

O4368AB

X

WASHER - front wheel spindle

2шт.

O7058AB

X

SEAL - front wheel

2шт.

O7059AB

X

RETAINER - front wheel seal

2шт.

1/4" x 5/8" N.C. flat ctsk. hd. machine screw

10шт.

O7060AB

X

SEAL - front wheel retainer

2шт.

O9058AB

X

BEARING - thrust, front wheel spindle (Timken no. T-199)

2шт.

O9149AB

X

CUP - front wheel outer bearing (Timken no. 25820)

2шт.

O9150AB

X

CONE - front wheel outer bearing (Timken no. 25878) (use VT4831)

1шт.

O9504AB

X

OIL SEAL - front wheel spindle, upper

2шт.

O10865AB

SPINDLE - front wheel

2шт.

1-1/8" N.F. hex. castle nut

2шт.

1-1/8" N.F. light thick slotted nut

2шт.

1-1/8" plain washer

2шт.

3/16" x 1-3/4" cotter pin

4шт.

O10868AB

X

WASHER - thrust, front wheel spindle

4шт.

VT2100

X

CUP - front wheel inner bearing (Timken no. 25520)

2шт.

VT2101

X

CONE - front wheel inner bearing (Timken no. 25580)

2шт.

VT4831

X

CONE - front wheel outer bearing (Timken no. 25877)

2шт.
