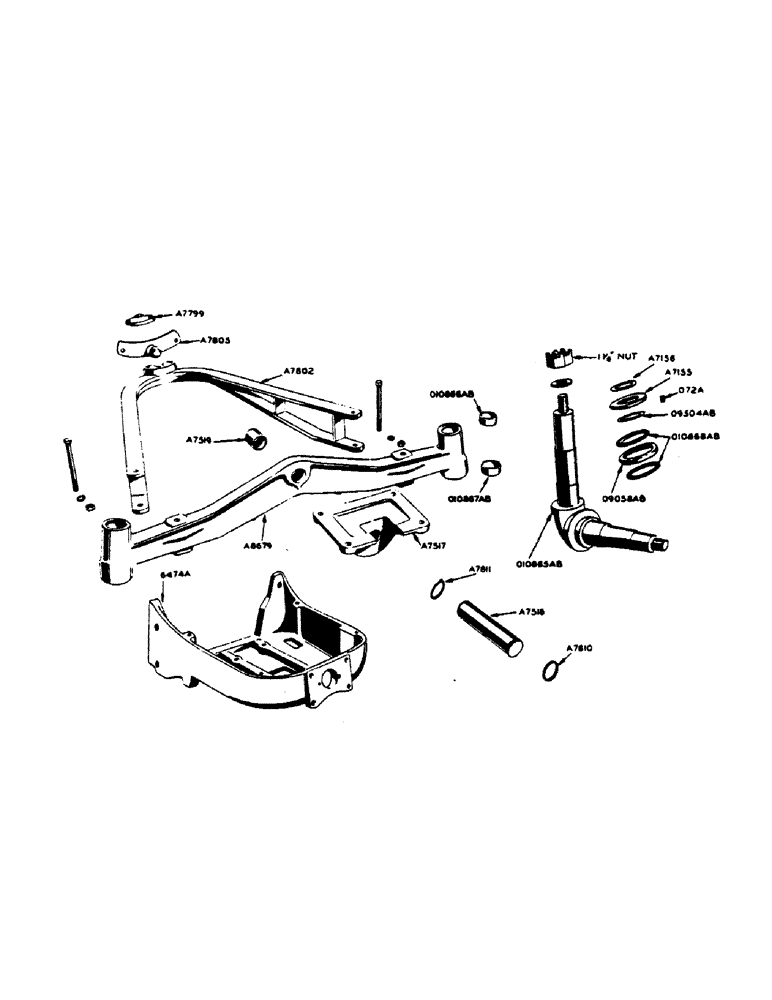

Запчасти Case IH 400-SERIES (182) - FRONT AXLE AND RADIUS ROD, FOR STANDARD FOUR WHEEL TRACTORS (06) - POWER TRAIN

A7155

SHIELD

- dust, front wheel spindle

2шт.

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - front wheel spindle dust shield

2шт.

A7517

PEDESTAL - front axle

1шт.

5/8" x 2" N.C. hex. bolt w/lockwasher

4шт.

A7518

PIN - front axle pivot

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

A7519

X

BUSHING - front axle pivot pin

1шт.

A7610

RING, SNAP

SNAP RING - front axle pivot pin, front

1шт.

A7611

SNAP RING,#175, Ext

Ring, Snap, , front axle pivot pin, rear #175, Ext

1шт.

A7799

X

CAP - radius rod ball socket

1шт.

1/2" x 3-3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A7802

ROD - radius

1шт.

5/8" x 6" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A7805

BALL - radius rod pivot, with support

1шт.

1/2" x 2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A8351

ARBOR - for pressing in 010867AB needle bearings into front axle

1шт.

A8354

ARBOR - for pressing 010866AB needle bearing into front axle

1шт.

A8679

AXLE - front, with 1-A7519 bushing

1шт.

6474A

BRACKET - radiator

1шт.

3/4" x 2" N.C. hex. bolt w/lockwasher

4шт.

O72A

DOWEL PIN - front wheel spindle dust shield

2шт.

O9058AB

X

BEARING - thrust, front wheel spindle (Timken no. T-199)

2шт.

O9504AB

X

OIL SEAL - front wheel spindle, upper

2шт.

O10865AB

SPINDLE - front wheel

2шт.

1-1/8" N.F. hex. castle nut

2шт.

1-1/8" N.F. light thick slotted nut

2шт.

1-1/8" plain washer

2шт.

3/16" x 1-3/4" cotter pin

4шт.

O10866AB

X

BEARING - needle, front wheel spindle, upper (Torrington no. B-2816)

2шт.

O10867AB

X

BEARING - needle, front wheel spindle, lower (Torrington no. B-3216-OH)

2шт.

O10868AB

X

WASHER - thrust, front wheel spindle

4шт.
