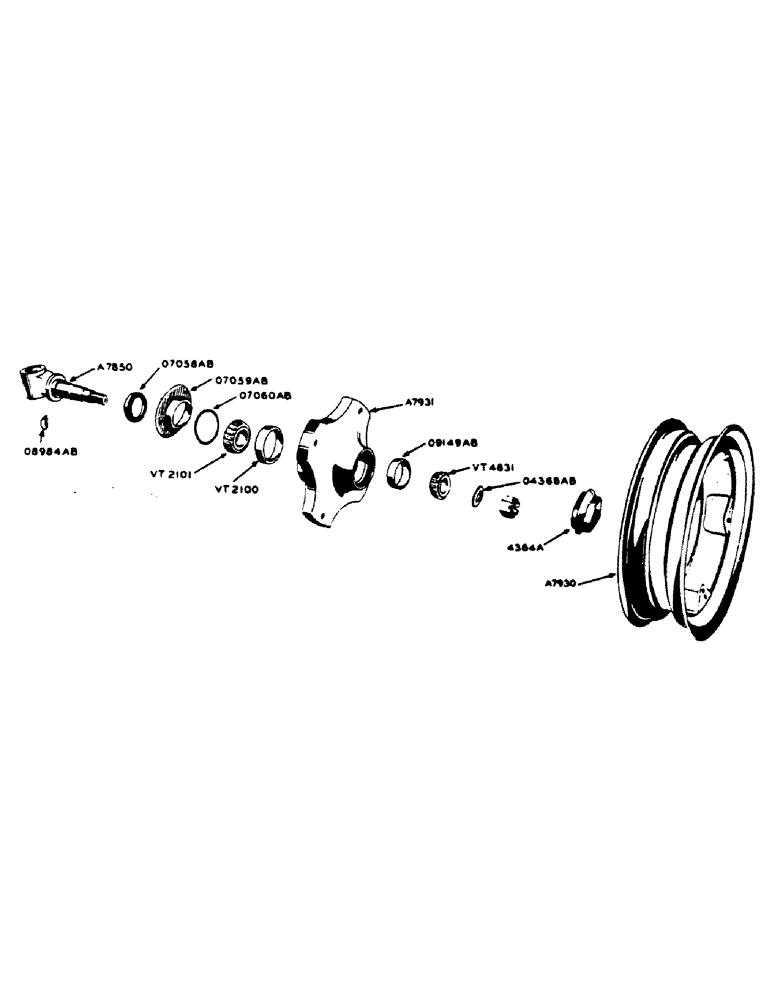

Запчасти Case IH 400-SERIES (180) - FRONT WHEEL, FOR HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

A7850

SPINDLE - front wheel

2шт.

1-1/8" N.F. hex. castle nut

2шт.

3/16" x 1-3/4" cotter pin

2шт.

A7929

WHEEL - (use A7931)

2шт.

A7930

RIM - front wheel, with clamps (5.50 F-20) (for A7931 wheel for 7.50-20 4-ply tires)

2шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

A7931

WHEEL

- front, with 09149AB and VT2100 bearing cups, for 7.50-20 4-ply tires

2шт.

4384A

X

CAP - front wheel hub

2шт.

O4368AB

X

WASHER - front wheel spindle

2шт.

O7058AB

X

SEAL - front wheel

2шт.

O7059AB

X

RETAINER - front wheel seal

2шт.

1/4" x 5/8" N.C. flat ctsk. hd. machine screw

10шт.

O7060AB

X

SEAL - front wheel retainer

2шт.

O8984AB

X

KEY - vertical spindle (#129 Woodruff hardened)

2шт.

O9149AB

X

CUP - bearing, front wheel outer (Timken no. 25820)

2шт.

VT2100

X

CUP - bearing, front wheel inner (Timken no. 25520)

2шт.

VT2101

X

CONE - front wheel inner bearing (Timken no. 25580)

2шт.

VT4831

X

CONE - front wheel outer bearing (Timken no. 25877)

2шт.
