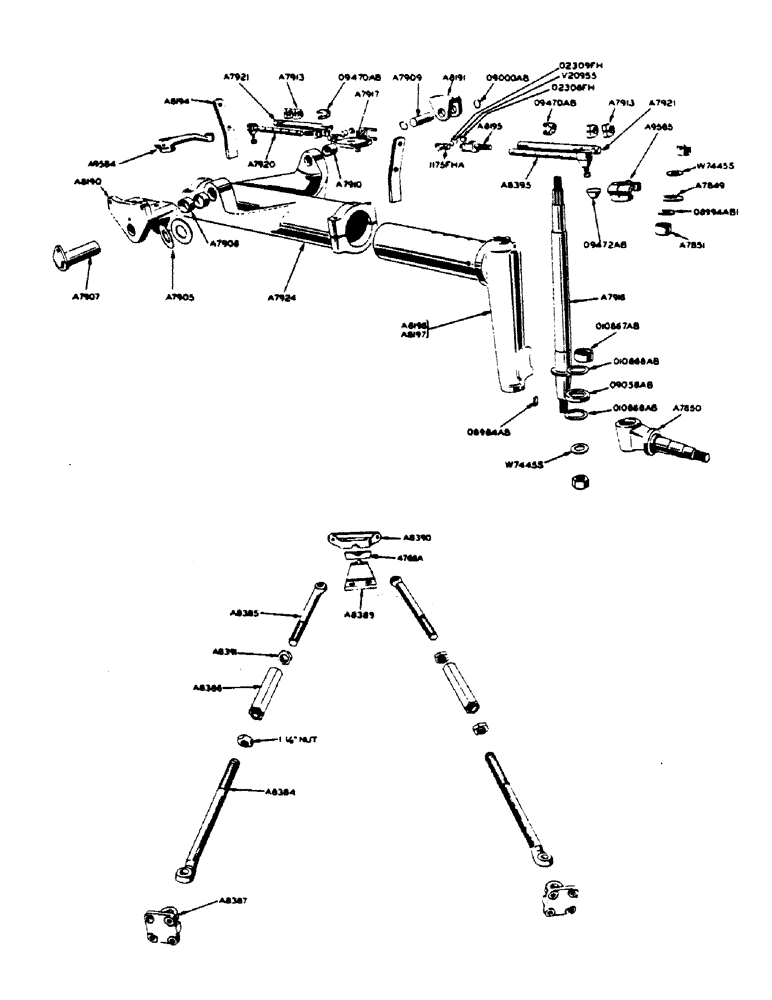

Запчасти Case IH 400-SERIES (178) - FRONT AXLE, FOR HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

A7849

GUARD

SHIELD - dust, vertical spindle

2шт.

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING - needle, vertical spindle, upper (Torrington no. B-2416- OH)

2шт.

A7904

HOUSING - (use A7924)

2шт.

A7905

WASHER - thrust, front axle pivot pin

2шт.

A7907

PIN - front axle pivot, front

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

A7908

BUSHING

- front axle front pivot pin

2шт.

A7909

PIN - pivot, front axle, rear

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

A7910

BUSHING - front axle rear pivot pin

1шт.

A7913

CLAMP - front axle notched tie rod

4шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

A7916

SPINDLE - vertical, for wheel

2шт.

1-1/8" N.F. hex. nut

2шт.

1-1/8" N.F. hex. castle nut

2шт.

3/16" x 1-3/4" cotter pin

2шт.

1-1/8" std. lockwasher

2шт.

A7917

ARM - steering

1шт.

5/8" x 1-1/2" N.F. hex. bolt

4шт.

5/8" shakeproof ext. tooth lockwasher #1128-00

4шт.

A7920

TIE ROD - front axle, notched, R.H.

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

1/8" x 1-1/4" cotter pin

1шт.

A7921

TUBE - front axle tie rod

2шт.

A7924

HOUSING - front axle, with 2-A7908 and 1-A7910 bushings

1шт.

3/4" x 6" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

3/4" x 8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A8190

PEDESTAL - front axle, front

1шт.

5/8" x 2" N.C. hex. bolt w/lockwasher

4шт.

A8191

PEDESTAL - front axle, rear

1шт.

5/8" x 2" N.C. hex. bolt w/lockwasher

2шт.

A8192

HOUSING - (use A8196)

1шт.

A8193

HOUSING - (use A8197)

1шт.

A8194

STOP - front axle pivot

2шт.

3/4" x 1-3/4" N.C. hex. bolt w/lockwasher

4шт.

A8195

YOKE END - adjustable tie rod

2шт.

A8196

AXLE - outer section, R.H.

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A8197

AXLE - outer section, L.H.

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A8395

TIE ROD - front axle, notched, L.H.

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

1/8" x 1-1/4" cotter pin

1шт.

A9584

ARM - front wheel steering, R.H., with 1-1/2" x 3" N.F. hex. bolt, nut and lockwasher

1шт.

A9585

SPARE PART

ARM - front wheel steering, L.H. with 1-1/2" x 3" N.F. hex. bolt, nut and lockwasher

1шт.

O8984AB

X

KEY - vertical spindle (#129 Woodruff hardened key)

2шт.

O8994AB1

X

OIL SEAL - vertical spindle

2шт.

O9000AB

X

SNAP RING - front axle rear pivot pin

2шт.

O9058AB

X

BEARING - thrust, vertical spindle (Timken no. T199)

2шт.

O9470AB

CLAMP - tie rod tube

2шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

O9472AB

X

SEAL - rubber, dust cover, for tie rod socket

2шт.

O10867AB

X

BEARING - needle, vertical spindle, lower (Torrington no. B-3216-OH)

2шт.

O10868AB

X

WASHER - thurst, vertical spindle

4шт.

W-7445-S

WASHER - vertical spindle

4шт.

1175FHA

X

CROSS - center, tie rod universal joint, complete (consists of center cross with 4-V20955 snap rings, 4-02308FH bushings, 4-02308FH cork washers and 1-#5300 Lincoln fitting 1/8" - 67-1/2 degree)

2шт.

A8384

ROD - truss, front, axle reinforcement, special, for high clearance tractors

2шт.

7/8" x 2-1/2" N.F. hex. bolt w/hex nut and lockwasher, front axle reinforcement, special, for high clearance tractors

2шт.

1-1/4" N.F. hex. jam nut, front axle reinforcement, special, for high clearance tractors

2шт.

A8385

ROD - truss, rear, front axle reinforcement, special, for high clearance tractors

2шт.

7/8" x 2-1/2" N.F. hex. bolt w/hex. nut and lockwasher, front axle reinforcement, special, for high clearance tractors

2шт.

A8386

TURNBUCKLE - truss rod, front axle reinforcement, special, for high clearance tractors

2шт.

A8387

BRACKET - truss rod, front axle reinforcement, special, for high clearance tractors

2шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher, front axle reinforcement, special, for high clearance tractors

8шт.

A8389

BALL - pivot, and bracket, front axle reinforcement rod, special, for high clearance tractors

1шт.

A8390

SOCKET - truss rod ball, front axle reinforcement, special, for high clearance tractors

1шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher, front axle reinforcement, special, for high clearance tractors

2шт.

A8391

NUT - jam, truss rod (1-1/4" N.F. left hand thrd.), front axle reinforcement, special, for high clearance tractors

2шт.

4766A

CAP - pivot ball socket, front axle reinforcement, special, for high clearance tractors

1шт.

5/8" x 3-1/4" N.F. hex. bolt w/hex. nut and lockwasher, front axle reinforcement, special, for high clearance tractors

2шт.
