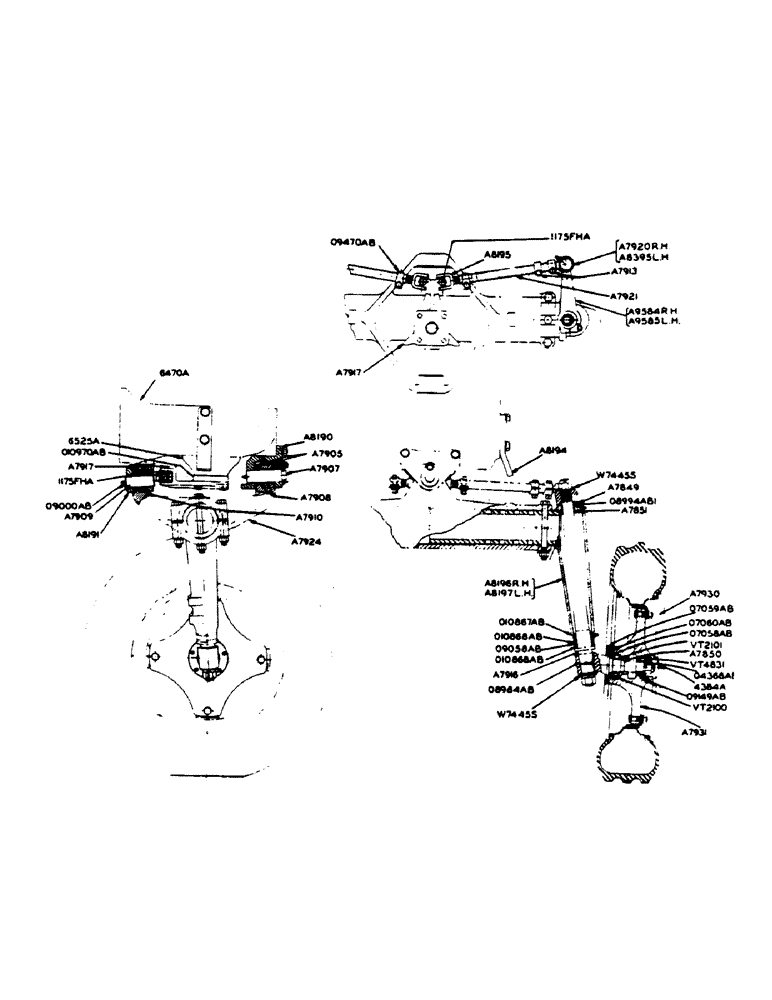

Запчасти Case IH 400-SERIES (177) - FRONT AXLE AND WHEEL ASSEMBLY, FOR HIGH CLEARANCE TRACTORS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A7849
GUARD
SHIELD - dust, vertical spindle
2шт.
A7851
NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W
BEARING - needle, vertical spindle, upper (Torrington no. B-2416-OH)
2шт.
A7904
HOUSING (use A7924)
1шт.
A7905
WASHER - thrust, front axle pivot pin
2шт.
A7907
PIN - front axle pivot, front
1шт.
1/2" x 1-1/4" N.C. hex. bolt w/lockwasher
1шт.
1/8" - 90deg. Lincoln fitting no. 5400
1шт.
A7908
BUSHING
- front axle front pivot pin
2шт.
A7909
PIN - pivot, front axle, rear
1шт.
1/8" - 90deg. Lincoln fitting no. 5400
1шт.
A7910
BUSHING - front axle rear pivot pin
1шт.
1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher
4шт.
A7916
SPINDLE - vertical, for wheel
2шт.
1-1/8" N.F. hex. nut
2шт.
1-1/8" N.F. hex. castle nut
2шт.
3/16" x 1-3/4" cotter pin
2шт.
1-1/8" std. lockwasher
2шт.
A7917
ARM - steering
1шт.
5/8" x 1-1/2" N.F. hex. bolt
4шт.
5/8" shakeproof ext. tooth lockwasher #1128-00
4шт.
A7920
TIE ROD - front axle, notched, R.H.
1шт.
1/8" - 90deg. Lincoln fitting no. 5400
1шт.
1/8" x 1-1/4" cotter pin
1шт.
A7921
TUBE - front axle tie rod
2шт.
A7924
HOUSING - front axle, with 2 - A7908 and 1 - A7910 bushings
1шт.
3/4" x 6" N.F. hex. bolt w/hex. nut and lockwasher
4шт.
3/4" x 8" N.F. hex. bolt w/hex. nut and lockwasher
2шт.
A8190
PEDESTAL - front axle, front
1шт.
5/8" x 2" N.C. hex. bolt w/lockwasher
4шт.
A8191
PEDESTAL - front axle, rear
1шт.
5/8" x 2" N.C. hex. bolt w/lockwasher
2шт.
A8192
HOUSING (use A8196)
1шт.
A8193
HOUSING (use A8197)
1шт.
A8194
STOP - front axle pivot
2шт.
3/4" x 1-3/4" N.C. hex. bolt w/lockwasher
4шт.
A8195
YOKE END - adjustable tie rod
2шт.
A8196
AXLE - outer section, R.H.
1шт.
1/8" - 90deg. Lincoln fitting no. 5400
1шт.
1/8" str. Lincoln fitting no. 5000
1шт.
A8197
AXLE - outer section, L.H.
1шт.
1/8" - 90deg. Lincoln fitting no. 5400
1шт.
1/8" str. Lincoln fitting no. 5000
1шт.
A8395
TIE ROD - front axle, notched, L.H.
1шт.
1/8" - 90deg. Lincoln fitting no. 5400
1шт.
1/8" x 1-1/4" cotter pin
1шт.
A9584
ARM - front wheel steering, R.H. with 1 - 1/2" x 3" N.F. hex. bolt, nut and lockwasher
1шт.
A9585
SPARE PART
ARM - front wheel steering, L.H., with 1 - 1/2" x 3" N.F. hex. bolt, nut and lockwasher
1шт.
O8984AB
X
KEY - vertical spindle (#129 Woodruff hardened key)
2шт.
O8994AB1
X
OIL SEAL - verticle spindle
2шт.
O9000AB
X
SNAP RING - front axle rear pivot pin
2шт.
O9058AB
X
BEARING - thrust, vertical spindle (Timken no. T-199)
2шт.
O9470AB
CLAMP - tie rod tube
2шт.
1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher
2шт.
O9472AB
X
SEAL - rubber, dust cover, for tie rod socket
2шт.
O10867AB
X
BEARING - needle, vertical spindle, lower (Torrington no. B-3216-OH)
2шт.
O10868AB
X
WASHER - thrust, vertical spindle
4шт.
W-7445-S
WASHER - vertical spindle
4шт.
1175FHA
X
CROSS - center, tie rod universal joint, complete (consists of center cross with 4 - V20955 snap rings, 4 - 02308FH bushings, 4-02309FH cork washers and 1 - #5300 Lincoln fitting 1/8" - 67-1/2deg.
2шт.
A8384
ROD - truss, front, axle reinforcement, special, for high clearance tractors
2шт.
7/8" x 2-1/2" N.F. hex. bolt w/hex. nut and lockwasher, front axle reinforcement, special, for high clearance tractors
2шт.
1-1/4" N.F. hex. jam nut, front axle reinforcement, special, for high clearance tractors
2шт.
A8385
ROD - truss, rear, front axle reinforcement, special, for high clearance tractors
2шт.
7/8" x 2-1/2" N.F. hex. bolt w/hex. nut and lockwasher, front axle reinforcement, special, for high clearance tractors
2шт.
A8386
TURNBUCKLE - truss rod., front axle reinforcement, special, for high clearance tractors
2шт.
Выбрано товаров: 65
