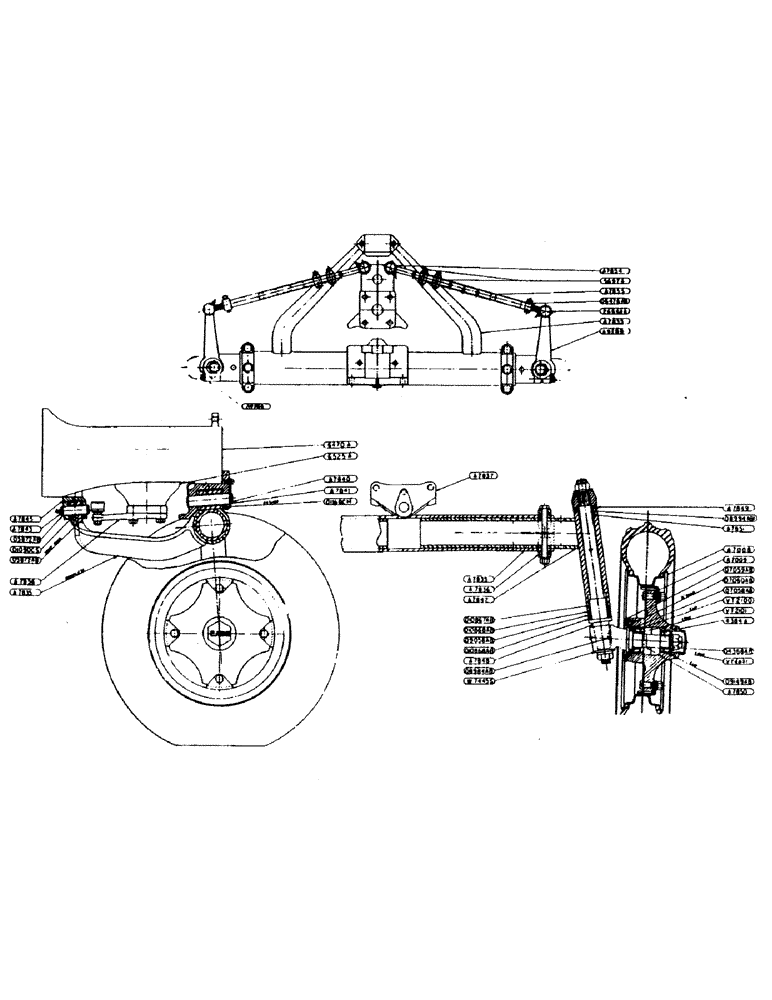

Запчасти Case IH 400-SERIES (166) - ADJUSTABLE FRONT AXLE ASSEMBLY, 53" TO 82" TREAD, FOR GENERAL PURPOSE TRAC. PRIOR TO S/N 8069698 (06) - POWER TRAIN

A7834

ROD - radius (use A7835)

1шт.

A7835

AXLE - center section, with radius rod (includes A7841 and 01090CS bushings)

1шт.

A7836

CLAMP - front axle tube

4шт.

5/8" x 4-1/2" N.F. hex. bolt with hex. nut and lockwasher

4шт.

5/8" x 7" N.F. hex. bolt with hex. nut and lockwasher

2шт.

A7837

PEDESTAL - front axle

1шт.

5/8" x 1-3/4" N.C. hex. bolt with lockwasher

4шт.

A7840

PIVOT PIN

PIN - pivot, front

1шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher

1шт.

1/8" - 90deg. Lincoln fitting no. 5400

1шт.

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

- front axle pivot pin

2шт.

A7843

PIN

- radius rod pivot

1шт.

1/8" - 90deg. Lincoln fitting no. 5400

1шт.

A7845

SUPPORT - radius rod, rear

1шт.

5/8" x 1-3/4" N.C. hex. bolt with lockwasher

2шт.

A7847

AXLE - outer section

2шт.

1/8" str. Lincoln fitting no. 5000

2шт.

A7848

SPINDLE - wheel, vertical

2шт.

1-1/8" N.F. hex. castle nut

2шт.

1-1/8" N.F. hex. nut

2шт.

1-1/8" std. lockwasher

2шт.

3/16" x 1-3/4" cotter pin

2шт.

A7849

GUARD

SHIELD - dust, for vertical spindle

2шт.

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING - needle, vertical spindle upper (Torrington no. B2416-OH)

2шт.

A7854

TIE-ROD

ROD - front axle notched tie (prior to tractor no. 8069698)

2шт.

1/8" str. Lincoln fitting no. 5000

2шт.

1/8" x 1" cotter pin

2шт.

A7855

TUBE - notched tie rod (prior to tractor no. 8069698) (see A9599)

2шт.
