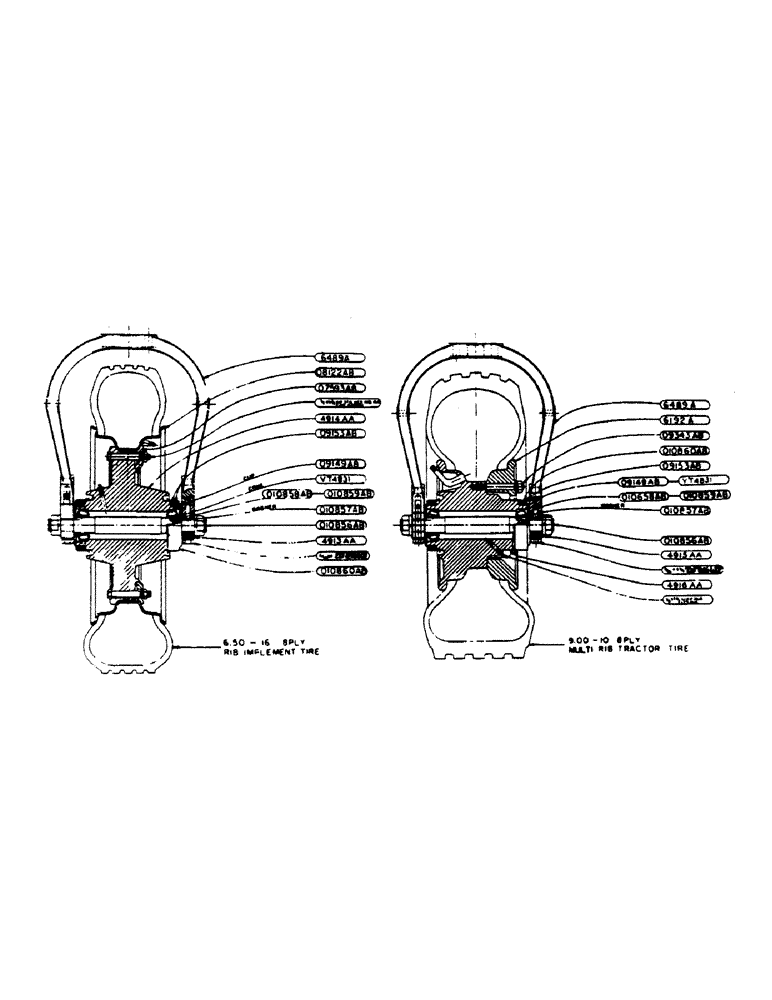

Запчасти Case IH 400-SERIES (163) - SINGLE FRONT WHEEL, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A9764

BLOCK AND PIN - fork extension, for 7.50 - 16 tire

2шт.

A9765

BOLT - fork extension block, for 7.50 - 16 tire

4шт.

9/16" std. lockwasher

4шт.

6192A

FLANGE - single front wheel, for 9.00 - 10 tire

1шт.

6488A

WHEEL - (use 4914AA)

1шт.

6489A

FORK - single front wheel

1шт.

5/8" x 2" N.F. hex. bolt w/hex. nut

4шт.

5/8" shakeproof external lockwasher #1128-00

4шт.

6502A

WHEEL - (use 4916AA)

1шт.

O7593AB

X

CLAMP - front wheel rim, for 6.50 - 16 and 7.50 - 16 tires.

6шт.

1/2" x 3-1/2" N.F. hex. bolt w/hex. nut

6шт.

O8122AB

RIM - 5.50F - 16 full drop center, for 6.50 - 16 and 7.50 - 16 tires.

1шт.

O9149AB

X

CUP - front wheel bearing (Timken no. 25820)

2шт.

O9150AB

X

CONE - front wheel bearing (Timken no. 25878) (use VT4831)

1шт.

O9153AB

X

WASHER - felt, front wheel hub

4шт.

O9343AB

STUD - front wheel flange, for 9.00 - 10 tire

6шт.

1/2" N.F. heavy hex. nut

6шт.

1/2" std. lockwasher

6шт.

O10856AB

SHAFT - single front wheel

1шт.

1/8" N.F. hex. jam nut

2шт.

1/8" std. lockwasher

2шт.

O10857AB

WASHER - axle shaft

4шт.

O10858AB

X

SHIM - axle shaft (.003")

1шт.

O10859AB

SHIM - axle shaft (.005")

1шт.

O10860AB

X

RETAINER - felt

2шт.

VT4831

X

CONE - front wheel bearing (Timken no. 25877)

2шт.

4913AA

BLOCK AND PIN - fork extension, for 6.50 - 16 tire

2шт.

9/16" x 4" N.F. hex. bolt w/lockwasher

4шт.

4914AA

WHEEL - front, with 2-09149AB bearing cups, for 6.50 - 16 8-ply tires and

1шт.

4915AA

BLOCK AND PIN - fork extension, for 9.00 - 10 tire

2шт.

9/16" x 3-1/4" N.F. hex. bolt w/lockwasher

4шт.

4916AA

WHEEL - front, with 2-09149AB cups, 6-09343AB studs and 1-1/8" str. Lincoln fitting #5000, for 9.00 - 10 8-ply tires

1шт.
