Запчасти Case IH 400-SERIES (143) - EXTENSION RIMS FOR STEEL REAR WHEEL, FOR STANDARD FOUR WHEEL TRACTORS (06) - POWER TRAIN

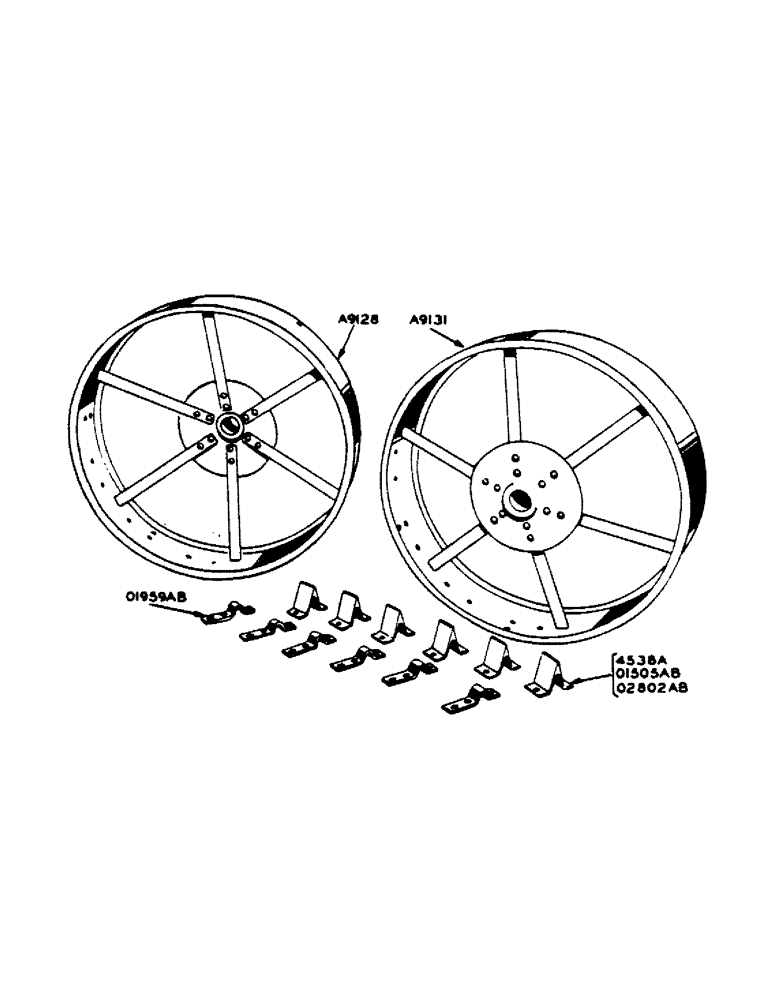

Схема запчастей Case IH 400-SERIES - (143) - EXTENSION RIMS FOR STEEL REAR WHEEL, FOR STANDARD FOUR WHEEL TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A9128

RIM - extension, 8" x 50" dia. (used with A9125 rear wheels) (see A9130M)

2шт.

A9130M

RIMS - set of 8" x 50" extension, for A9125 rear wheels (consists fo 2 - A9128 rims and 12 - 01959AB tie straps with bolts, nuts and lockwasher) (Machy. item)

1шт.

A9131

RIM - extension, 12" x 50" dia. (used with A9125 rear wheels) (see A9132M

2шт.

A9132M

RIMS - set of 12" x 50" extension, for A9125 rear wheels (consists of 2 - A9131 rims and 12 - 01959AB tie straps with bolts, nuts and lockwasher) (Machy. item)

1шт.

O1959AB

STRAP - tie, extension rim

12шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher

24шт.

3/4" x 2" No. 1 key hd. old std. plow bolt w/hex. nut and lockwasher

12шт.

Выбрано товаров: 7
