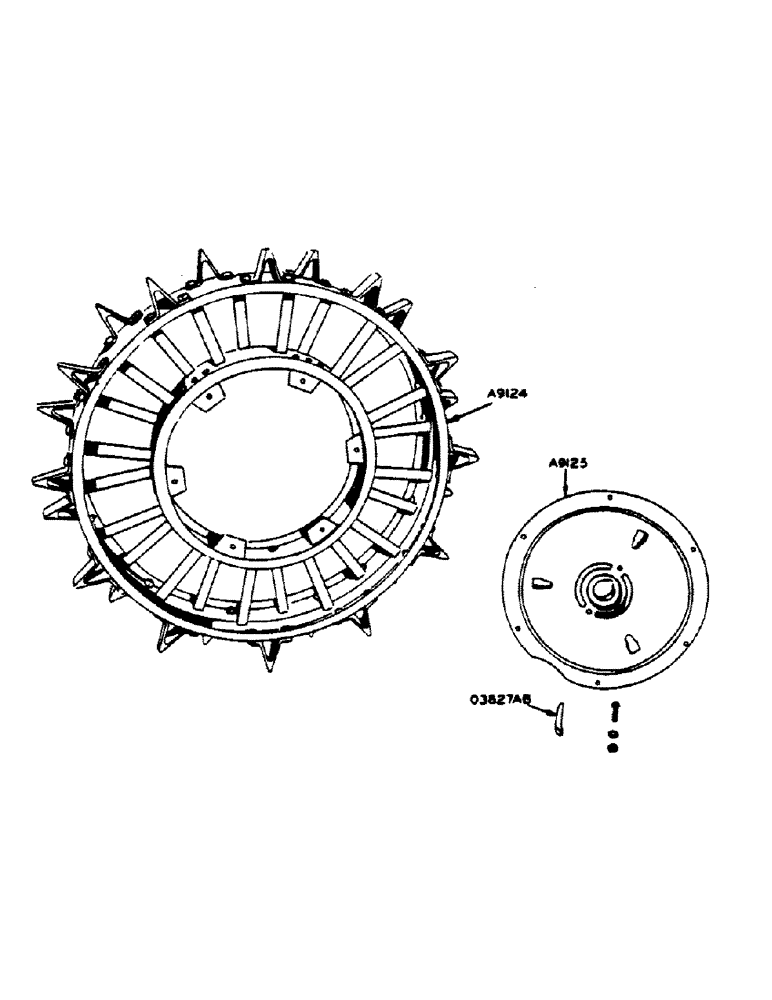

Запчасти Case IH 400-SERIES (142) - STEEL REAR WHEEL AND LUGS, FOR STANDARD FOUR WHEEL TRACTORS (06) - POWER TRAIN

A9124

WHEEL - rear, 11-1/8" x 50" dia. (used with 6486A or A9125 cast center wheel)

2шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

12шт.

A9125

WHEEL - cast center, for A9124 rear wheel

2шт.

A9240M

LUGS - set of (48) cast iron spade, for A9124 rear wheel (consists of 48 - 4538A lugs and 96 - 3/4" x 2" mach. bolts w/hex. nuts and lockwasher) (Machy. item), steel, for standard 4-wheel tractors

1шт.

A9241M

LUGS - set of (24) cast iron spade, for A9128 or A9131 extension rims (consists of 24-4538A lugs, 36 - 3/4" x 2" mach. bolts and 12 - 3/4" x 2-1/2" mach. bolts w/hex. nuts and lockwasher) (Machy. item), for steel rear wheels, for standard 4-wheel tractors

1шт.

A9243M

LUGS - set of (48) steel spade, for rear wheels (consists of 48 - 01505AB and 96 - 3/4" x 1-1/2" N.C. mach. bolts w/hex. nuts and lockwashers) (machy. item), for standard 4-wheel tractors

1шт.

A9244M

LUGS - set of (24) steel spade, for extension rims (consists of 24 - 01505AB lugs, 36 - 3/4" x 1-1/2" mach. bolts and 12 - 3/4" x 2" mach. bolts w/hex. nuts and lockwashers) (Machy. item), for rear wheels, for standard 4-wheel tractors

1шт.

A9254M

LUGS - set of (48) steel spade, for rear wheels (consists of 48 - 02802AB lugs and 96 - 3/4" x 1-1/2" mach. bolts with hex. nuts and lockwashers) (Machy. item), for standard 4-wheel tractors

1шт.

A9255M

LUGS - set of (24) steel spade, for extension rims (consists of 24 - 02802AB lugs, 36-3/4" x 1-1/2" mach. bolt and 12 - 3/4" x 2" mach. bolts w/hex. nuts and lockwashers) (Machy. item), for rear wheels, for standard 4-wheel tractors

1шт.

4538A

LUG - 6" cast iron spade, for A9124 rear wheel (see A9240M), steel, for standard 4-wheel tractors

48шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

96шт.

4538A

LUG - 6" cast iron spade, for A9128 or A9131 extension rims (see A9241M), for steel rear wheels, for standard 4-wheel tractors

24шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

36шт.

3/4" x 2-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

12шт.

O1505AB

LUG - steel spade, for rear wheel (5" high x 3-1/2" wide) (see A9243M), for standard 4-wheel tractors

48шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

96шт.

O1505AB

LUG - steel spade, for extension rims (5" high x 3-1/2" wide) (see A9244M), for rear wheels, for standard 4-wheel tractors

24шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

36шт.

3/4" x 2" N.C. mach. bolt w/hex. nuta nd lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

12шт.

O2802AB

LUG - 6" steel spade, for rear wheels (see A9254M), for standard 4-wheel tractors

48шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

96шт.

O2802AB

LUG - 6" steel spade, for extension rims (see A9255M), for rear wheels, for standard 4-wheel tractors

24шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

36шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for standard 4-wheel tractors

12шт.
