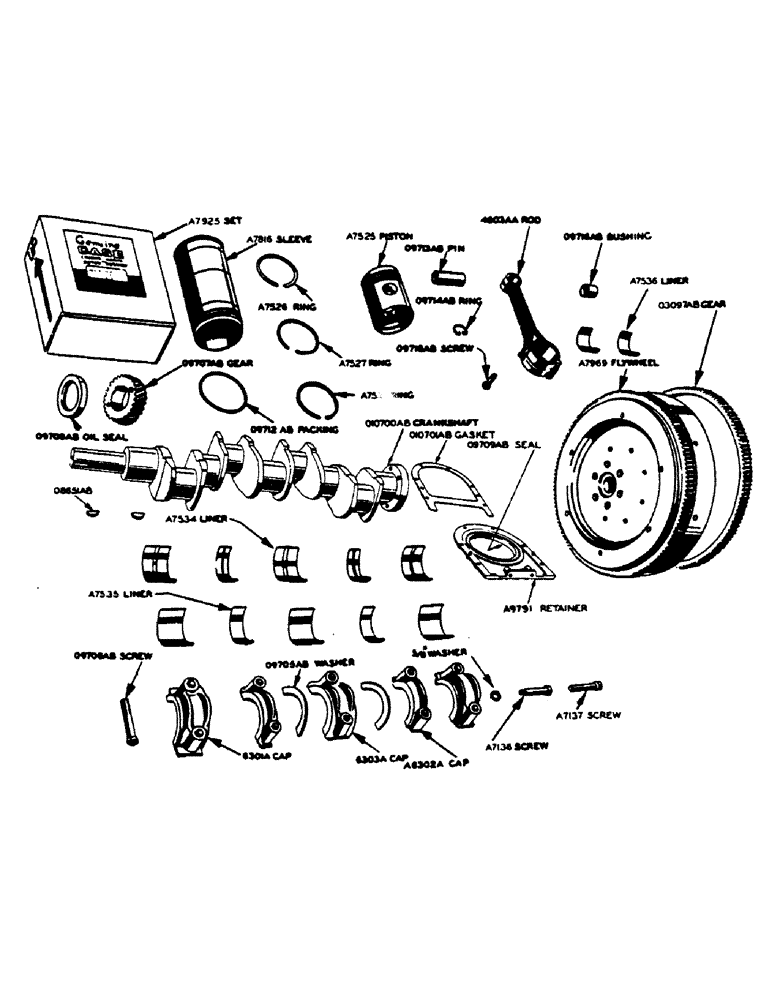

Запчасти Case IH 400-SERIES (010) - POWRDYNE GAS ENGINE, PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

A7207

SLEEVE CYLINDER

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

4шт.

A7209

X

LINERS - connecting rod bearing, top and bottom half (.010" undersize)

4шт.

A7211

X

LINERS - connecting rod bearing, top and bottom half (.030" undersize)

4шт.

A7213

SLEEVE CYLINDER

LINERS - connecting rod bearing, top and bottom half (.,030" undersize)

4шт.

A7525

PISTON

4шт.

A7526

OIL SEAL

RING - piston, top (See note)

4шт.

A7527

OIL SEAL

RING - piston, second and third (See note)

8шт.

A7528

RING - piston, oil (See note)

4шт.

A7536

X

LINERS - connecting rod bearing, top and bottom half (Standard size)

4шт.

A7816

X

SLEEVE - cylinder

4шт.

Note - A7816 is 4 7/8" O.D. 05/07/96

1шт.

A7925

SET OF (2) - cylinder sleeves, pistons, rings and piston pins

2шт.

A8095

KIT

RINGS - piston set of (16) Perfect Circle 2-in-1 chrome

1шт.

O9712AB

X

"O" RING - cylinder sleeve

8шт.

O9713AB

PIN - piston

4шт.

O9714AB

X

RING - piston pin retainer

8шт.

O9716AB

BUSHING - connecting rod

4шт.

O9718AB

X

CAP SCREW - connecting rod

8шт.

4603AA

X

ROD - connecting, with cap, bushing and cap screws

4шт.

A7134

FLYWHEEL - (Use A7969), crankshaft

1шт.

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

SCREW - dowel, flywheel, crankshaft

2шт.

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

CAP SCREW - flywheel, crankshaft

4шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) (See 09705AB)

2шт.

A7216

SLEEVE CYLINDER

LINERS - crankshaft bearing (wide - upper and lower) (.002" undersize)

3шт.

A7219

X

LINERS - crankshaft bearing (narrow - upper and lower) (.002" undersize)

2шт.

A7222

X

LINERS - crankshaft bearing (wide - upper and lower) (.010" undersize)

3шт.

A7225

LINERS - crankshaft bearing (narrow-upper and lower) (.010" undersize)

2шт.

A7228

LINERS - crankshaft bearing (wide - upper and lower) (.020" undersize)

3шт.

A7231

LINERS - crankshaft bearing (narrow - upper and lower) (.020" undersize)

2шт.

A7234

LINERS - crankshaft bearing (wide - upper and lower) (.030" undersize)

3шт.

A7237

LINERS - crankshaft bearing (narrow - upper and lower) (.030" undersize)

2шт.

A7534

X

LINERS - crankshaft bearing (wide - upper and lower) (standard size)

3шт.

A7535

LINERS - crankshaft bearing (narrow - upper and lower) (standard size)

2шт.

A7969

FLYWHEEL - with ring gear, crankshaft

1шт.

A9791

RETAINER

- crankshaft rear oil seal, with dowel pins

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, crankshaft

6шт.

6301A

CAP - crankshaft bearing wide

2шт.

6302A

CAP - crankshaft bearing, narrow (Use A6302A)

1шт.

A6302A

X

CAP - crankshaft bearing, narrow

2шт.

6303A

CAP - crankshaft thrust bearing

1шт.

6452A

RETAINER - crankshaft rear oil seal (Use A9791)

1шт.

O3097AB

X

RING GEAR - flywheel (139 teeth), crankshaft

1шт.

O8651AB

X

KEY - woodruff, for crankshaft

2шт.

O9705AB

X

WASHER - crankshaft thrust (Standard size) (See A7204)

2шт.

O9706AB

SCREW - crankshaft bearing cap

10шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft, front

1шт.

O9709AB

OIL SEAL - crankshaft, rear

1шт.

O9710AB

PIN - dowel, for 6452A retainer, crankshaft

2шт.

O10035AB

X

"O" RING - flywheel, crankshaft

1шт.

O10700AB

CRANKSHAFT

1шт.

O10701AB

X

GASKET - crankshaft rear oil seal retainer

1шт.
