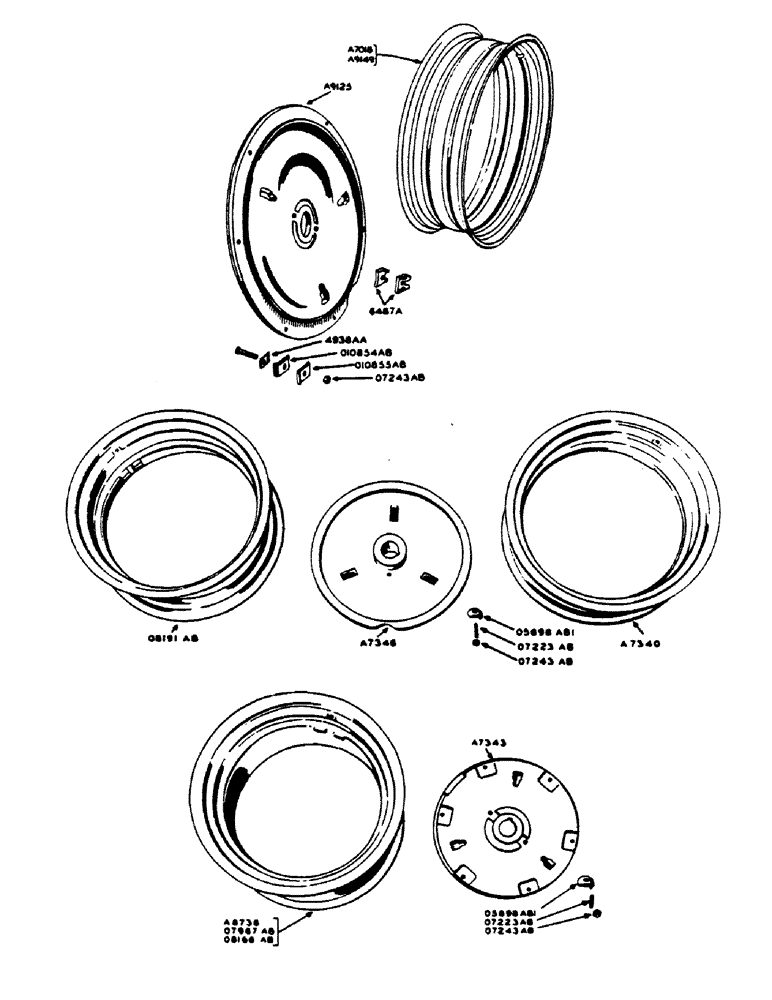

Запчасти Case IH 400-SERIES (140) - PNEUMATIC REAR WHEELS, FOR STANDARD FOUR WHEEL AND ORCHARD TRACTORS (06) - POWER TRAIN

A7018

SPARE PART

RIM - W12-30 double bead drop center, for A9125 and 6486A rear wheel (for 13-30 tires)

2шт.

A7340

RIM - DW16-30 wide base deep well, with drivers (used with A7346 wheel for 15-30 6-ply tires) (for std. 4-wheel models)

2шт.

A7343

WHEEL - rear, for 13-26 or 14-26 6-ply tires for orchard models and 18-26 8-ply tires for std. 4-wheel models

2шт.

A7346

WHEEL - rear, for 15-30 6-ply tires (std. 4-wheel models)

2шт.

A8736

RIM - DW20-26 drop center, with drivers (used with A7343 wheel for 18-26 8-ply tires) (std. 4-wheel)

2шт.

A9125

WHEEL - rear, for 13-30, 14-30 and 15-30 6-ply tires for double beaded rims (for std. 4-wheel models)

2шт.

A9149

RIM - W14-30 double bead drop center (used with A9125 wheel for 14-30 or 15-30 6-ply tires) (std. 4-wheel)

2шт.

6486A

WHEEL - rear, for 13-30 or 14-30 tires for double beaded rims (std. 4-wheel) (now use A9125)

1шт.

6487A

X

CLAMP - rim drive, for A7018 and A9149 rims

8шт.

5/8" x 3" N.C. hex. bolt

4шт.

O5698AB1

X

CLAMP - rear wheel rim

12шт.

O7223AB

X

STUD - rear wheel rim

12шт.

O7243AB

X

NUT - rear wheel rim stud

12шт.

O7967AB

RIM - DW12-26 Goodyear wide base deep well, with drivers (used with A7343 wheel for 13-26 or 14-26 6-ply tires) (for orchard models)

2шт.

O8166AB

RIM - Goodyear DW16-26 drop center, with drivers (used with A7343 wheel for 14-26 6-ply tires) (for orchard models)

2шт.

O8191AB

RIM - DW14-30 wide base deep well, with drivers (used with A7346 wheel for 14-30 6-ply tires) (std. 4 wheel)

2шт.

O10854AB

X

CLAMP - rim mounting, male (std. 4-wheel

8шт.

5/8" x 3" N.C. hex. bolt

8шт.

O10855AB

X

CLAMP - rim mounting, female (std. 4-wheel)

8шт.

4936AA

LUG - locking, rim clamp bolt

8шт.
