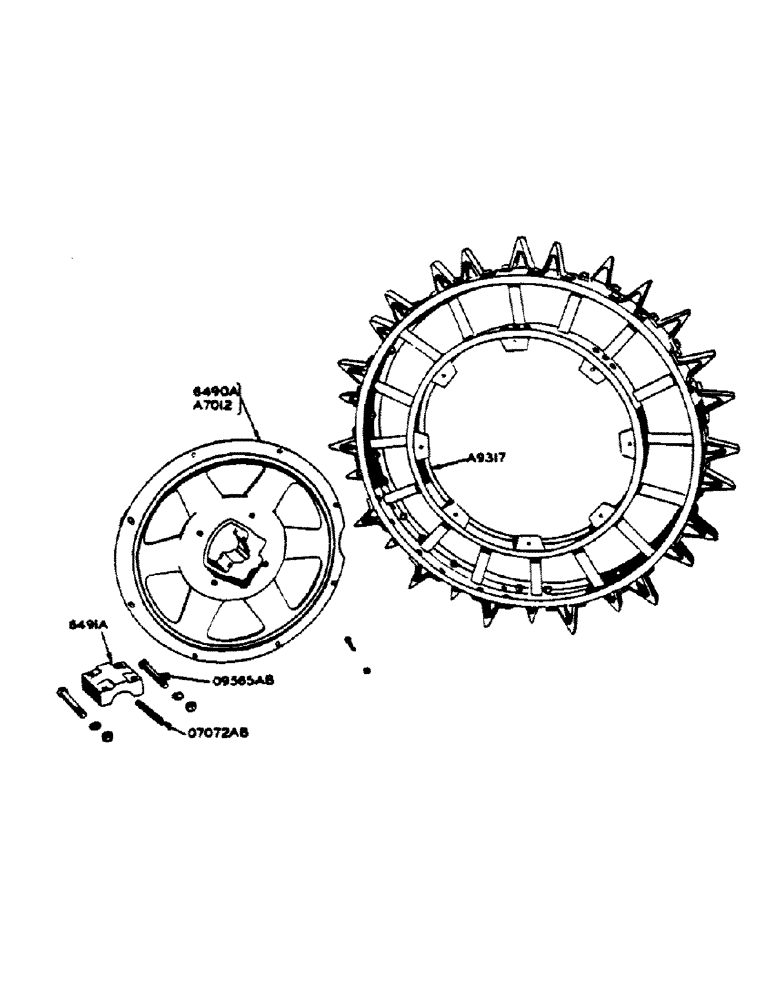

Запчасти Case IH 400-SERIES (134) - STEEL REAR WHEEL AND LUGS, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A7012

WHEEL - cast center with 6491A cap and 4-09565AB bolts, nuts and lockwashers

2шт.

A9317

WHEEL - rear, 8-1/4" x 54" dia. (used with 6490A cast center wheel)

2шт.

5/8" x 2-1/4" N.F. hex. bolt with hex. nut and lockwasher

16шт.

6490A

WHEEL - rear (use A7012)

1шт.

6491A

CAP - rear wheel hub (A7012)

2шт.

O9565AB

BOLT - rear wheel hub

8шт.

7/8" N.F. hex. nut

8шт.

7/8" std. lockwasher

8шт.

4538A

LUG - 6" cast iron spade, for A9317 rear wheel (see 45AA), steel, for general purpose tractors

56шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

112шт.

4538A

LUG - 6" cast iron spade, for A9318 extension rim (see 43AA), for steel rear wheels, for general purpose tractors

28шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

42шт.

3/4" x 2-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

14шт.

O1505AB

LUG - steel spade, for A9317 rear wheel (5" high x 3-1/2" wide) (see 46AA), for general purpose tractors

56шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

112шт.

O1505AB

LUG - steel spade, for A9318 extension rim (5" high x 3-1/2" wide) (see 44AA), for rear wheels, for general purpose tractors

28шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

42шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

14шт.

O2802AB

LUG - 6" steel spade, for A9317 rear rear wheels (see 489AA), general purpose tractors

56шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

112шт.

O2802AB

LUG - 6" steel spade, for A9318 extension rim (see 557AA), rear wheels, for general purpose tractors

28шт.

3/4" x 1-1/2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

42шт.

3/4" x 2" N.C. mach. bolt w/hex. nut and lockwasher, lugs for steel rear wheels, for general purpose tractors

14шт.

43AA

LUGS - set of (28) cast iron spade, for A9318 extension rims (consists of 28-4538A lugs, 42-3/4" x 2" mach. bolts and 14-3/4" x 2-1/2" mach. bolts with hex. nuts and lockwashers) (Machy item), for steel rear wheels, for general purpose tractors

1шт.

44AA

LUGS - set of (28) steel spade, for A9318 extension rims (consists of 28-01505AB lugs, 42-3/4" x 1-1/2" mach. bolts and 14-3/4" x 2" mach. bolts with hex. nuts and lockwashers) (Machy. item), for rear wheels, for general purpose tractors

1шт.

45AA

LUGS - set of (56) cast iron spade, for A9317 rear wheel (consists of 56-4538A lugs and 112-3/4" x 2" N.C. mach. bolts with hex. nuts and lockwashers) (Machy. item), steel, for general purpose tractors

1шт.

46AA

LUGS - set of (56) steel spade, for A9317 rear wheels (consists of 56-01505AB lugs and 112-3/4" x 1-1/2" N.C. mach. bolts with hex. nuts and lockwashers) (Machy. item), for general purpose tractors

1шт.

489AA

LUGS - set of (56) steel spade, for A9317 rear wheels (consists of 56-02802AB lugs and 112-3/4" x 1-1/2" N.C. mach. bolts with hex. nuts and lockwashers) (Machy. item), for general purpose tractors

1шт.

557AA

LUGS - set of (28) steel spade, for A9318 extension rims (consists of 28-02802AB lugs, 42-3/4" x 1-1/2" N.C. mach. bolt, 14-3/4" x 2" N.C. mach. bolt with hex. nut and lockwasher) (Machy. item), for rear wheels, for general purpose tractors

1шт.
