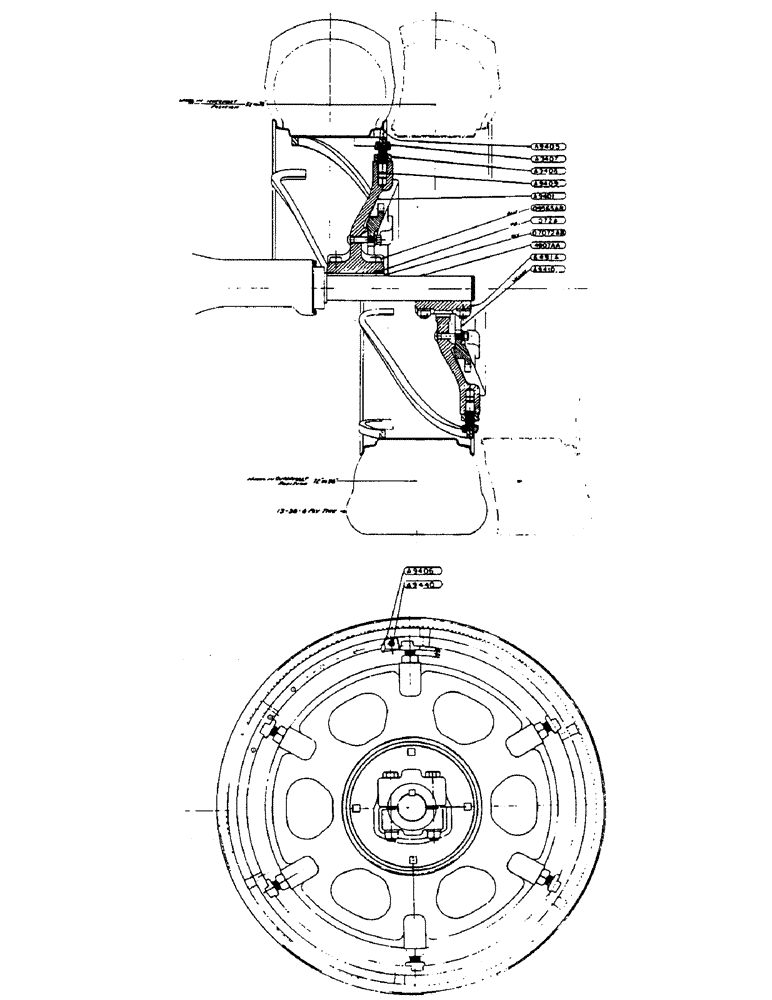

Запчасти Case IH 400-SERIES (132) - POWER ADJUSTABLE TREAD REAR WHEELS AND WEIGHTS, SPECIAL FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A9401

WHEEL - rear, with 6491A cap and 4-09565AB bolts w/lockwashers (for standard rear axle) (see A10050)

2шт.

A9404

WHEEL - rear (use A9401)

1шт.

A9405

RIM - rear wheel, for 12-38 and 13-38 6 ply tractors tires

2шт.

A9406

STOP

LUG - stop, rear wheel rim

4шт.

A9407

X

SCREW - jack, rear wheel

12шт.

A9408

NUT

- rear wheel jack screw

12шт.

A9409

X

"O" RING - jack screw retianing

12шт.

A9440

STOP

SCREW - rear wheel rim stop

4шт.

A9491

WRENCH - rear wheel jack screw

1шт.

A10046

WHEEL - rear (use A10050)

1шт.

A10050

WHEEL - rear, with 6491A cap and 4-09565AB bolts w/nuts and lockwashers (for 108" axle) (see A9401)

2шт.

6491A

CAP - rear wheel hub

2шт.

O9565AB

BOLT - rear wheel hub

8шт.

7/8" N.F. hex. nut

8шт.

7/8" std. lockwasher

8шт.

A9410

WEIGHT - rear wheel, for power adjustable tread

2шт.

5/8" x 3-1/2" N.C. carr. bolts, hex. nuts, lockwasher and plain washer, weight for power adjustable tread rear wheel

8шт.

A9411M

WEIGHTS - set of 2, for A9404 or A10046 rear wheels (consists of 2-A9410 weights with 8-5/8" x 3-1/2" N.C. carr. bolts, hex. nuts, lockwashers and plain washer) (machy. item), for power adjustable tread

1шт.
