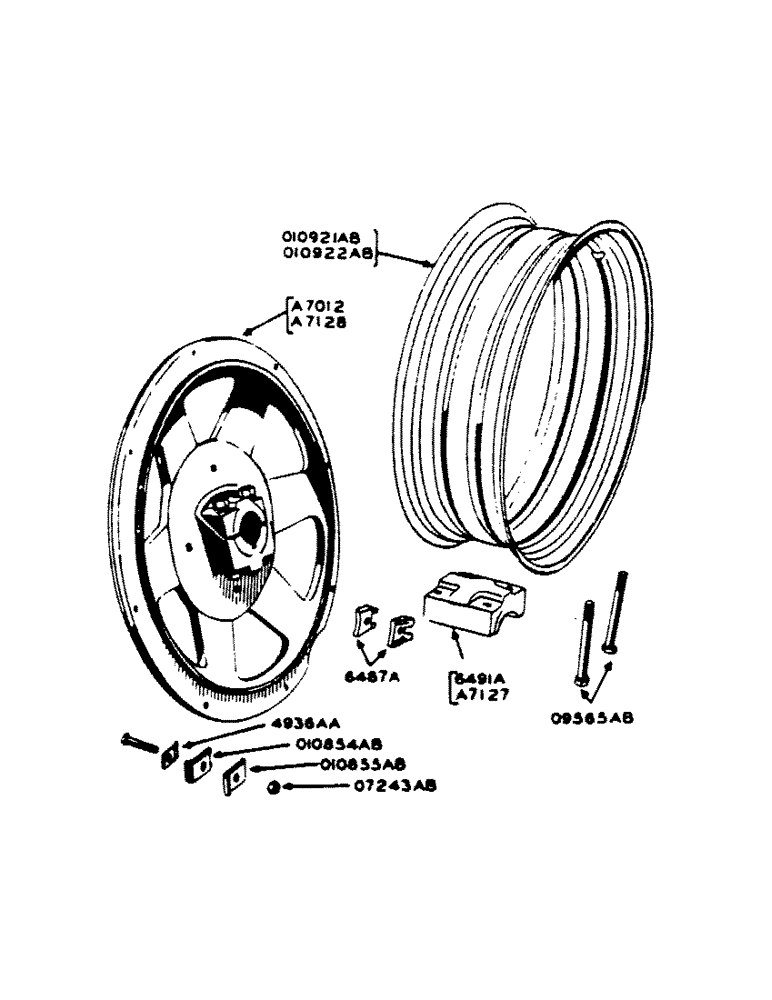

Запчасти Case IH 400-SERIES (131) - PNEUMATIC REAR WHEEL, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

A7012

WHEEL - rear, with 6491A cap and 4 - 09565AB bolts, nuts and lockwasher (For General Purpose tractors with 12-38 or 13-38 6 ply tires)

2шт.

A7126

WHEEL - rear, 108" axle (Use A7128)

1шт.

A7127

CAP

- rear wheel hub (108" axle)

2шт.

A7128

WHEEL - rear, with A7127 cap and 4 - 09565AB bolts with hex. nuts and lockwasher (for 108" axle)

2шт.

A7812

WHEEL - (use A7926)

1шт.

A7926

WHEEL - rear, with 6491A cap and 4 - 09565AB bolts, nuts and lockwashers (for high clearance tractors with 12-38 or 13-38 6 ply tires)

2шт.

A8696

WRENCH - socket, rear wheel hub and rim clamp

1шт.

6487A

X

CLAMP - rim drive

8шт.

5/8" x 3" N.C. hex. bolt

4шт.

6490A

WHEEL - rear (use A7012)

1шт.

6491A

CAP - rear wheel hub (A7012)

2шт.

O7243AB

X

NUT - rear wheel rim

16шт.

O9565AB

BOLT - rear wheel hub

8шт.

7/8" N.F. hex. nut

8шт.

7/8" std. lockwasher

8шт.

O10854AB

X

CLAMP - rim mounting, male

12шт.

5/8" x 3" N.C. hex. bolt

12шт.

O10855AB

X

CLAMP - rim mounting, female

12шт.

O10921AB

RIM

- W11-38 double bevel drop center, for 12-38 tires

2шт.

O10922AB

RIM - W12-38 double bevel drop center, for 13-38 tires or 12-38 tires

2шт.

4936AA

LUG - locking, rim clamp bolt

12шт.

A7017

BRACKET

WEIGHTS - set of (2), for 6490A rear wheel (consists of 2-6492A weights and 8-5/8" x 3-1/2" N.C. carr. bolts with hex. nuts, lockwashers and plain washers) (machinery item), for general purpose tractors

1шт.

6492A

WEIGHT - for 6490A rear wheel (see A7017), for general purpose tractors

2шт.

5/8" x 3-1/2" N.C. carr. bolt with hex. nut, lockwasher and plain washer, rear wheel weights, for general purpose tractors

8шт.
