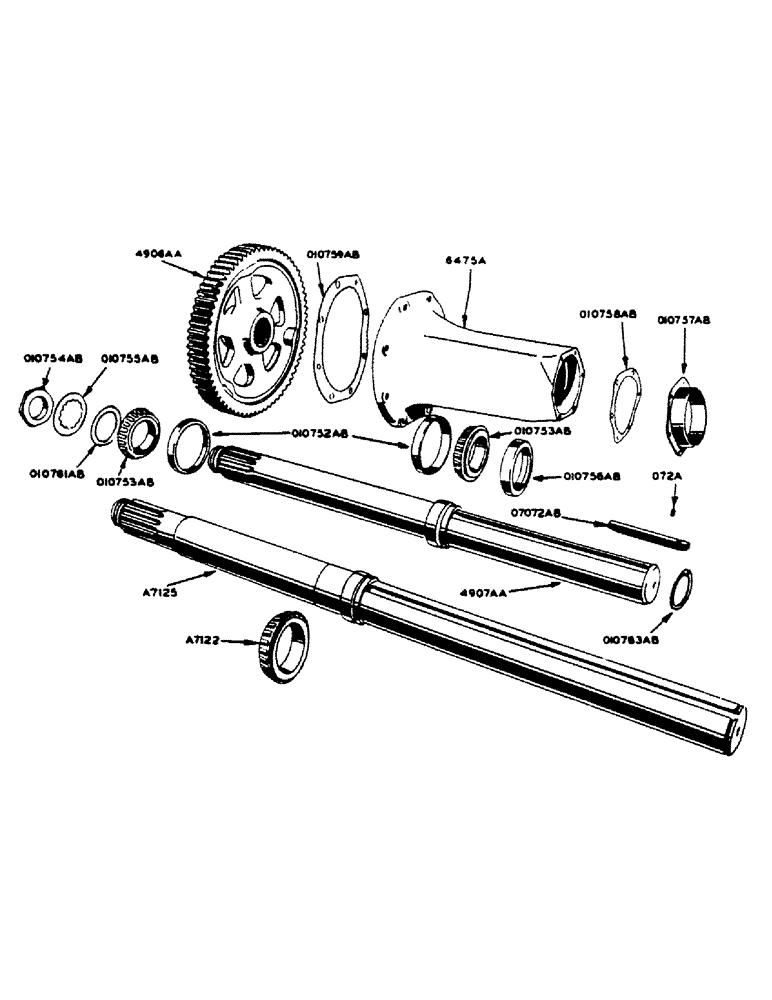

Запчасти Case IH 400-SERIES (130) - REAR AXLE, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A7122

ROLLER BEARING,3.3125" ID x 1.172"

CONE - rear axle outer bearing (for 52" to 108" tread) (Timken no. 498) (see 010753AB)

2шт.

A7125

SPARE PART

SHAFT - rear axle, with collar and spacer (for 52" to 108" tread) (see 4907AA)

2шт.

6475A

X

HOUSING - rear axle

2шт.

5/8" x 2" N.C. hex. bolt with lockwasher

12шт.

5/8" x 2-1/4" N.C. hex. bolt with lockwasher

4шт.

6476A

HUB - (use 4906AA)

1шт.

O72A

DOWEL PIN - rear wheel to axle key

2шт.

O7072AB

KEY - rear, Serial Range: wheel-axle

2шт.

O10752AB

X

CUP - rear axle shaft bearing (Timken no. 492-A)

4шт.

O10753AB

X

CONE - rear axle shaft bearing (Timken no. 495-AS)

4шт.

O10753AB

X

CONE - rear axle inner bearing (for 52" to 108" tread) (Timken no. 495-AS) (see A7122)

2шт.

O10754AB

LOCK NUT - rear axle, for ring gear hub

2шт.

O10755AB

X

LOCKWASHER - rear axle, for ring gear hub

2шт.

O10756AB

X

OIL SEAL - rear axle

2шт.

O10757AB

X

GUARD - dust, rear axle

2шт.

5/16" x 3/4" N.C. hex. bolt with lockwasher

12шт.

O10758AB

X

GASKET - rear axle dust guard

2шт.

O10759AB

X

GASKET - rear axle housing

2шт.

O10761AB

WASHER - thrust, rear axle gear

2шт.

O10763AB

X

SNAP RING - rear axle shaft

2шт.

4906AA

GEAR - rear axle, with hub

2шт.

4907AA

SHAFT - rear axle, with collar and spacer (48" to 88" trd.) (see A7125)

2шт.
