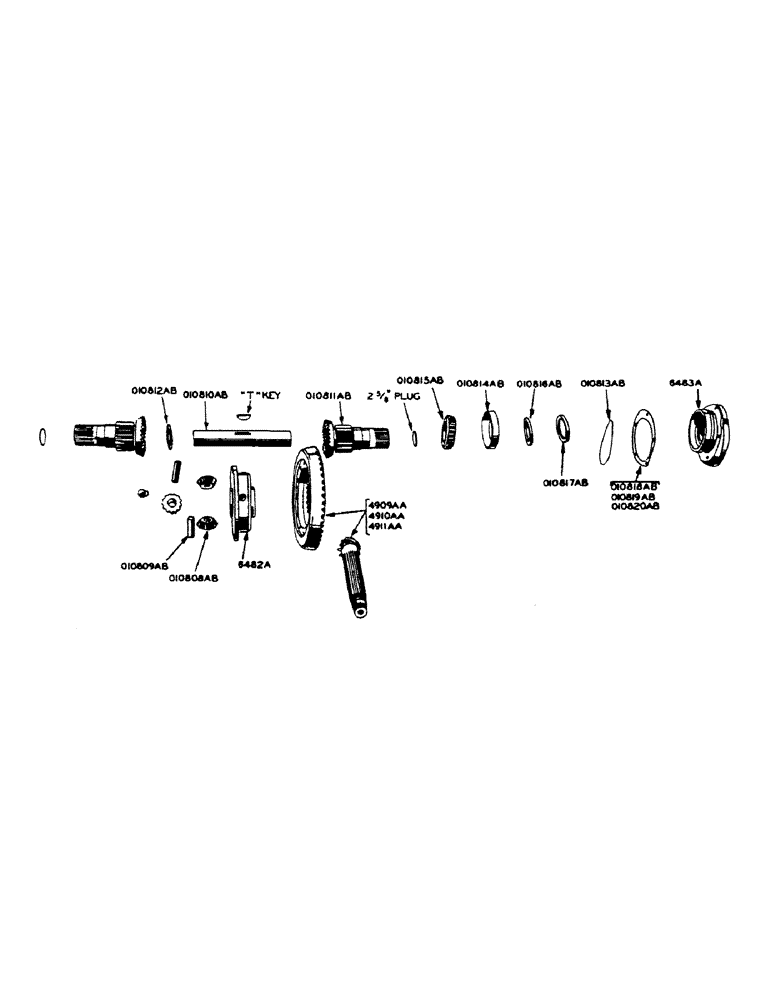

Запчасти Case IH 400-SERIES (123) - DIFFERENTIAL SHAFT (06) - POWER TRAIN

A8341

THIMBLE - to assemble 010816AB and 010817AB oil seal on differential gear and sleeve

1шт.

A8410

CARRIER - differential bearing and brake pad (for orchard models) (see 6483A)

2шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

1/8" hex. socket hd. pipe plug

2шт.

A9288

OIL SEAL - differential implement drive shaft (for high clearance tractors)

2шт.

A9292

GEAR AND SLEEVE - differential, with differential implement drive shaft (for high clearance models) (see 010811AB)

2шт.

2-5/8" Welch plug

2шт.

6482A

X

WHEEL - differential center

1шт.

"T" Woodruff key

1шт.

6483A

CARRIER - differential bearing and brake pad (for all but orchard models) (see A8410)

2шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

1/8" hex. socket hd. pipe plug

2шт.

O10808AB

PINION - differential

3шт.

O10809AB

PIN - differential pinion

3шт.

O10810AB

SHAFT - differential

1шт.

"T" Woodruff key

1шт.

O10811AB

X

GEAR AND SLEEVE - differential (for all but high clearance models) (see A9292)

2шт.

2-5/8" Welch plug

2шт.

O10812AB

X

WASHER - thrust, differential gear

1шт.

O10813AB

X

"O" RING - differential shaft bearing carrier

2шт.

O10814AB

X

CUP - differential bearing (Timken No. 592-A)

2шт.

O10815AB

X

CONE - differential bearing (Timken No. 596)

2шт.

O10816AB

OIL SEAL - differential bearing, inner (synthetic rubber)

2шт.

O10817AB

X

OIL SEAL - differential bearing, outer (leather)

2шт.

O10818AB

X

SHIM - differential shaft bearing carrier (.003" thick)

8шт.

O10819AB

X

SHIM - differential shaft bearing carrier (.005" thick)

6шт.

O10820AB

SHIM - differential shaft bearing carrier (.010" thick)

13шт.
