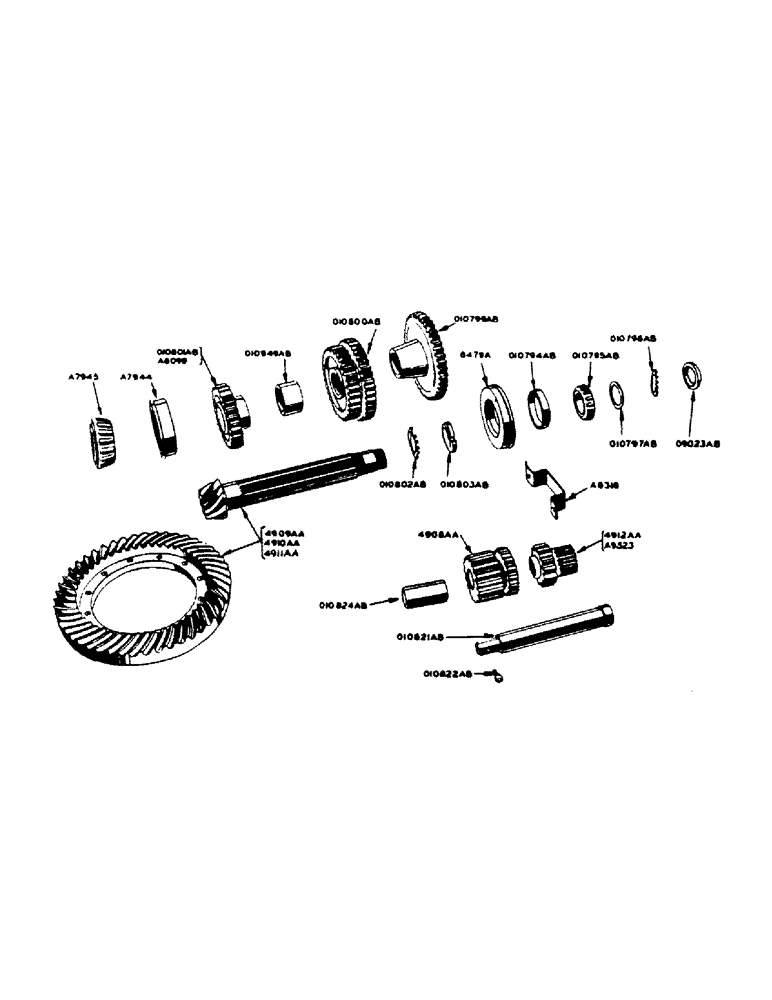

Запчасти Case IH 400-SERIES (121) - COUNTERSHAFT AND DIFFERENTIAL RING GEAR, AND REVERSE IDLER AND OIL GEAR SHAFT (06) - POWER TRAIN

A7944

CUP - bearing, countershaft, rear (Timken #65500B), and differential ring gear

1шт.

A7945

CONE

- bearing, countershaft, rear (Timken #65225), and differential ring gear

1шт.

A8099

GEAR - 4th and 8th speeds (for orchard models) (see 010801AB), countershaft and differential ring

1шт.

A8318

CLIP - countershaft front bearing carrier retainer, and differential ring gear

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher, countershaft and differential ring gear

2шт.

A8345

WRENCH - spanner socket, for 09023AB and 010803AB lock nuts on countershaft, and differential ring gear

1шт.

6479A

CARRIER - countershaft front bearing, and differential ring gear

1шт.

O9023AB

X

LOCKNUT - on countershaft, for front bearing, and differential ring gear

1шт.

O10794AB

X

CUP - countershaft front bearing (Timken #362-A), and differential ring gear

1шт.

O10795AB

X

CONE - countershaft front bearing (Timken #369-S), and differential ring gear

1шт.

O10797AB

X

LIP WASHER - countershaft front bearing, and differential ring gear

1шт.

O10798AB

X

LOCKWASHER - countershaft front bearing, and differential ring gear

1шт.

O10799AB

GEAR - 1st and 5th speeds, countershaft and differential ring

1шт.

O10800AB

GEAR - 2nd and 6th, 3rd and 7th speeds, countershaft and differential ring

1шт.

O10801AB

GEAR - 4th and 8th speeds (for all but orchard models) (see A8099), countershaft and differential ring

1шт.

O10802AB

X

LOCKWASHER - countershaft gear, and differential ring

1шт.

O10803AB

X

LOCKNUT - countershaft gear, and differential ring

1шт.

O10949AB

SPACER - countershaft gear, and differential ring

1шт.

4909AA

COUNTERSHAFT - with spiral bevel pinion and differential spiral bevel ring gear (9 and 48 teeth) (for general purpose tractors)

1шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. bolt w/hex. nut and lockwasher, countershaft and differential ring gear

12шт.

4910AA

COUNTERSHAFT - with spiral bevel pinion and differential spiral bevel ring gear (10 snf 48 teeth ) (for standard 4-wheel tractor)

1шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher, countershaft and differential ring gear

12шт.

4911AA

COUNTERSHAFT - with spiral bevel pinion and differential spiral bevel ring gear (11 and 48 teeth) (for orchard and high clearance tractors)

1шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. bolt w/hex. nut and lockwasher, countershaft and differential ring gear

12шт.

A9521

PLUG

BUSHING - oil slinger gear, and reverse idler, shaft

1шт.

A9523

GEAR

- oil slinger, with A9521 bushing, and reverse idler, shaft

1шт.

6484A

BUSHING - (use A9521), reverse idler and oil gear shaft

1шт.

O10821AB

SHAFT - reverse idler and oil gear

1шт.

O10822AB

LOCK SCREW - reverse idler and oil gear shaft

1шт.

O10824AB

BUSHING - reverse idler gear, and oil shaft

1шт.

4908AA

GEAR - reverse idler, with 010824AB bushing, and oil shaft

1шт.

4912AA

GEAR - oil slinger, with 6484A bushing (use A9523), and reverse idler, shaft

1шт.
