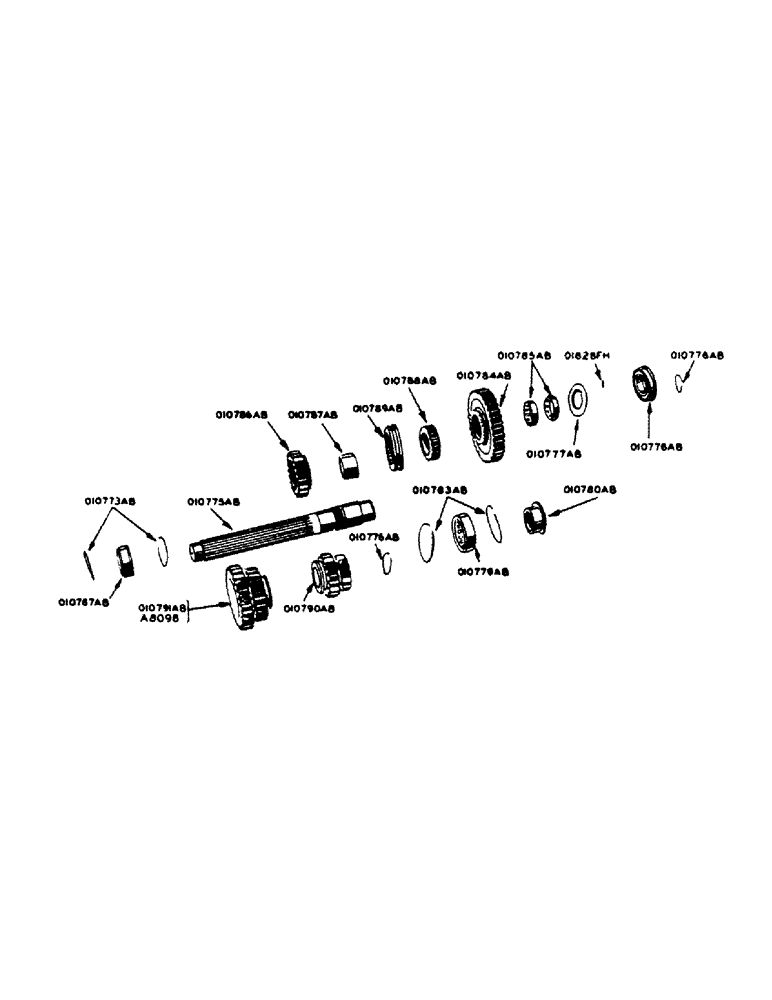

Запчасти Case IH 400-SERIES (120) - SLIDING GEAR SHAFT (06) - POWER TRAIN

A8098

GEAR - sliding, 3rd and 7th, 4th and 8th speeds (for orchard models) (see 010791AB)

1шт.

A8347

TOOL

ARBOR - for pressing in 010785AB low range gear bearing

1шт.

A8356

ARBOR - for pressing in 010787AB bearing into high range gear

1шт.

A9591

GEAR - low range (special for 3 M.P.H. reverse speed) (see 010784AB)

1шт.

In order to operate a general purpose tractor equipped with a cotton picker in a reverse speed of 3 miles per hour, the following gears are required: (1) A9590 range drive cluster gear. (1) A9591 low range gear.

1шт.

O10767AB

X

BEARING - sliding gear shaft, rear (Hyatt #1207-TAS)

1шт.

O10773AB

X

SNAP RING - sliding gear shaft rear bearing

2шт.

O10775AB

SHAFT - sliding gear

1шт.

O10776AB

SNAP RING - sliding gear shaft

2шт.

O10777AB

X

WASHER - shoulder, sliding gear shaft, front

1шт.

O10778AB

X

BEARING - sliding gear shaft, front (New Departure #47510)

1шт.

O10779AB

X

BEARING - sliding gear shaft, center (Hyatt #1210-TBS)

1шт.

O10780AB

X

RACE - inner, sliding gear shaft center bearing

1шт.

O10783AB

X

SNAP RING - sliding gear shaft center bearing

2шт.

O10784AB

GEAR - low range (see A9591)

1шт.

O10785AB

X

BEARING - needle, low range gear (Torrington #B3612)

2шт.

O10786AB

GEAR - high range

1шт.

O10787AB

X

BEARING - needle, high range gear (Torrington #BH-3324-OH)

1шт.

O10788AB

X

COLLAR - range clutch sliding sleeve spline

1шт.

O10789AB

SLEEVE - range clutch sliding

1шт.

O10790AB

GEAR - sliding, 1st and 5th, 2nd and 6th speeds

1шт.

O10791AB

GEAR - sliding, 3rd and 7th, 4th and 8th speeds (for all but orchard models) (see A8098)

1шт.

O1828FH

X

ROLL PIN - for 010777AB shoulder washer (5/32" x 7/16")

1шт.
