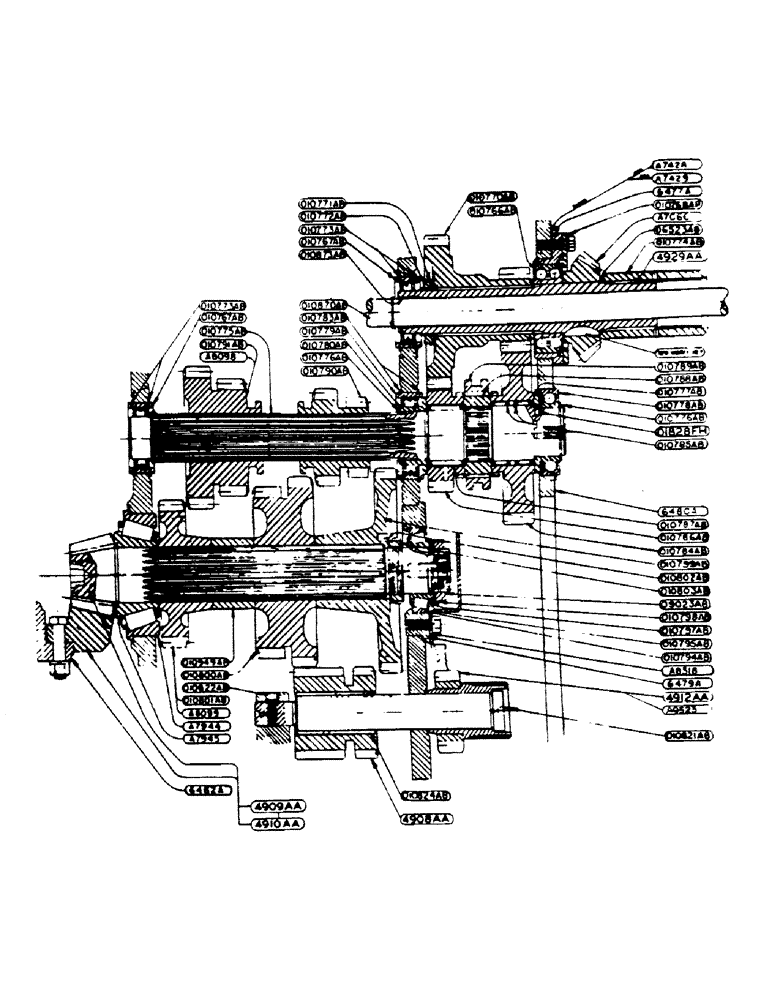

Запчасти Case IH 400-SERIES (118) - TRANSMISSION ASSEMBLY, RANGE DRIVE SHAFT (06) - POWER TRAIN

A7066

PINION - belt pulley drive, on range drive shaft

1шт.

No. 129 Woodruff key

1шт.

A7428

SHIM - for 6477A bearing carrier (.003")

4шт.

A7429

SHIM - for 6477A bearing carrier (.005")

6шт.

A8344

WRENCH - spanner, for 010772AB range drive shaft gear lock nut

1шт.

A9590

GEAR - range drive cluster (special for 3 M.P.H. reverse speed) (see 010770AB)

1шт.

In order to operate a general purpose tractor equipped with a cotton picker in a reverse speed of 3 miles per hour, the following gears are required: (1) A9590 range drive cluster gear. (1) A9591 low range gear.

1шт.

6477A

CARRIER - bearing, range drive shaft, front

1шт.

O6523AB

X

SNAP RING - range drive shaft

1шт.

O10766AB

X

BEARING - range drive shaft, front (new departure #45510)

1шт.

O10767AB

X

BEARING - range drive shaft, rear (Hyatt #1207-TAS)

1шт.

O10768AB

PLATE - range drive shaft front bearing retainer

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

O10770AB

GEAR - range drive cluster (see A9590)

1шт.

O10771AB

X

LOCKWASHER - range drive shaft gear

1шт.

O10772AB

X

LOCK NUT - range drive shaft gear

1шт.

O10773AB

X

SNAP RING - range drive shaft rear bearing

2шт.

O10774AB

COUPLING - range drive shaft, front

1шт.

O10873AB

X

BUSHING - in rear of range drive shaft, for PTO and hydraulic pump drive shaft

1шт.

4929AA

SHAFT - range drive, with 010873AB bushing

1шт.
