(111) - BELT PULLEY SHEAVE ADAPTER SLEEVE ATTACHMENT, LESS PULLEY SPECIAL

Запчасти Case IH 400-SERIES (111) - BELT PULLEY SHEAVE ADAPTER SLEEVE ATTACHMENT, LESS PULLEY SPECIAL (06) - POWER TRAIN

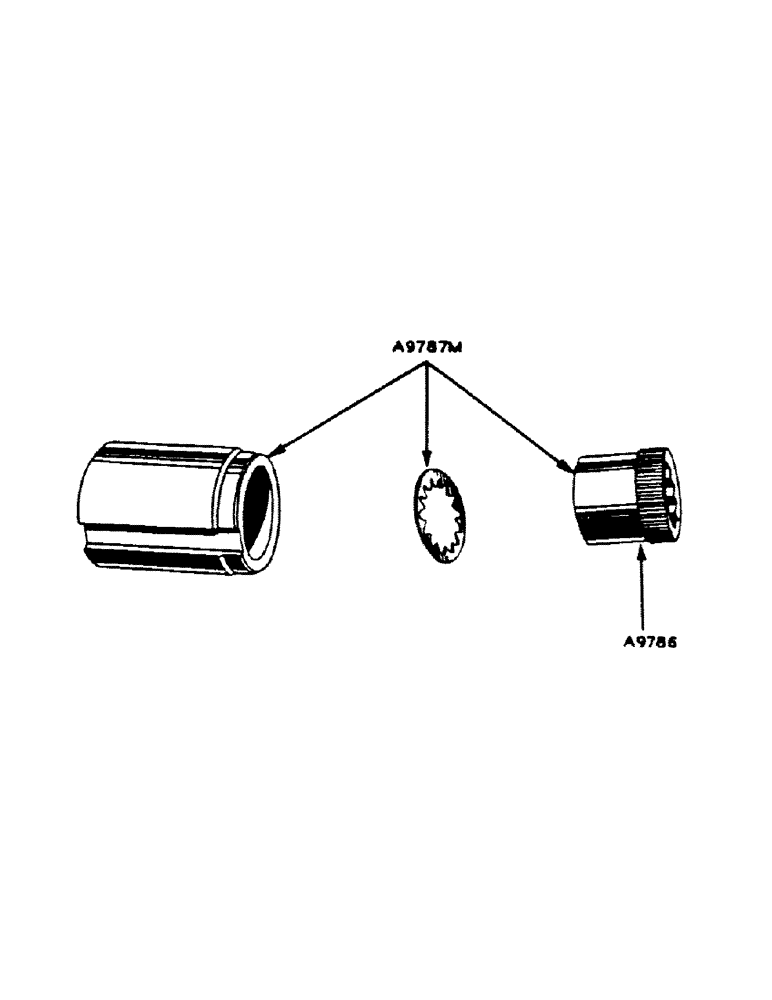

Схема запчастей Case IH 400-SERIES - (111) - BELT PULLEY SHEAVE ADAPTER SLEEVE ATTACHMENT, LESS PULLEY SPECIAL (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9786

NUT - belt pulley adapter socket (1" - 14 N.F. thrd.)

1шт.

1" int. tooth shakeproof lockwasher #1236-00

1шт.

A9787M

SLEEVE - belt pulley adapter, with 1 - A9786 nut and 1-1" int. tooth

1шт.

Shakeproof lockwasher #1236-00 (Machy. Item)

1шт.
