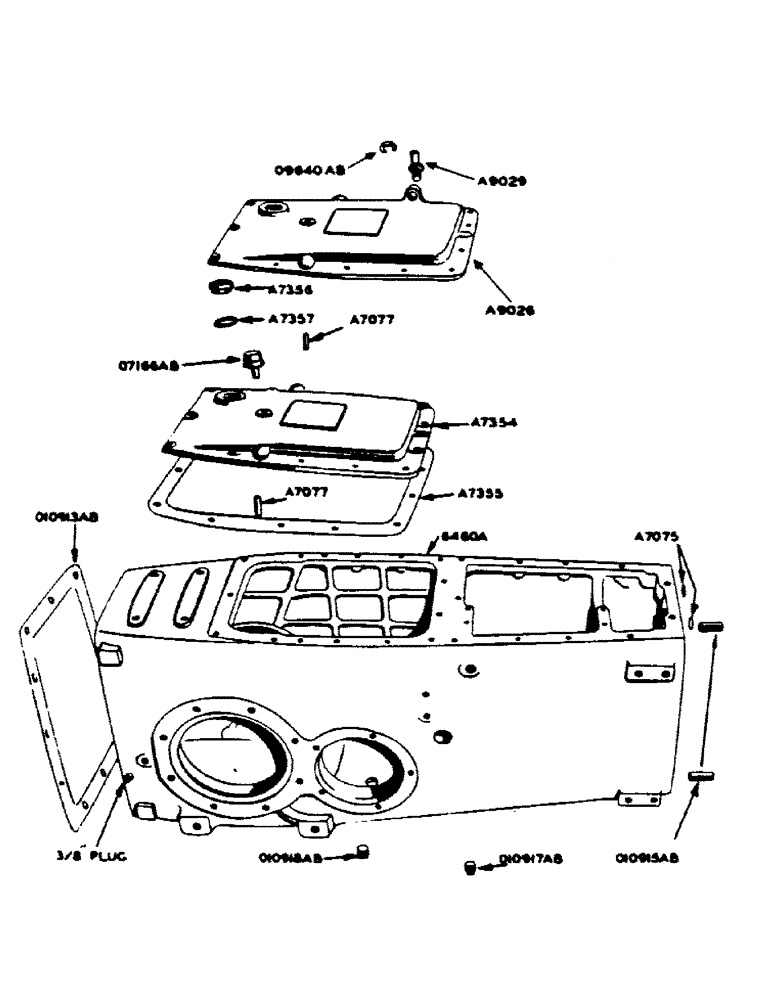

Запчасти Case IH 400-SERIES (110) - TRANSMISSION CASE (06) - POWER TRAIN

A7075

GASKET

GASKET - rubber, for top dowel pin (010915AB) between transmission case and clutch housing

1шт.

A7075

GASKET

GASKET - rubber, transmission case oil transfer hole

1шт.

A7075

GASKET

GASKET - rubber, transmission case front end

1шт.

A7077

DOWEL

PIN - transmission case to A7354 rear top cover

2шт.

A7354

COVER - top transmission case rear (see A9026)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher (std. 4-wheel) tractor)

12шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher (general purpose

10шт.

1/2" x 2" N.C. hex. bolt w/lockwasher (general pupose)

2шт.

A7355

GASKET

- transmission case rear top cover

1шт.

A7356

PLUG

- transmission oil filler

1шт.

A7357

GASKET - transmission oil filler plug

1шт.

A8611

PLUG - for brake cross shaft holes (for orchard models)

2шт.

A8612

STUD - for brake ratchet stud hole (for orchard models)

1шт.

A9026

COVER - top, transmission case rear (for std. 4-wheel tractors with hand clutch) (see A7354)

1шт.

A9830

COVER - transmission case, rear (Special for orchard models not having hydraulic housing)

1шт.

5/8" x 3" N.C. hex. bolt

4шт.

6480A

CASE - transmission

1шт.

3/8" sq. hd. pipe plug

1шт.

O7166AB

X

BREATHER - transmission case

1шт.

O10913AB

X

GASKET - hydraulic housing to transmission case

1шт.

O10915AB

X

DOWEL PIN - transmission case to clutch housing

2шт.

O10917AB

PLUG - sq. hd. pipe, 3/4" Lisle magnetic

1шт.

O10918AB

PLUG - sq. hd. pipe, 1" Lisle magnetic

1шт.
