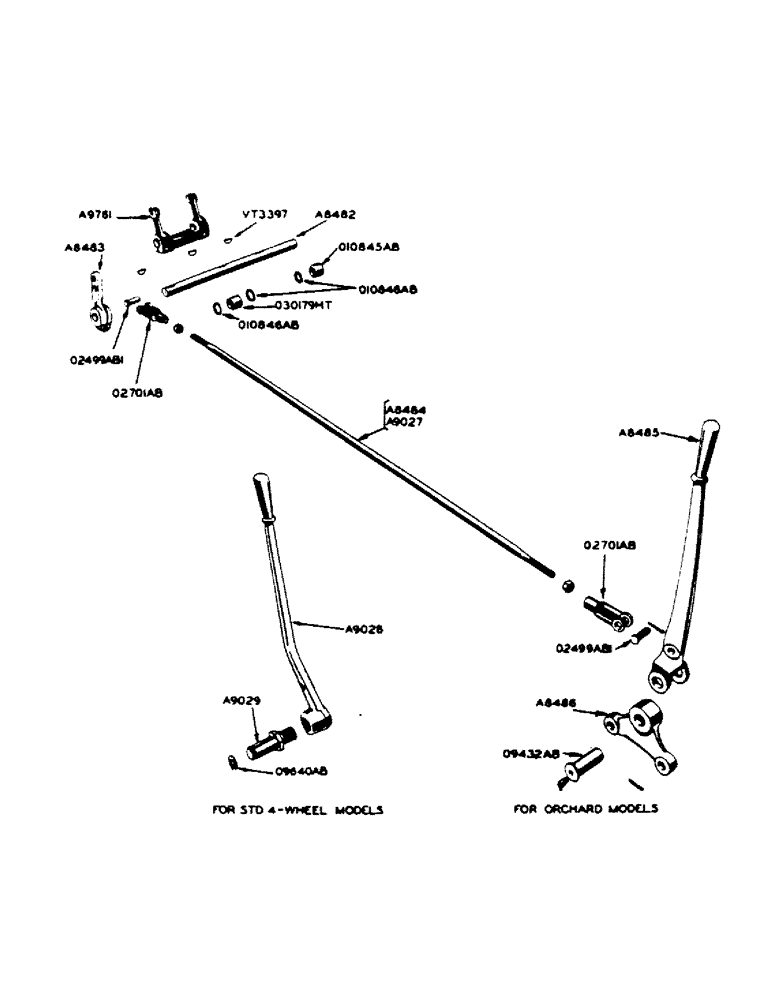

Запчасти Case IH 400-SERIES (109) - ENGINE HAND CLUTCH THROWOUT PARTS, REGULAR FOR ORCHARD AND SPECIAL FOR STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

A8482

SHAFT - clutch throwout

1шт.

A8483

LEVER - clutch throwout

1шт.

1/2" x 2-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

A8484

ROD - clutch throwout (for orchard models (see A9027)

1шт.

1/2" N.F. hex. nut

2шт.

A8485

LEVER - clutch hand (for orchard models) (see A9028)

1шт.

A8486

BRACKET - clutch hand lever mounting (for orchard models)

1шт.

5/8" x 2-3/4" N.C. hex. bolt w/lockwasher

2шт.

A9027

ROD - clutch throwout (for std. 4-wheel models) (see A8484)

1шт.

1/2" N.F. hex. nut

2шт.

A9028

LEVER - clutch had (for std. 4-wheel models) (see A8485)

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A9029

STUD - clutch hand lever (for std. 4-wheel models)

1шт.

A9761

YOKE

- clutch throwout

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

6499A

X

YOKE - clutch throwout (use A9761)

1шт.

O2499AB1

X

PIN - clutch throwout rod yoke end

2шт.

1/8" x 1" cotter pin

2шт.

O2701AB

X

YOKE END - clutch throwout rod

2шт.

O9432AB

PIN - clutch hand lever (for orchard models)

1шт.

5/32" x 1-3/4" cotter pin

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

O9640AB

X

"E" RING - clutch hand lever stud (for std. 4-wheel models)

1шт.

O10845AB

X

BEARING - needle, clutch throwout shaft, closed end (Torrington no. M16161)

1шт.

O10846AB

X

OIL SEAL - clutch throwout shaft

3шт.

O30179HT

X

BEARING - needle, clutch throwout shaft, open end (Torrington no. B1616-OH)

1шт.

VT3397

KEY - for A8482 shaft (Woodruff #15 hardened)

3шт.
