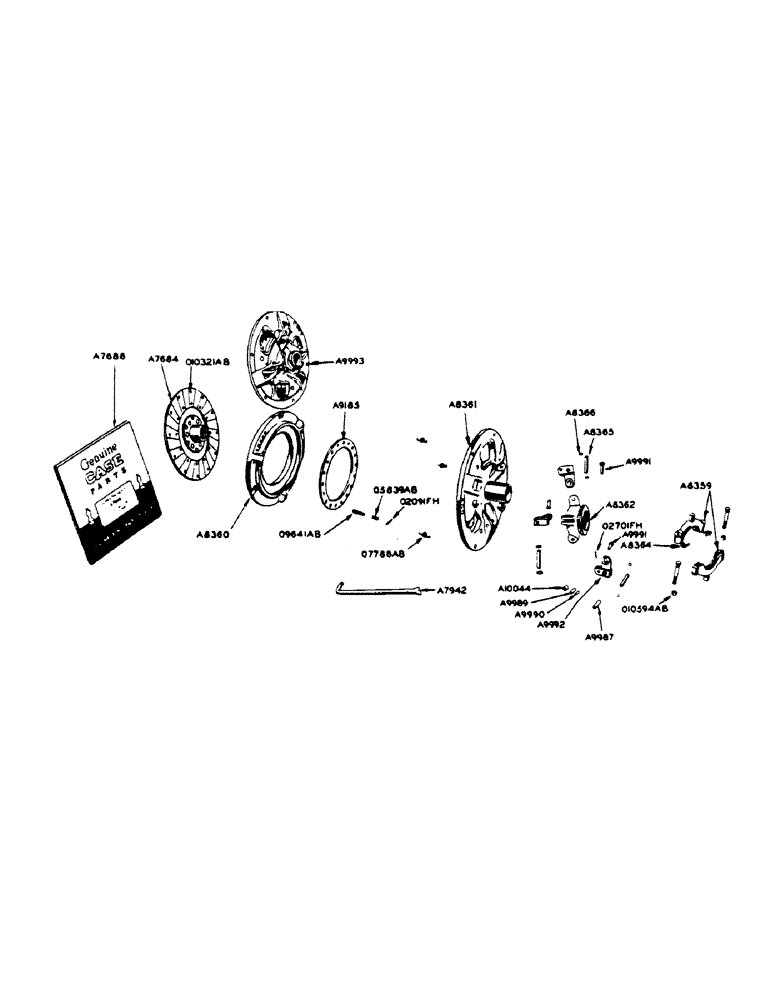

Запчасти Case IH 400-SERIES (108) - ENGINE HAND CLUTCH, REGULAR FOR ORCHARD AND SPECIAL FOR STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

A7684

X

PLATE - clutch driving, with facing

1шт.

A7688

FACINGS - set of clutch, with rivets (consists of two facing with 24-010321AB rivets)

1шт.

A7942

TOOL

BAR - clutch adjusting

1шт.

A8359

COLLAR - sliding sleeve, complete (Consists of 2 half collars, 2-010594AB stop nuts, 2-A8364, shims, 2-3/8" x 2-1/2" N.F. hex bolts and 1-1/8" str. Lincoln fitting)

1шт.

A8360

PLATE - clutch pressure

1шт.

A8361

PLATE - clutch cover

1шт.

1 2" x 1-1/4" N.C. hex. bolt w/lockwasher

6шт.

A8362

SLEEVE - clutch sliding

1шт.

A8363

COLLAR - with pipe tap (use A8359)

1шт.

A8364

SHIM - sliding sleeve collar

2шт.

A8365

PIN - clutch lever pivot

3шт.

A8366

X

SNAP RING - for A8365 pin

1шт.

A8366

X

SNAP RING - for A8372 clutch lever guide pin (use A9991 pin with cotter)

1шт.

A8367

CLUTCH COMPLETE - less driving plate (use A9993)

1шт.

A8372

X

PIN - clutch lever guide (use A9991 pin with 1 - 3/32" x 5/8" cotter pin)

1шт.

A8559

COLLAR - without pipe tap (use A8359)

1шт.

A9185

RING - clutch adjusting (18 holes)

1шт.

A9987

BUSHING

- clutch pressure plate lever

3шт.

A9989

BUSHING

- clutch pressure plate lever roller

3шт.

A9990

SPARE PART

PIN - clutch pressure plate lever roller

3шт.

A9991

PIN

- clutch pressure plate lever guide

3шт.

3/32" x 5/8" cotter pin

3шт.

A9992

SPARE PART

LEVER - clutch pressure plate, assembly (consists of 1-clutch lever with A9987 bushing, 1-A10044 roller, 1-A9990 pin and 1-02701FH roll pin)

3шт.

A9993

VACUUM GAUGE

CLUTCH COMPLETE - less driving plate

1шт.

A10044

ROLLER

- clutch pressure plate lever, with A9989 bushing

3шт.

O5839AB

X

SPRING - clutch adjusting ring lock pin

1шт.

O7788AB

SPRING

- clutch release

3шт.

O9006AB

ROLLER - for 4102AA lever

3шт.

O9008AB

RING - clutch adjusting (15 holes) (Use A9185)

1шт.

O9641AB

LOCK PIN - clutch adjusting ring

1шт.

O10321AB

RIVET

- clutch facing

24шт.

O10594AB

X

STOP NUT - sliding sleeve collar (3/8" - 24 N.F. thrd.)

2шт.

O2091FH

X

ROLL PIN - clutch adjusting ring lock pin (1/8" x 1-1/4")

1шт.

O2701FH

X

ROLL PIN - clutch pressure plate lever pin (A9990) (3/32" x 3/4")

3шт.

4102AA

LEVER - clutch (use 3 - A9992 and 3 - A9991 guide pins)

1шт.
