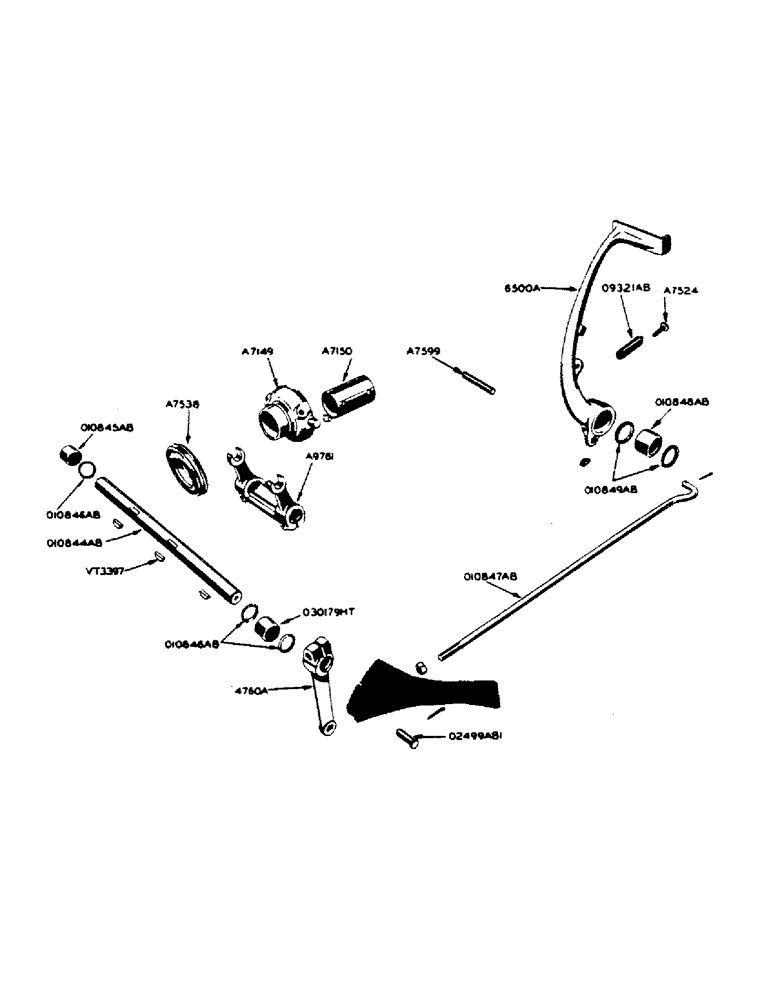

Запчасти Case IH 400-SERIES (106B) - CLUTCH THROWOUT PARTS, FOR FOOT OPERATED CLUTCH (06) - POWER TRAIN

A7149

SLEEVE

- clutch release

1шт.

1/8" str. Lincoln fitting No. 5000

1шт.

A7150

TUBE

- clutch release sleeve

1шт.

A7524

SCREW - clutch pedal return spring (in platform)

1шт.

3/8" x 1-1/4" N.C. hex. bolt with lockwasher

2шт.

4760A

LEVER - clutch throwout

1шт.

1/2" x 2" N.F. hex. bolt with hex. nut and lockwasher

1шт.

6499A

X

YOKE - (Use A9761)

1шт.

6500A

PEDAL - clutch

1шт.

1/8" - 90 degree Lincoln fitting No. 5400

1шт.

O2499AB1

X

PIN - clutch throwout rod yoke

1шт.

1/8" x 1" cotter pin

1шт.

O2701AB

X

YOKE - clutch throwout rod

1шт.

O9321AB

X

SPRING - clutch pedal return

1шт.

O10844AB

SHAFT - clutch throwout

1шт.

O10845AB

X

BEARING - needle, clutch throwout shaft, closed end (Torrington No. M16161)

1шт.

O10846AB

X

OIL SEAL - clutch throwout shaft

3шт.

O10847AB

ROD - clutch throwout

1шт.

1/2" N.F. hex. nut

1шт.

1/8" x 1" cotter pin

1шт.

O10848AB

X

BEARING - needle, clutch pedal (Torrington No. B2420-OH)

1шт.

O10849AB

X

OIL SEAL - clutch pedal

2шт.

O30179HT

X

BEARING - needle, clutch throwout shaft, open end (Torrington No. B1616-OH)

1шт.

VT3397

KEY - for 010844AB shaft (Woodruff #15 hardened)

3шт.
