Запчасти Case IH 400-SERIES (006[B]) - DEPTH ADJUSTING SCREW. USE FIG. 219 WITH THE EXCEPT. LISTED ON THIS FIG. (06) - POWER TRAIN

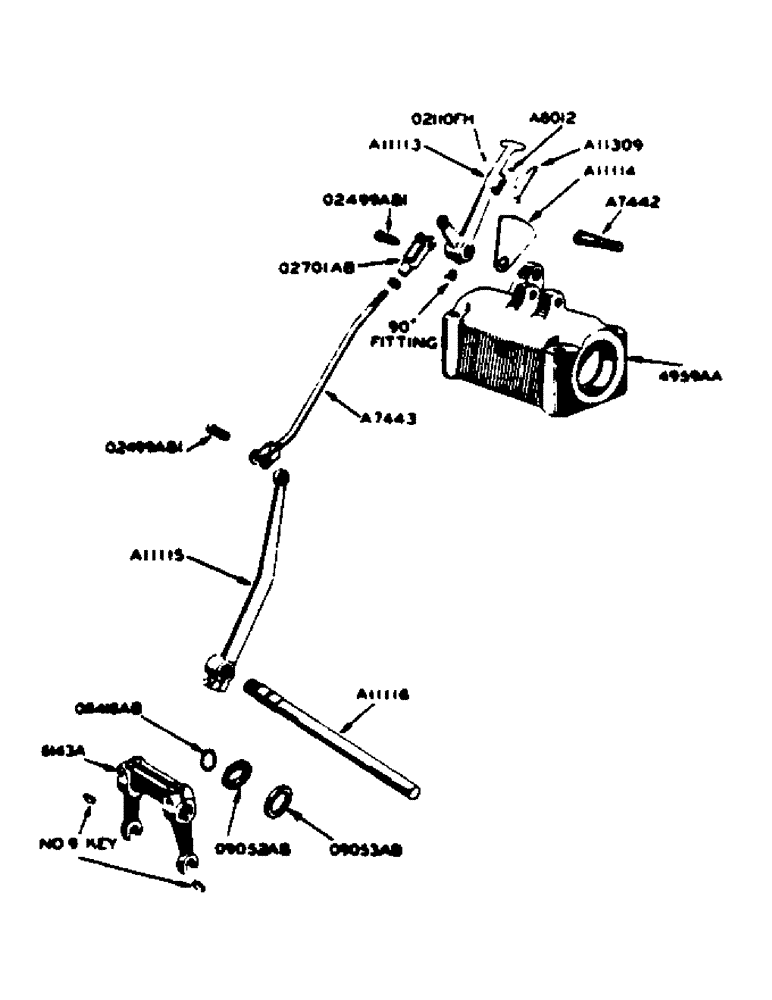

Схема запчастей Case IH 400-SERIES - (006[B]) - DEPTH ADJUSTING SCREW. USE FIG. 219 WITH THE EXCEPT. LISTED ON THIS FIG. (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A9431

BRACKET - depth adjusting screw and breather mounting (for high clearance tractors) (serial #8106131 and after)

1шт.

1/2" x 2-1/2" N.C. hex. bolt w/lockwasher

1шт.

1/2" x 3" N.C. hex bolt w/lockwasher

2шт.

Выбрано товаров: 3
