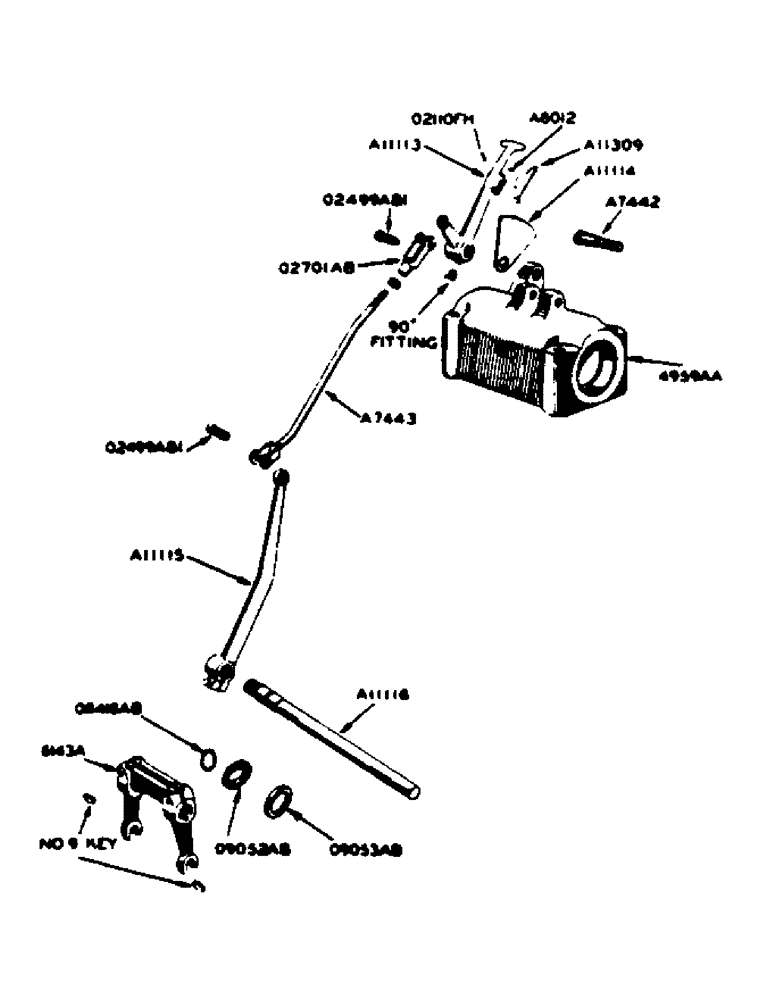

Запчасти Case IH 400-SERIES (006[A]) - PTO CLUTCH CONTROL PARTS, USE FIG. 200 WITH THE EXCEPT. LISTED ON THIS FIG. (06) - POWER TRAIN

A7442

PIN - PTO cluch hand lever mounting

1шт.

5/8" N.F. hex. jam nut

1шт.

5/8" std. lockwasher

1шт.

A8012

SPRING

- PTO clutch hand lever latch

1шт.

A11113

LEVER - PTO clutch hand (replaces 09198AB1)

1шт.

1/8" Lincoln fitting no. 5400

1шт.

A11114

PLATE - PTO clutch hand lock

1шт.

A11115

LEVER - PTO clutch control cross shaft (replaces A8674)

1шт.

5/16" x 1-1/8" N.C. hex bolt w/lockwasher

1шт.

A11116

SHAFT - PTO clutch throwout (replaces 4923AA and A8673)

1шт.

No. 9 Woodruff key

2шт.

A11309

SELECTOR

LATCH AND CLIP - PTO clutch hand lever

1шт.

6143A

X

YOKE - PTO clutch throwout

1шт.

5/16" x 1-1/4" N.C. hex bolt w/lockwasher

2шт.

O2499AB1

X

PIN - yoke and, 2-09301AB rod and 2 for hand lever control

4шт.

1/8" x 1" cotter pin

4шт.

O2701AB

X

YOKE END - clutch throwout rod

1шт.

O8416AB

X

"O" RING - 1 for 4923AA and 2 for A8673 shafts

3шт.

O9052AB

X

WASHER - felt, for 4923AA and A8673 shafts

2шт.

O9053AB

X

RETAINER - for 09052AB felt washer

2шт.

O2110FH

X

ROLL PIN - (3/16" x 3/4", Serial Range: A11309-A11113

1шт.
