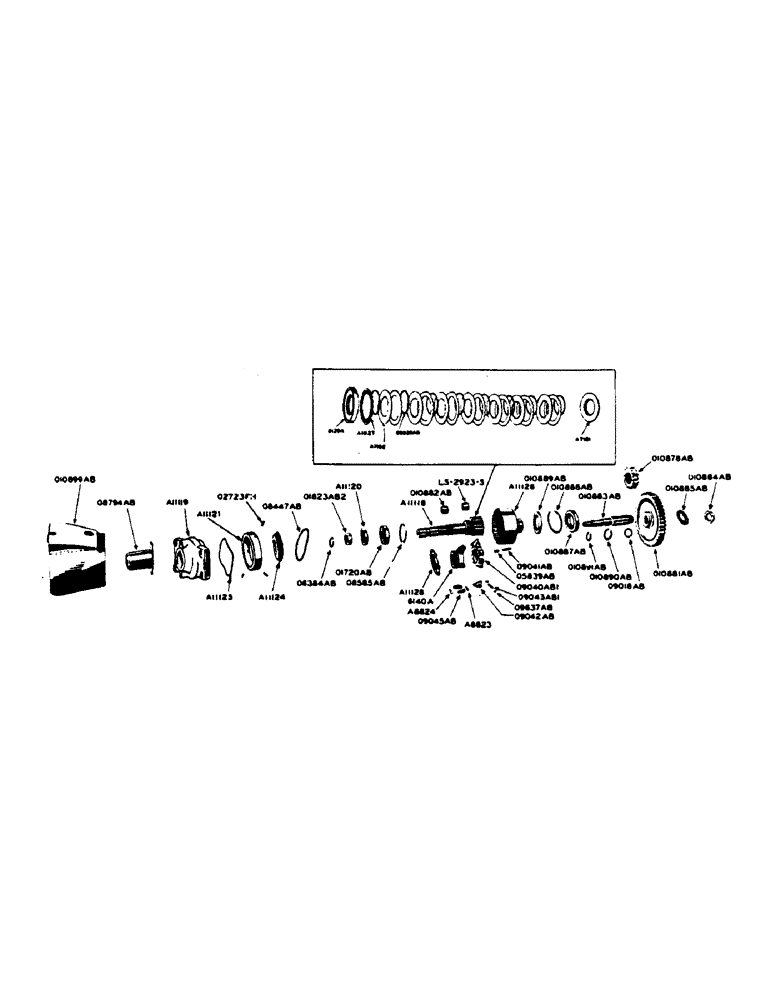

Запчасти Case IH 400-SERIES (005) - PTO CLUTCH WITH BRAKE, USE FIG. 198 WITH THE EXCEPT. LISTED ON THIS FIG. (06) - POWER TRAIN

A7101

PLATE

- PTO clutch backing (replaces A9334)

1шт.

A11117

COLLAR - PTO clutch throwout (use A11128)

1шт.

A11118

SHAFT - PTO (replaces 010880AB)

1шт.

A11119

CARRIER - PTO shaft bearing (replaces 6505A)

1шт.

5/6" x 1/2 N.C. hex bolt

2шт.

5/6" shakeproof external-internal lockwasher

2шт.

A11120

SEAL

- PTO shaft (replaces 03899AB)

1шт.

A11121

RING

- PTO brake

1шт.

A11124

DISC

- brake (includes bonded lining)

1шт.

A11125

VALVE SPRING

SPRING - PTO brake, wave

1шт.

A11126

DRUM - PTO clutch (replaces 010886AB)

1шт.

O9043AB1

X

PIN - PTO clutch finger (replaces 4489AA)

3шт.

A11127

PLATE

- PTO clutch drive (replaces 09037AB1)

8шт.

A11128

COLLAR

- PTO clutch throwout (consists of collar with 2-#14-532 5/16" x 3" N.F. hex. bolts and 2-010837AB stop nuts (replaces 4259AA)

1шт.

O2723FH

X

ROLL PIN - (3/16" x 1/2") (for A11119 bearing carrier)

3шт.
