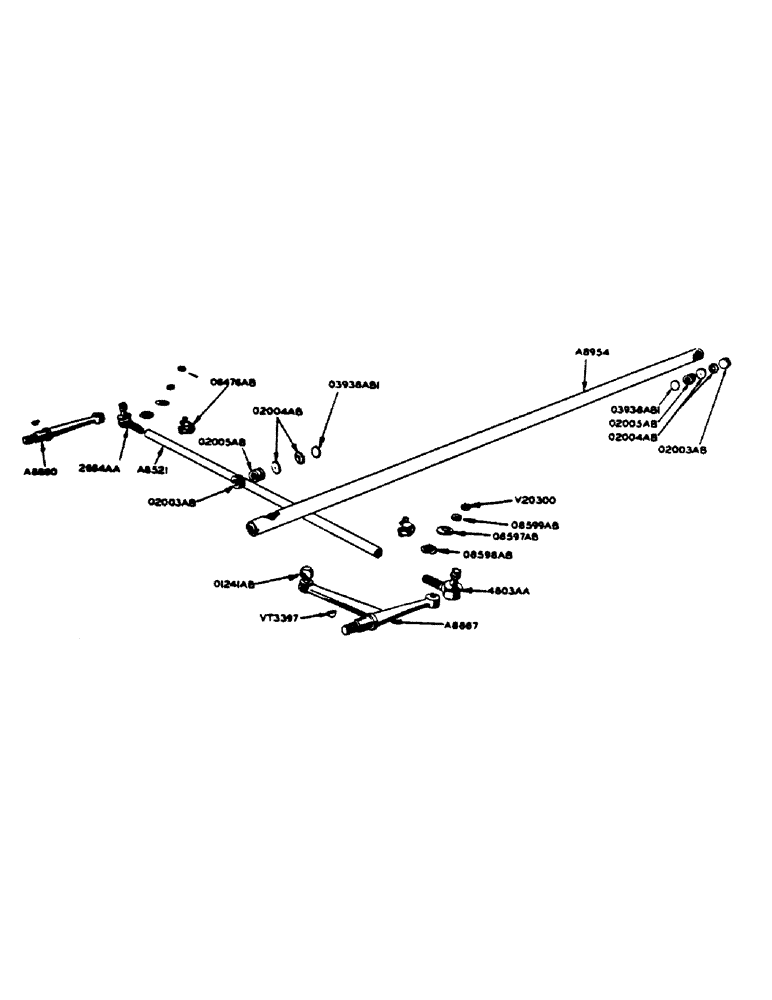

Запчасти Case IH 400-SERIES (188) - STEERING ARMS, TIE ROD AND DRAG LINK, FOR ORCHARD TRACTORS (05) - STEERING

A8521

TUBE - tie rod (38" long)

1шт.

A8860

ARM - steering spindle, R.H.

1шт.

7/8" N.F. hex. nut

1шт.

7/8" std. lockwasher

1шт.

A8867

ARM - steering spindle, L.H. with 01241AB ball

1шт.

7/8" N.F. hex. nut

1шт.

7/8" std. lockwasher

1шт.

A8954

LINK - steering drag, complete with springs and bearings

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

O1241AB

BALL - for L.H. steering arm

1шт.

O2003AB

X

SCREW - adjusting drag link

2шт.

1/8" x 2" cotter pin

2шт.

O2004AB

BEARING - drag link

4шт.

O2005AB

X

SPRING - drag link

2шт.

O3938AB1

X

SEAT - drag link

2шт.

O6476AB

X

CLAMP - tie rod tube, with 3/8" x 1-3/4" N.F. hex. bolt, hex. nut and lockwasher

2шт.

O8597AB

X

COVER - dust, lower

2шт.

O8598AB

X

WASHER - dust cover upper

2шт.

O8599AB

X

SEAL - dust cover, rubber

2шт.

V20300

OPERATOR MANUAL

NUT - slotted hex.

2шт.

1/8 x 1" cotter pin

2шт.

VT3397

KEY - for A8860 and A8867 arms (Woodruff #15 hardened)

2шт.

2664AA

X

END - tie rod tube, R.H.

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

4803AA

X

END - tie rod tube, L.H.

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.
