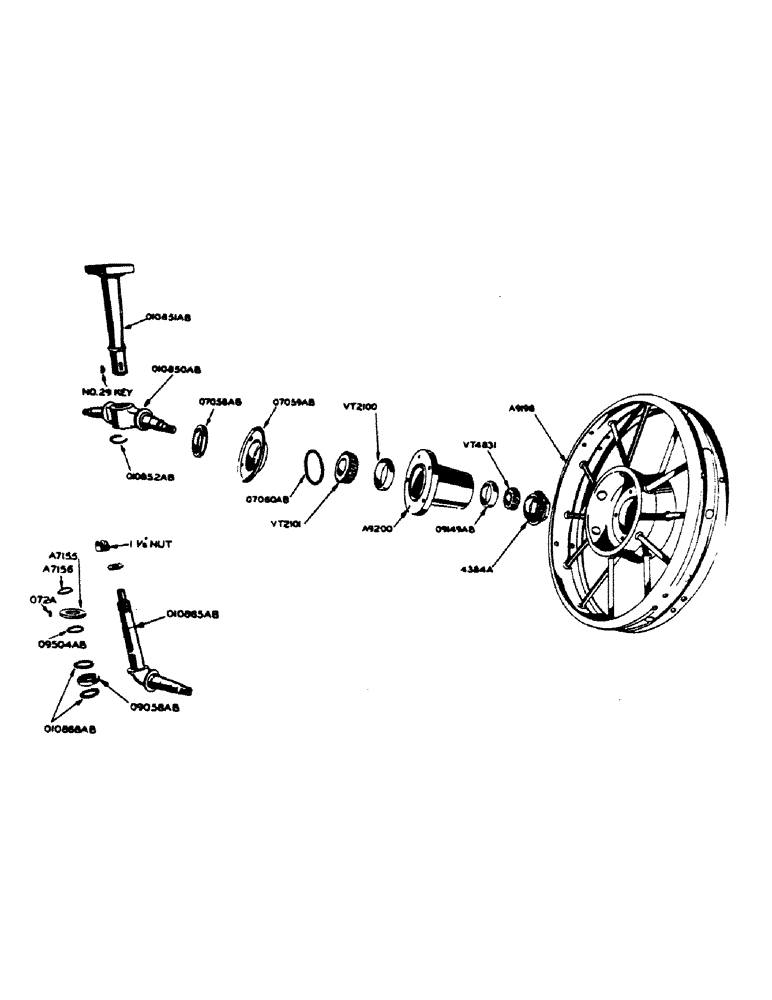

Запчасти Case IH 400-SERIES (165) - STEERING FRONT WHEEL AND SKID RING, FOR GENERAL PURPOSE AND STANDARD FOUR WHEEL TRACTORS (05) - STEERING

A9198

WHEEL- front, steel (5" x 28")

2шт.

1/2" x 2" N.C. hex. bolt with lockwasher

10шт.

A9199

HUB - (use A9200)

1шт.

A9200

HUB - front wheel with 09149AB and VT2100 bearing cups

2шт.

O9149AB

X

CUP - front wheel outer bearing (Timken no. 25820)

2шт.

VT2100

X

CUP - front wheel inner bearing (Timken no. 25520)

2шт.

VT2101

X

CONE - front wheel inner bearing (Timken no. 25580)

2шт.

VT4831

X

CONE - front wheel outer bearing (Timken no. 25877)

2шт.

O1781AB

RING - skid, front wheel (1-1/2" high, half ring, 2 required per wheel) (see 466AA), steel

4шт.

1/2" x 1-1/4" N.C. mach. bolt w/hex. nut and lockwasher, skid ring, for steel front wheels

16шт.

466AA

RINGS - set of front wheel skid, 1-1/2" high (set consists of 4 - 01781AB rings, 16 - 1/2" x 1-1/4" mach. bolts with hex. nut and lockwashers) (Machy, item), steel

1шт.
