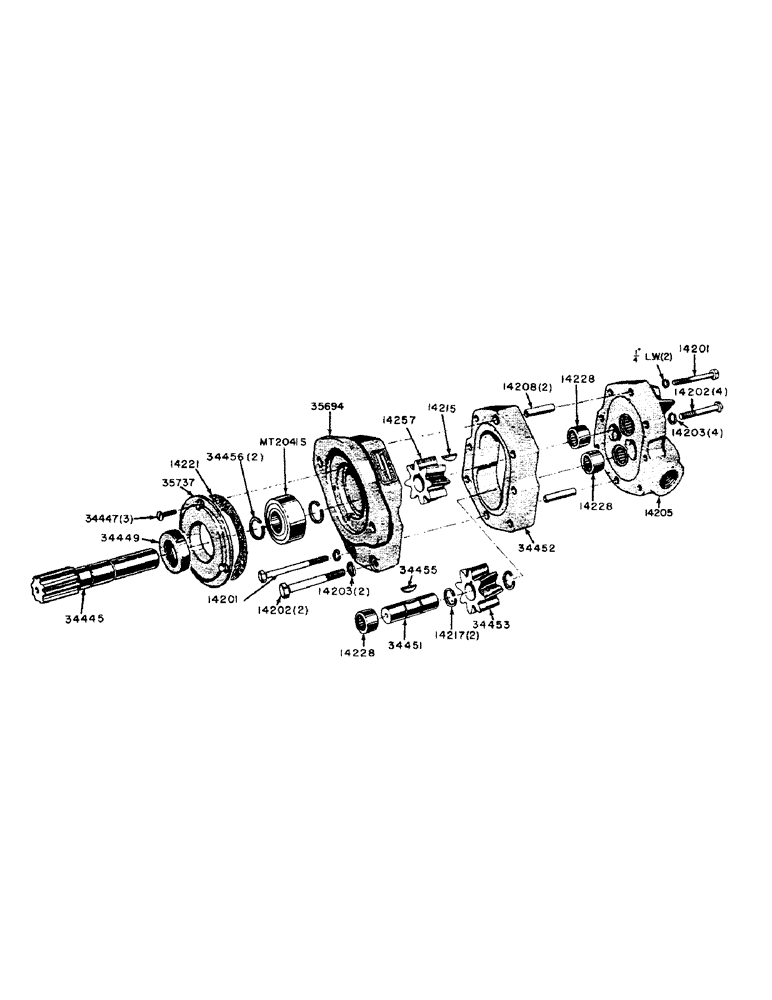

Запчасти Case IH 320 (115) - PARTS FOR 31615 HYDRAULIC PUMP (09) - CHASSIS/ATTACHMENTS

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

- body, gear plate and cover Hex, 1/4"-20 x 2 1/2", G5

2шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (92-4) (14204)

2шт.

14203

SCREW

LOCKWASHER - gear plate screw (5/16")

6шт.

14205

SCREWDRIVER

COVER - front (Includes 2-14228 needle bearings)

1шт.

NLS

NO LONGER SERVICED

PIN - dowel, gear plate

2шт.

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

drive gear to shaft #7, 1/8" x 3/4", HT

1шт.

14217

RING

SNAP RING - retaining, idler gear

2шт.

14221

GASKET

- pilot, Serial Range: plate-body

1шт.

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle, drive shaft and idler shaft (Torrington #B1212)

3шт.

14257

GEAR-SET

GEAR - drive

1шт.

NLS

NO LONGER SERVICED

SHAFT - drive

1шт.

34447

X

SCREW - machine, flat head, pilot, Serial Range: plate-body

3шт.

34449

OIL SEAL

- drive shaft

1шт.

34451

SHAFT - idler gear

1шт.

34452

PLATE - gear

1шт.

34453

HEATER PLUG

GEAR - idler

1шт.

34455

HOOK

KEY (Woodruff) idler, Serial Range: gear-shaft

1шт.

34456

X

SNAP RING - retaining, ball bearing

2шт.

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

BODY - pump (Includes 2-14228 needle bearings)

1шт.

35737

LEVER

PLATE - pilot (Includes 14221 gasket and 34490 oil seal)

1шт.

MT2041S

BEARING

- ball, drive shaft (ND #5204)

1шт.
