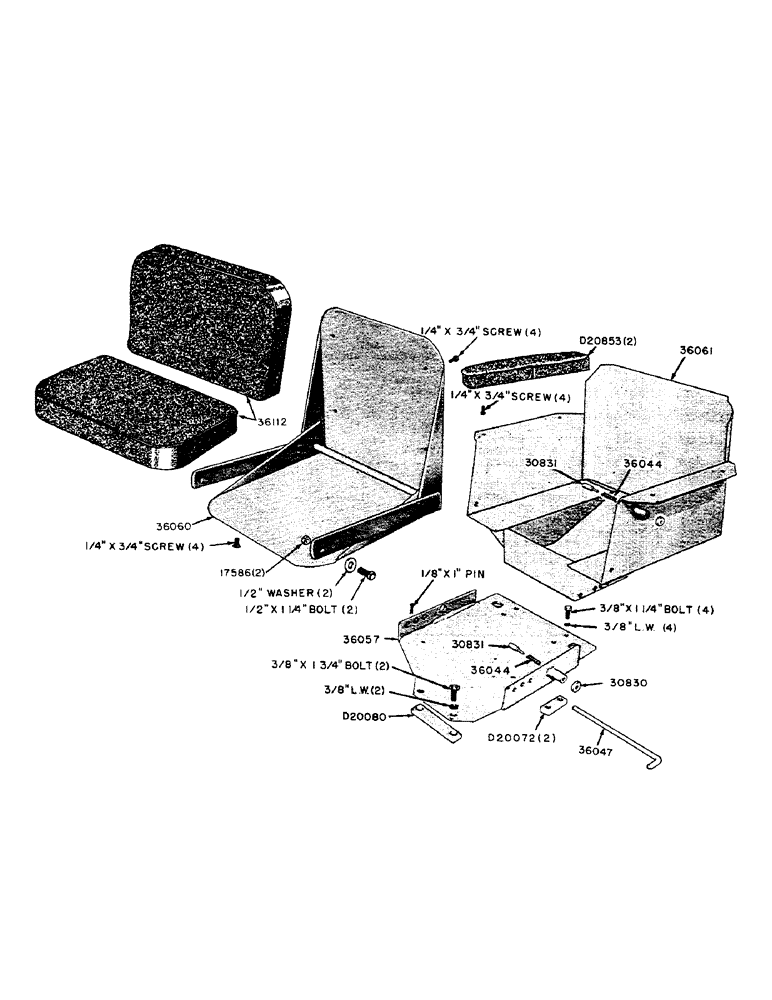

Запчасти Case IH 320 (112) - OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

17586

NUT - lock, seat frame bolt

2шт.

30830

CAP - lock, pin

2шт.

30831

PIN - lock, seat assembly

2шт.

36044

SOCKET

SPRING - seat lock pin

2шт.

36047

PIN - seat adjusting

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

36057

BEARING CONE,38.11mm ID x 19.05mm W

BRACKET - seat mounting (Includes lock assembly)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" NC hex. hd. bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC hex. hd. bolt w/lockwasher

2шт.

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

FRAME - seat (Includes pivot bar)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" NF hex. hd. bolt w/plain washer

2шт.

36061

SEAT ASSEMBLY (Includes lock assembly)

1шт.

36112

CUSHION - seat

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" flat hd. mach. screw

8шт.

D20072

SPACER - rear, seat mounting bracket

2шт.

D20080

SPACER - front, seat mounting bracket

1шт.

D20853

CUSHION - arm rest

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" flat hd. mach. screw

4шт.
