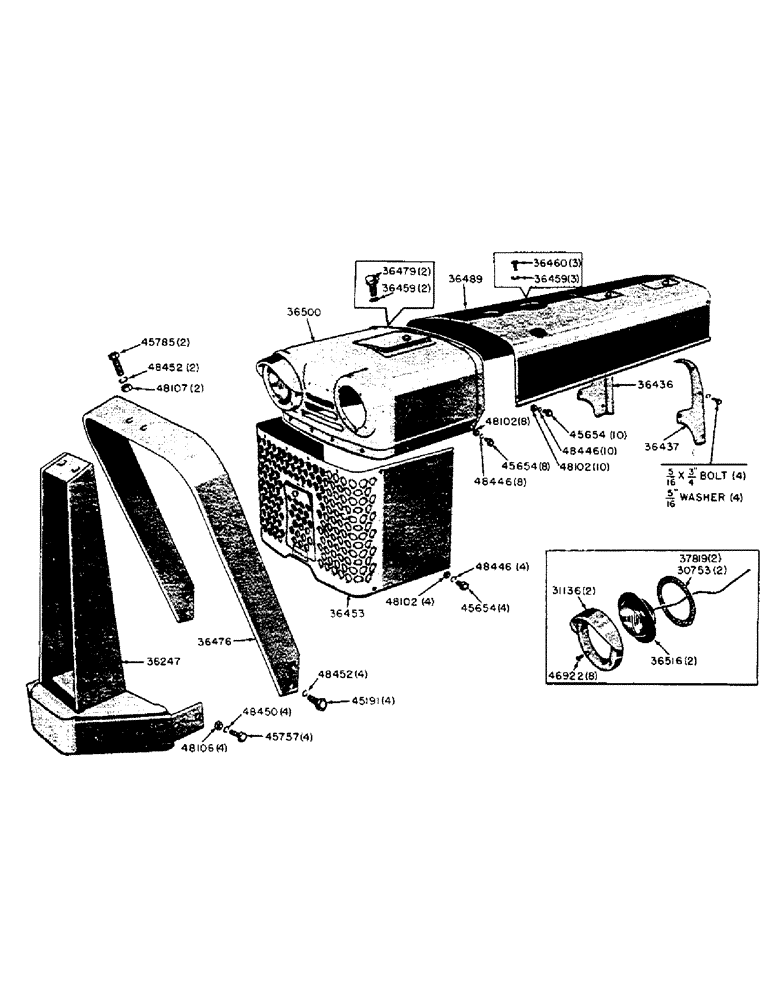

Запчасти Case IH 320 (107) - RADIATOR GUARD AND ENGINE HOOD (09) - CHASSIS/ATTACHMENTS

*

NLS

NO LONGER SERVICED

GASKET - head lamp mounting

2шт.

*

31136

RING - mounting, head lamp

2шт.

*

36247

PIN

BUMPER - front

1шт.

*

36436

SPACER

PLATE - filler, R.H., hood and instrument panel

1шт.

*

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex. hd. cap screw w/plain washer

2шт.

*

36437

PLATE - filler, L.H., hood and instrument panel

1шт.

*

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex. hd. cap screw w/plain washer

2шт.

*

36453

GUARD - radiator, includes 36479 screw and 36459 washer

HOOK

1шт.

*

36459

WASHER - retainer, fastener screw

SPARE PART

5шт.

*

36476

PLATE - rub, radiator guard

1шт.

*

36479

CABLE

SCREW - fastener, radiator guard and shroud

2шт.

*

36489

HOOD - engine, includes 3 - 36460 screw and 3 - 36459 washer

1шт.

*

36500

STEERING AXLE

SHROUD - front, includes 36479 screw and 36459 washer

1шт.

*

36516

X

LAMP - head, R.H. and L.H.

2шт.

*

45191

X

CAP SCREW - rub bar to sub frame (3/4" x 3-1/2" N.C. hex. hd.)

4шт.

*

NSS

NOT SOLD SEPARAT

3/4" lockwasher

4шт.

*

45654

X

CAP SCREW - radiator guard to sub frame (3/8" x 3/4" N.F. hex. hd.)

4шт.

*

NSS

NOT SOLD SEPARAT

3/8" N.F. hex. nut and lockwasher

4шт.

*

45654

X

CAP SCREW - shroud to radiator guard (3/8" x 3/4" N.F. hex. hd.)

8шт.

*

NSS

NOT SOLD SEPARAT

3/8" N.F. hex. nut and lockwasher

8шт.

*

45654

X

CAP SCREW - hood mounting (3/8" x 3/4" N.F. hex. hd.)

10шт.

*

NSS

NOT SOLD SEPARAT

3/8" N.F. hex. nut and lockwasher

10шт.

*

45757

CAP SCREW - front bumper to sub frame (5/8" x 1-1/2" N.F. hex. hd.)

4шт.

*

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

4шт.

*

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

CAP SCREW - rub bar to bumper (3/4" x 2" N.F. hes. hd.)

2шт.

*

NSS

NOT SOLD SEPARAT

3/4" N.F. hex. nut and lockwasher

2шт.

*

73-424

BOLT (MACHINE)

SCREW - machine, head lamp mounting ring (1/4" x 1-1/2" ctsk. hd.)

8шт.

*

48102

MOUNTING PARTS

NUT - hex. (3/8" N.F.)

22шт.

*

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

NUT - hex., for 45757 bolt (5/8" N.F. hex.)

1шт.

*

48107

X

NUT - hex., for 45785 bolt (3/4" N.F. hex.)

2шт.

*

80680

LOCK WASHER,3/8 0.381 CST ZND

22шт.

*

48450

FRONT AXLE

LOCKWASHER (5/8")

4шт.

*

48452

X

LOCKWASHER (3/4")

6шт.
